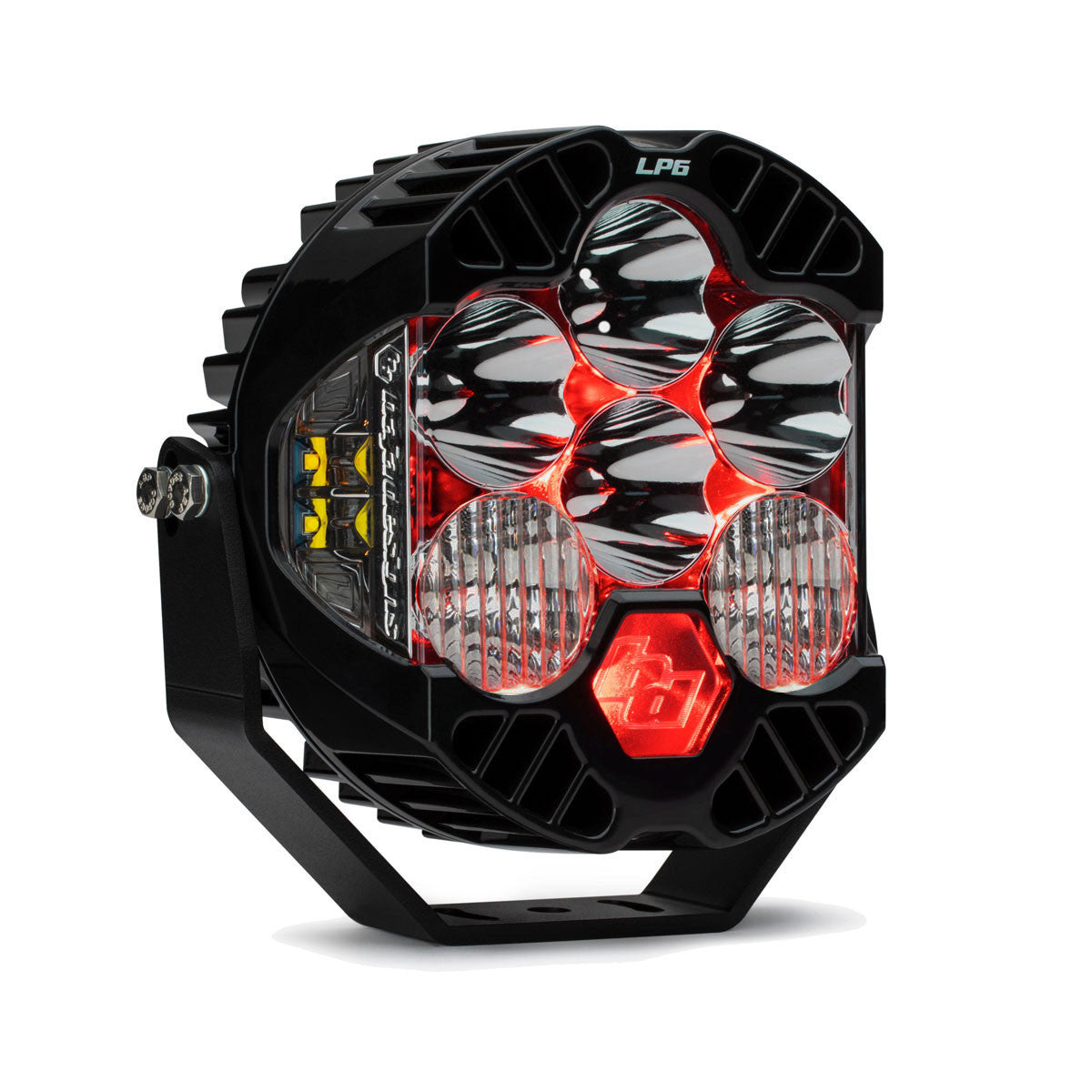

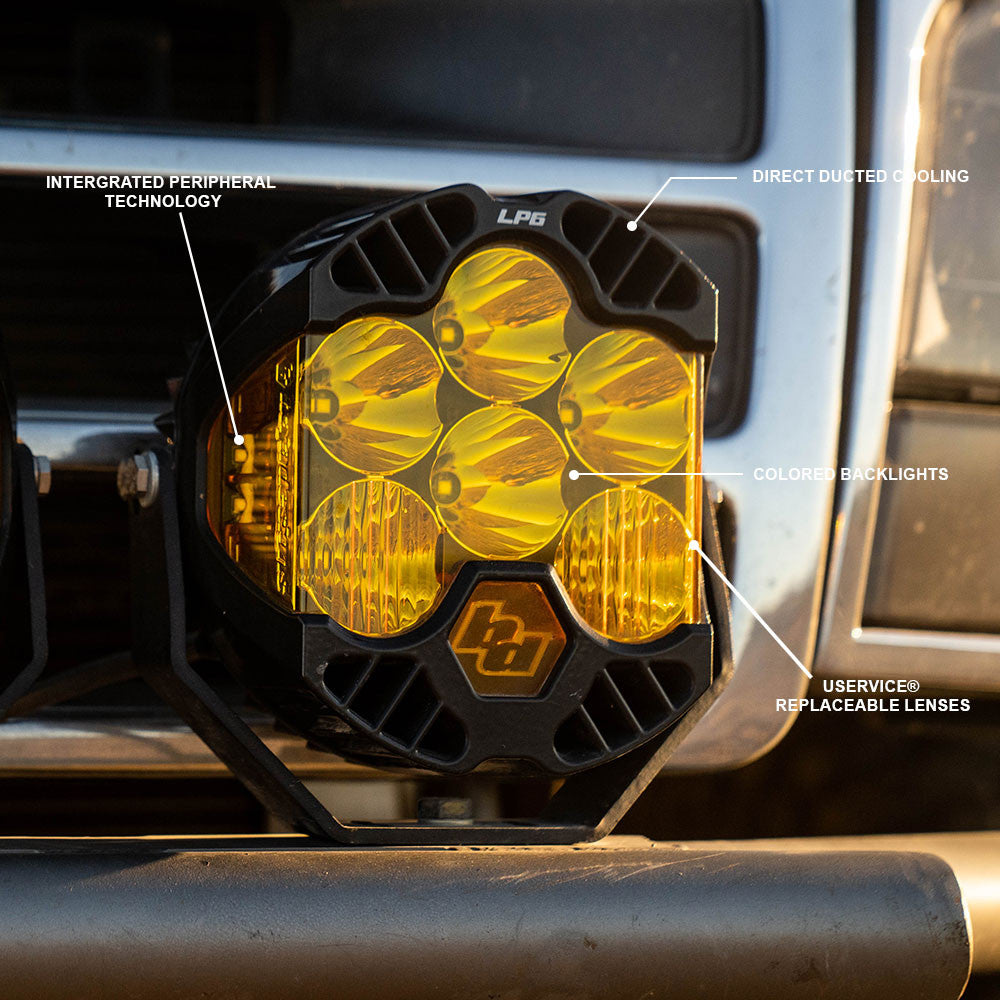

The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs.
The LP6 Pro is available in multiple patterns to suit your needs. The Driving/Combo pattern provide maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

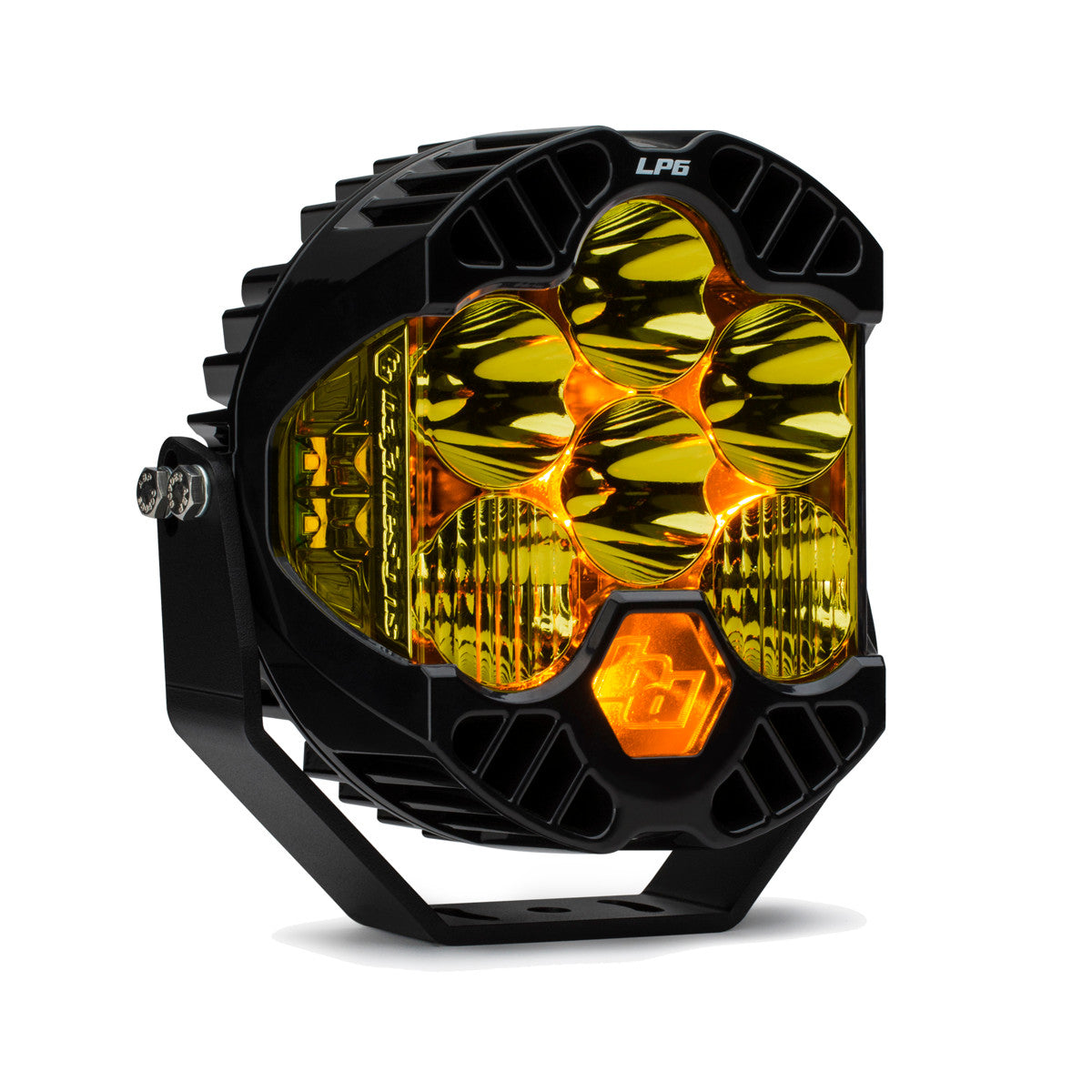

The addition of red, blue, or green backlight options alongside our original amber on the LP6 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
NOTE:This light does not come with a wiring harness. Add Part# BAJ640167
Disclaimer:Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Satisfaction Guarantee – 30-Day Money Back Guarantee
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
Depth (in.)
3.200
Height (in.)
6.500
Length (in.)
6.500
Weight (lbs.)
4.200
Specifications
Amperage Rating (A)
7.500
Average Rated Life (hr.)
49,930
Backlight Amperage Rating (A)
0.300
Backlight Wattage (W)
4.140
Beam Pattern
Spot
Bezel Material
Billet Machined Aluminum
Brightness (Lumens)
11225
Description
Spot; Clear
Housing Color
Black
Housing Material
Hard Anodized Machined Aluminum
Lens Color
Clear
Lens Material
Hardcoated Polycarbonate
Light Quantity
1
Lighting Modes
High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity
6
Lighting Technology
LED
Lighting Type
Forward Projecting
Mounting Hardware Included
Yes
Mounting Hardware Material
Stainless Steel
Overvoltage Protection
Built-In
Product Type
LP6 Pro LED Light Pod
Secondary Amperage Rating (A)
1.000
Secondary Brightness (Lumens)
1972
Secondary Light Quantity
4 LEDs
Secondary Lighting Technology
LED
Secondary Lighting Type
Integrated Peripheral Technology (IPT)
Secondary Wattage (W)
15
Terminal Connector
DT06-4S Deutsch
Terminal Type
Mating Connector
Universal or Specific
Universal
Wattage (W)
103.500
Wiring Harness Included
No
Standards & Compliance
Standards/Compliance (Durability)
Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)
IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)
IP69K (Waterproof up to 9ft & Pressure Washable)
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
