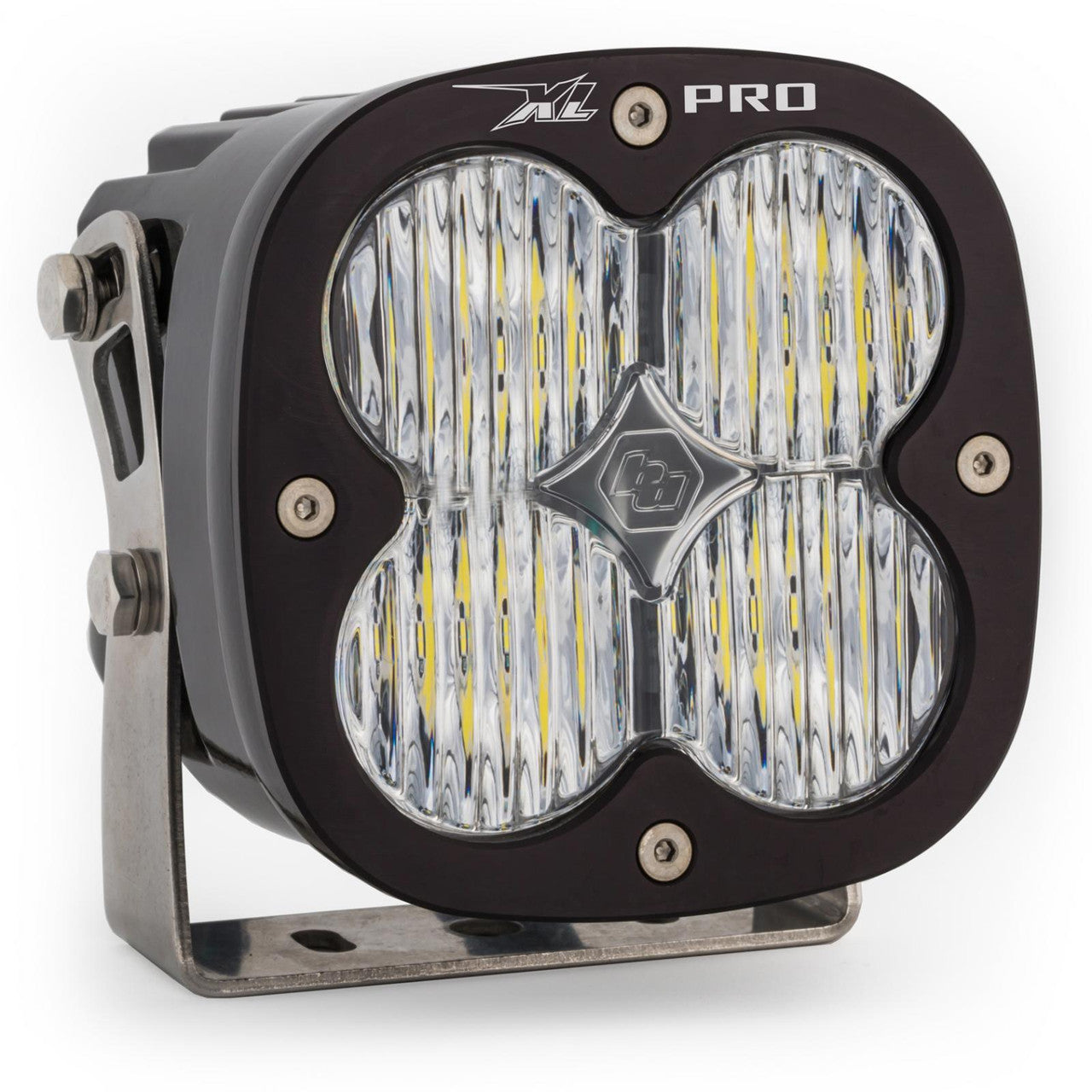

The Baja Designs XL Pro auxiliary light makes it easy to illuminate the terrain in front of your vehicle and is perfect for enthusiasts that need a vast amount of light in a versatile package. The XL Pro uses Baja Designs' trademarked high-speed spot reflectors providing for a longer and wider beam pattern with our next-generation LED technology that provides 65% greater distance over our previous generation model while pushing 4,095 raw lumens per light. The XL Pro is highly durable and offers a 20 percent dimming feature, making it the perfect auxiliary light for off-road vehicles such as trucks, vans, UTVs, and motorcycles. This single light kit comes with XL mounting hardware only. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is PART# BAJ640115 (On/Off 3-pin) or 640119 (On/Off w/mode switch).
Lens pattern options:
Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near-field applications in lighting zones 1 and 2 and distance in zone 3.
Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.
Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain, or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or wooded areas.
Satisfaction Guarantee – 30-Day Money Back Guarantee
5000K Daylight – Less Driver Fatigue, Natural Color

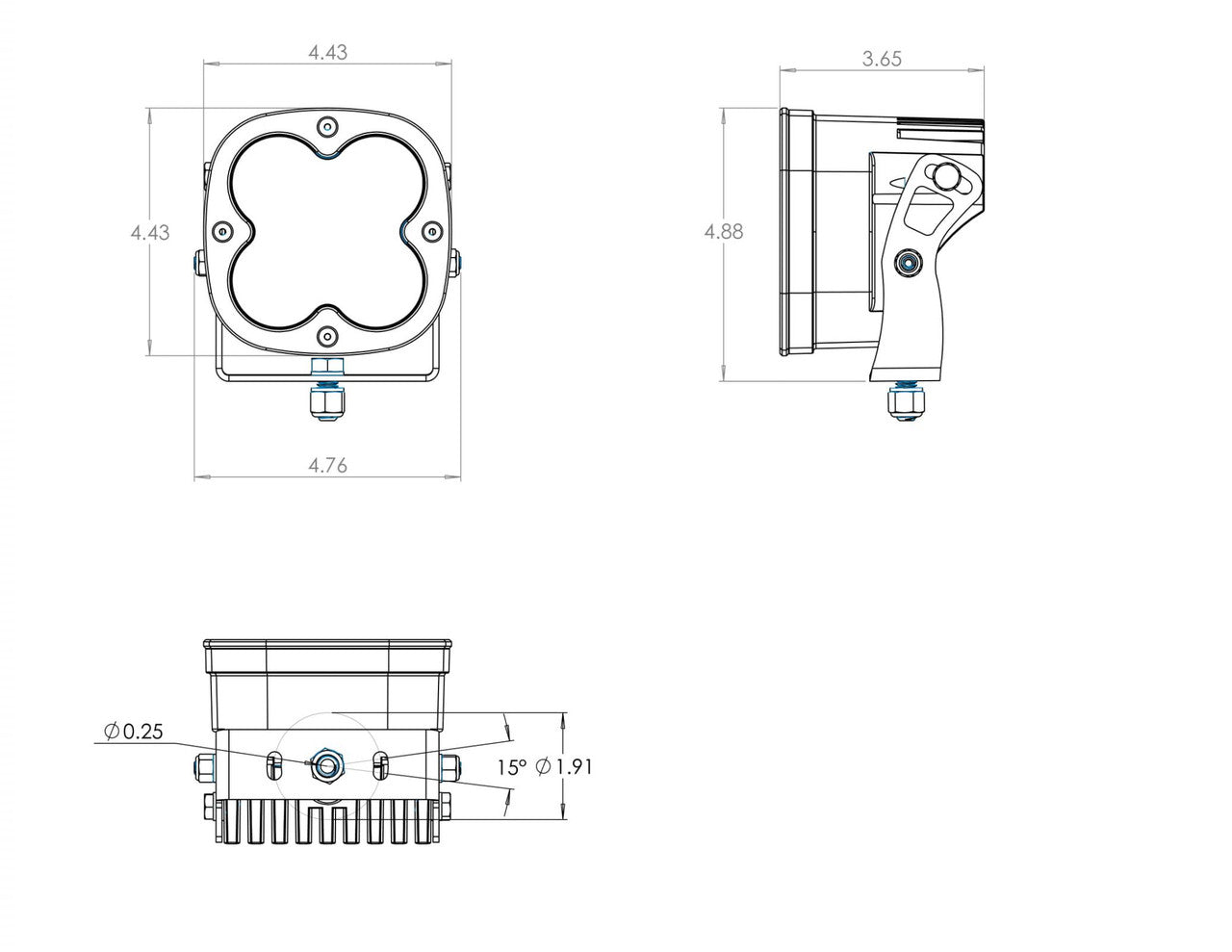

Dimensions
Depth (in.)
3.650
Height (in.)
4.430
Length (in.)
4.430
Weight (lbs.)
2.450
Specifications
Amperage Rating (A)
3
Average Rated Life (hr.)
49,930
Beam Pattern
Wide Cornering
Bezel Material
Billet Machined Aluminum
Brightness (Lumens)
4095
Description

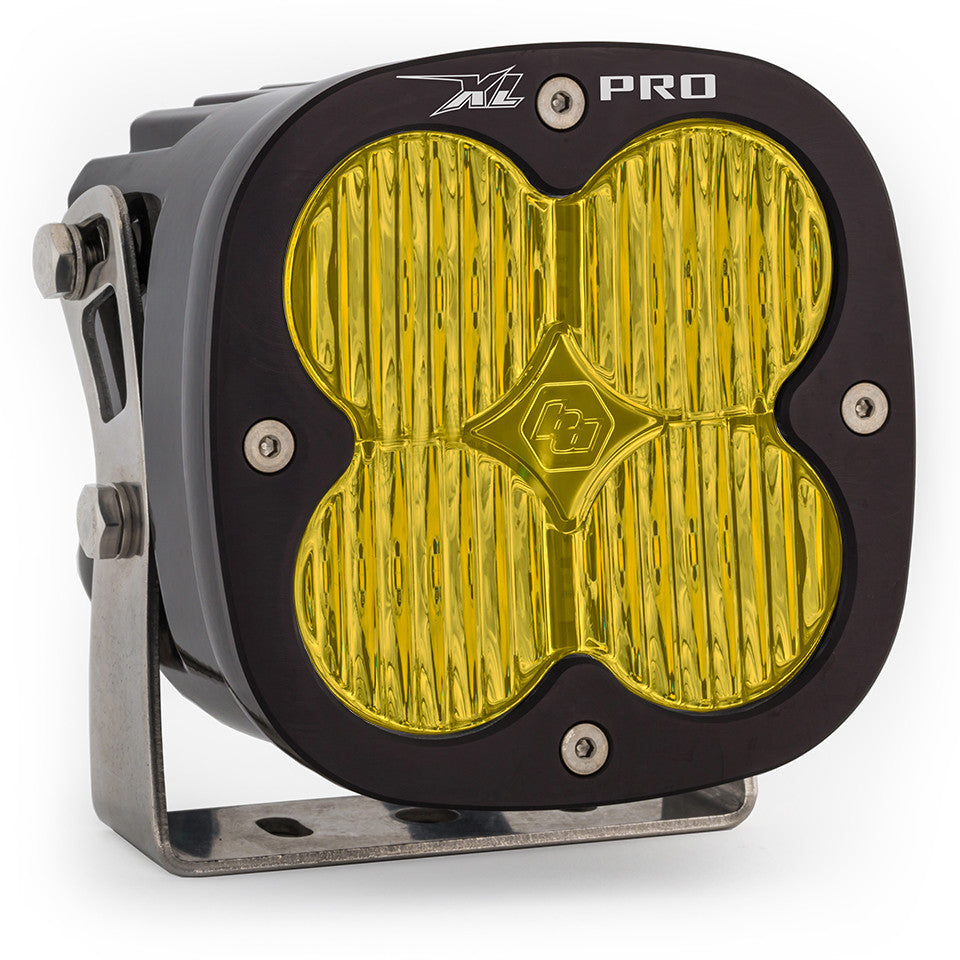

Wide Cornering; Amber
Housing Color
Black
Housing Material
Hard Anodized and Powder Coated Cast Aluminum
Lens Color
Amber
Lens Material
Hardcoated Polycarbonate
Light Quantity
1
Lighting Modes
High Beam/Dimming Feature (20%)
Lighting Quantity
4
Lighting Technology
Cree XP-L LED
Lighting Type
Forward Projecting
Mounting Hardware Included
Yes
Mounting Hardware Material
Stainless Steel
Overvoltage Protection
Built-In
Product Type
XL Pro LED Light Pod
Universal or Specific
Universal
Wattage (W)
41.400
Wiring Harness Included
No
Standards & Compliance
Standards/Compliance (Durability)
Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)
IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)
IP69K (Waterproof up to 9ft & Pressure Washable)
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
