Baja Designs - XL-R Pro LED Auxiliary Light Pod - Universal
Description
The Baja Designs XL-R Pro auxiliary light makes it easy to illuminate the terrain in front of your vehicle and is the perfect combination of affordability and performance. The XL-R Pro is fitted with a round outer bezel and uses Baja Designs’ trademarked high-speed spot reflectors providing for a longer and wider beam pattern with our next generation LEDs that offers 4,095 raw lumens per each light. This makes the XL-R Pro the perfect auxiliary light for off-road vehicles such as trucks, vans, UTVs and motorcycles. The single light kit comes with XL mounting hardware so you can install in minutes. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is PART# BAJ640115 (On/Off 3-pin) or 640119 (On/Off w/Hi-Lo switch).
Lens pattern options:

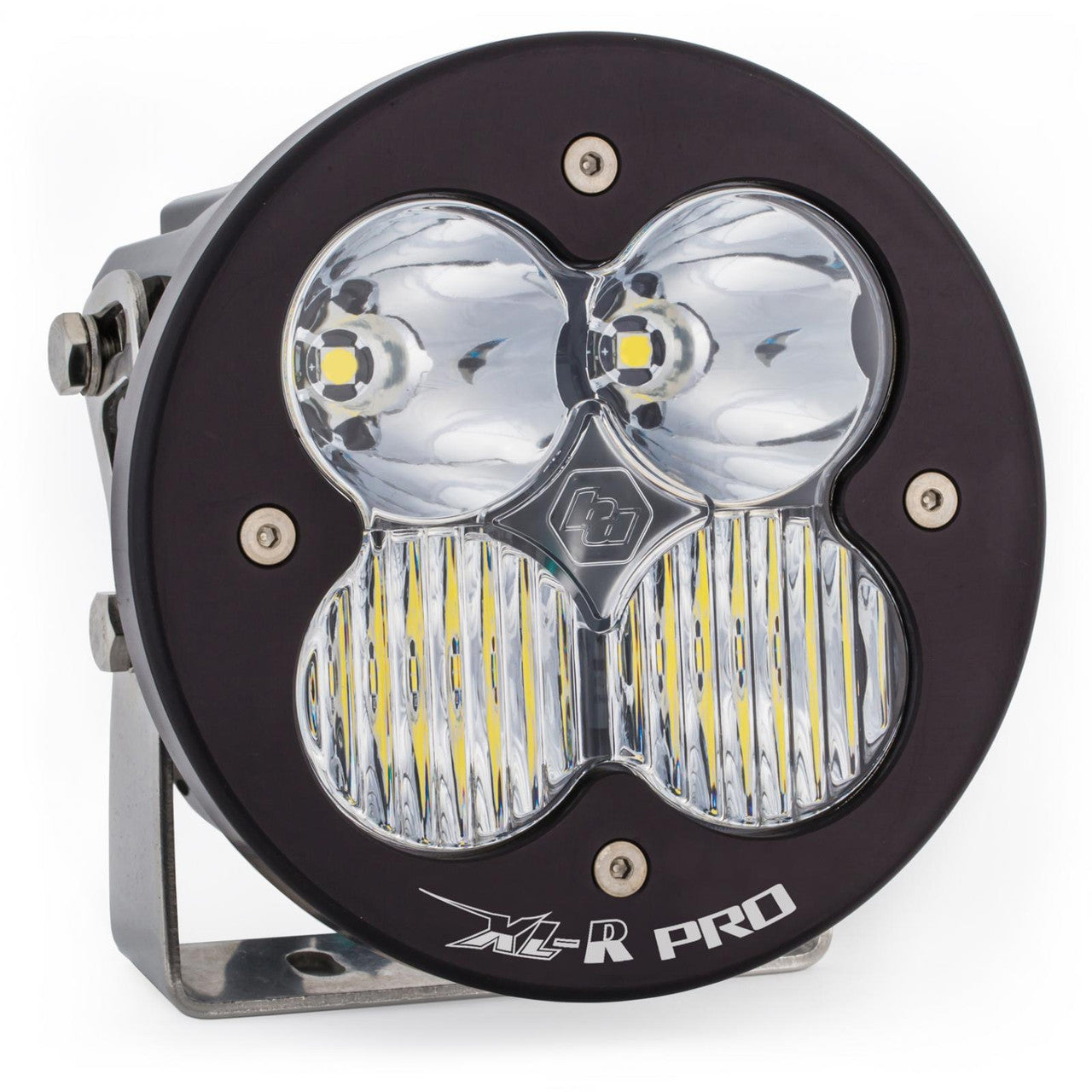

Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near-field applications in lighting zones 1 and 2 and distance in zone 3.

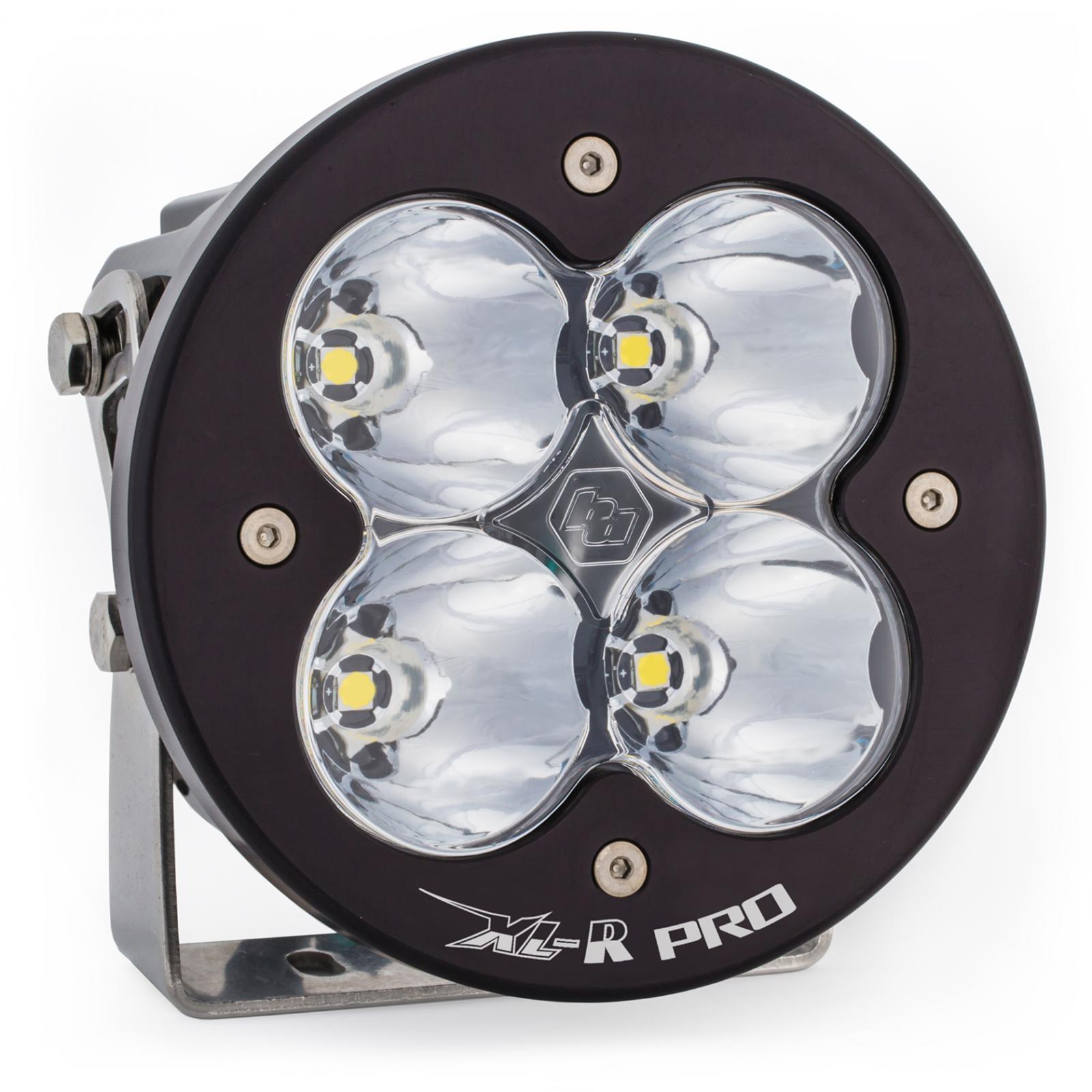

Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.

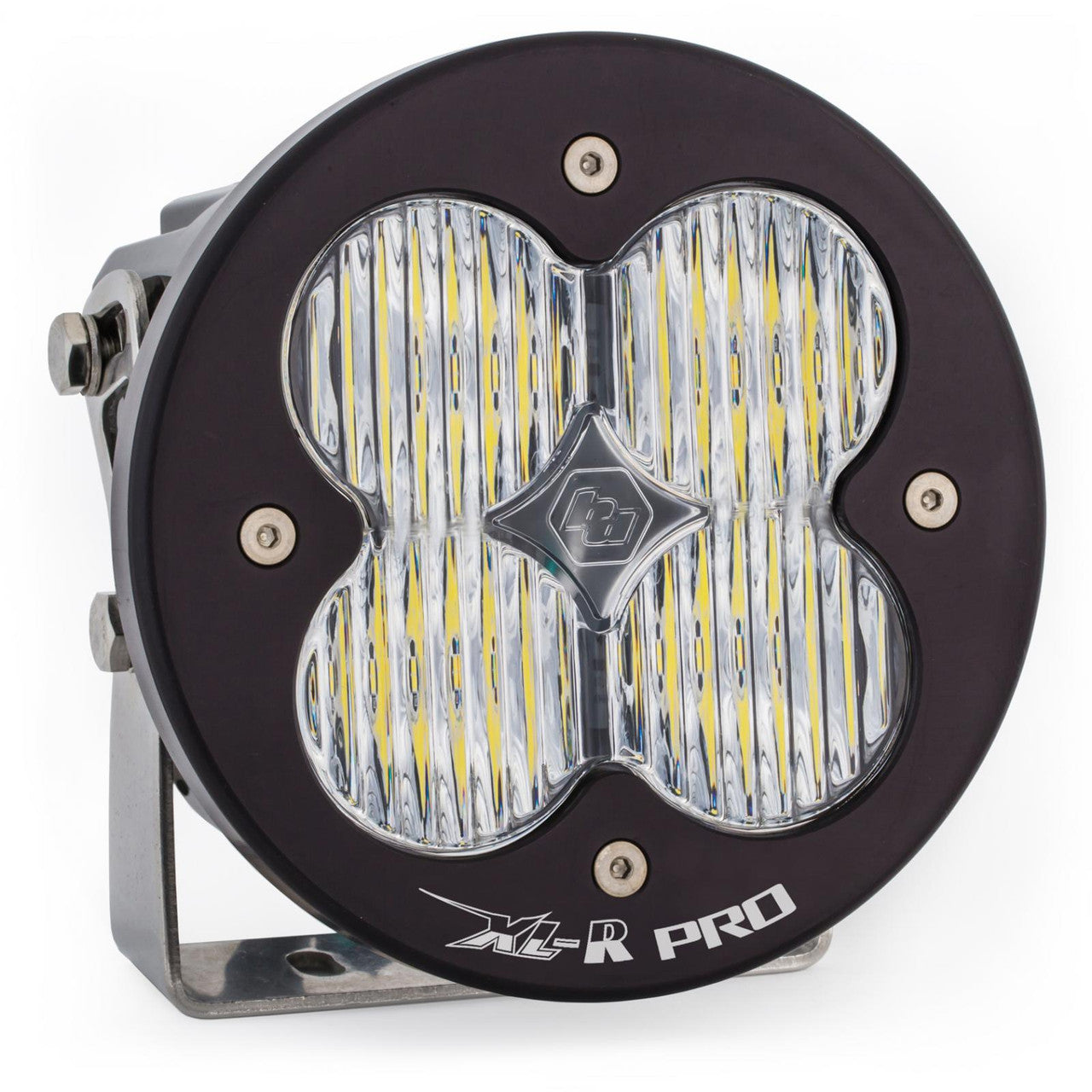

Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain, or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or wooded areas.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color

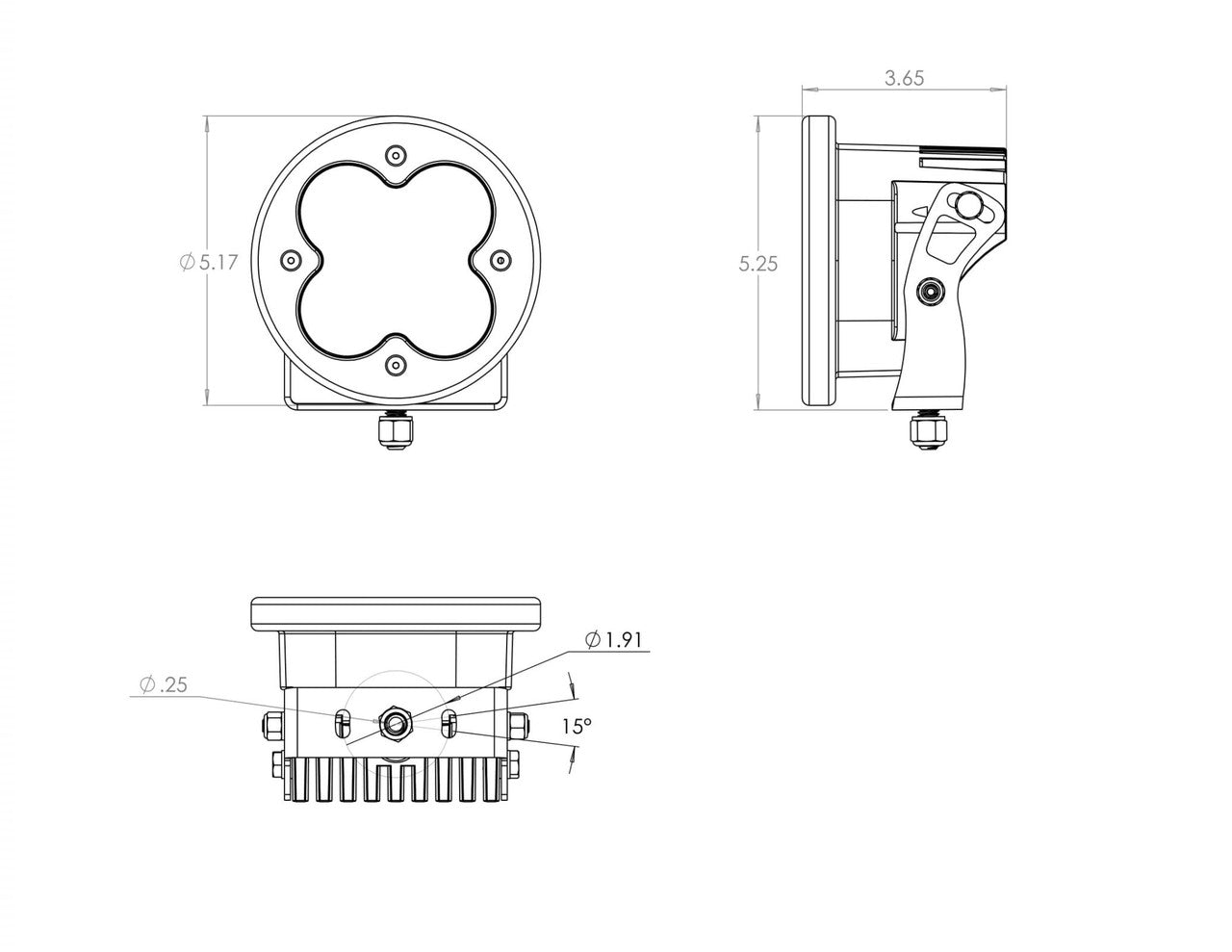

Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4,900 |
| Description | Round; Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree XP-L LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R Pro LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 40 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) |
2.45 |
Specifications
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4,900 |
| Description | Round; Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree XP-L LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R Pro LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 40 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
