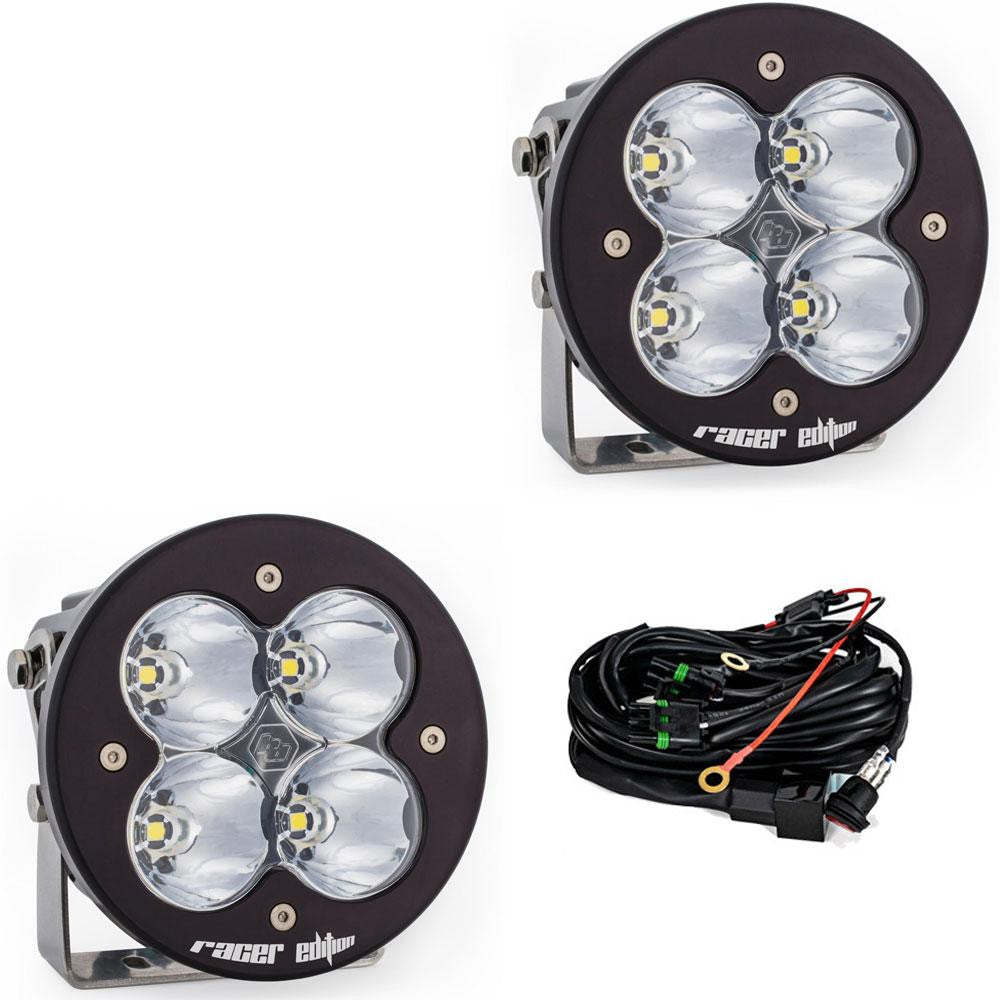

Baja Designs - XL-R Racer Edition LED Auxiliary Light Pod Pair - Universal
Description
Baja Designs XL-R Racer with the next generation LEDs offers 2,800 lumens per light and 85 percent greater distance over the previous generation. The XL-R Racer comes with a round bezel and throws light an average of 40 percent further than the XL Pro with a High-intensity LED, housed in hard anodized and powder coat cast aluminum. Enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! The XL-R Racer Edition LED light utilizes our trademarked High-Speed Spot reflectors providing for a longer beam pattern to hit lighting zone 5, and offers a 20 percent dimming feature. As always, Baja Designs provides the best in auxiliary LED lights with a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
Note: To access the hi-lo functionality, use the 640119 harness (On/Off w/mode switch) - PART# BAJ640119
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Edition Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4,300 |
| Description | Round; Racer Edition Spot; Clear; Pair |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | High Intensity LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 Racer Edition LED Light Pod Pair w/ Wiring Harness |
| Universal or Specific | Universal |
| Wattage (W) | 40 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
