The Baja Designs XL Sport auxiliary light makes it easy to illuminate the terrain in front of your vehicle and is the perfect combination of affordability and performance. The XL Sport uses Baja Designs' trademarked high-speed spot reflectors providing for a longer and wider beam pattern with our next generation LEDs that offers 3,162 raw lumens per each light. This makes the XL Sport the perfect auxiliary light for off-road vehicles such as trucks, vans, UTVs and motorcycles. The single light kit comes with XL mounting hardware only. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
NOTE:This light does not come with a wiring harness. The applicable wiring harness for this light is PART# BAJ640115 (On/Off Wiring Harness 3-pin)
Lens pattern options:

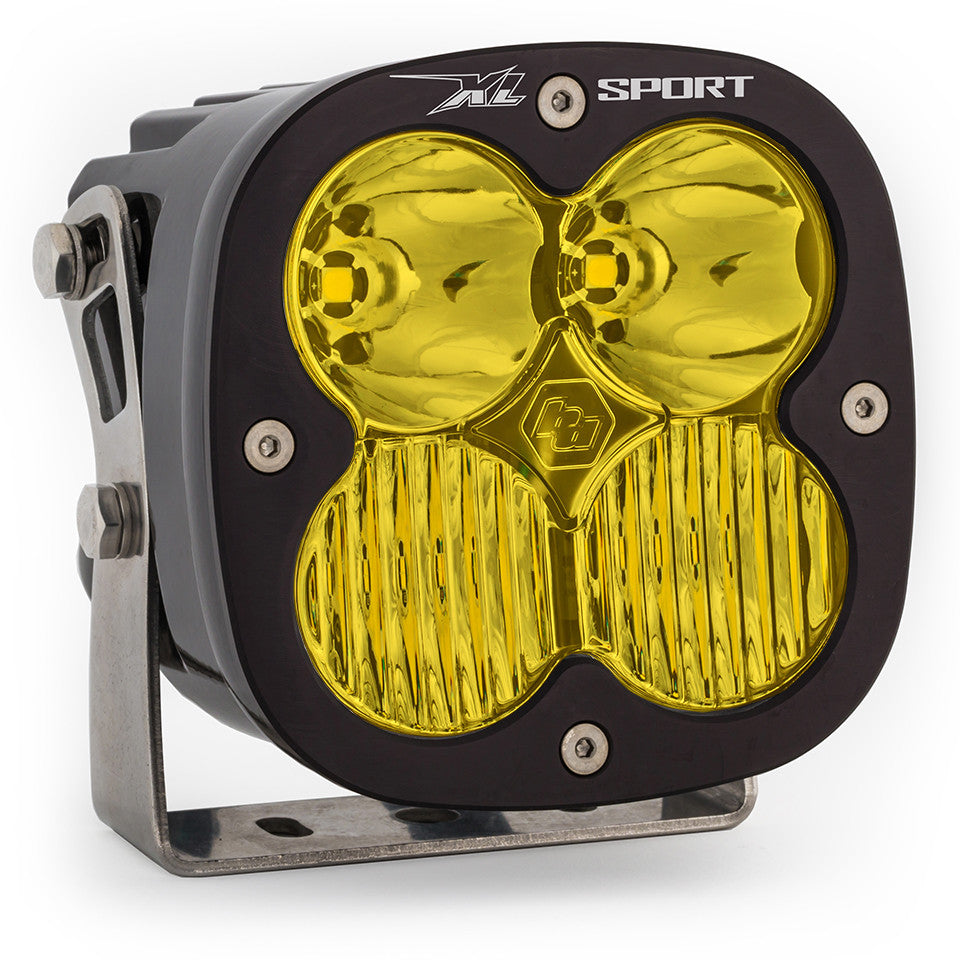

Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3.
Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.

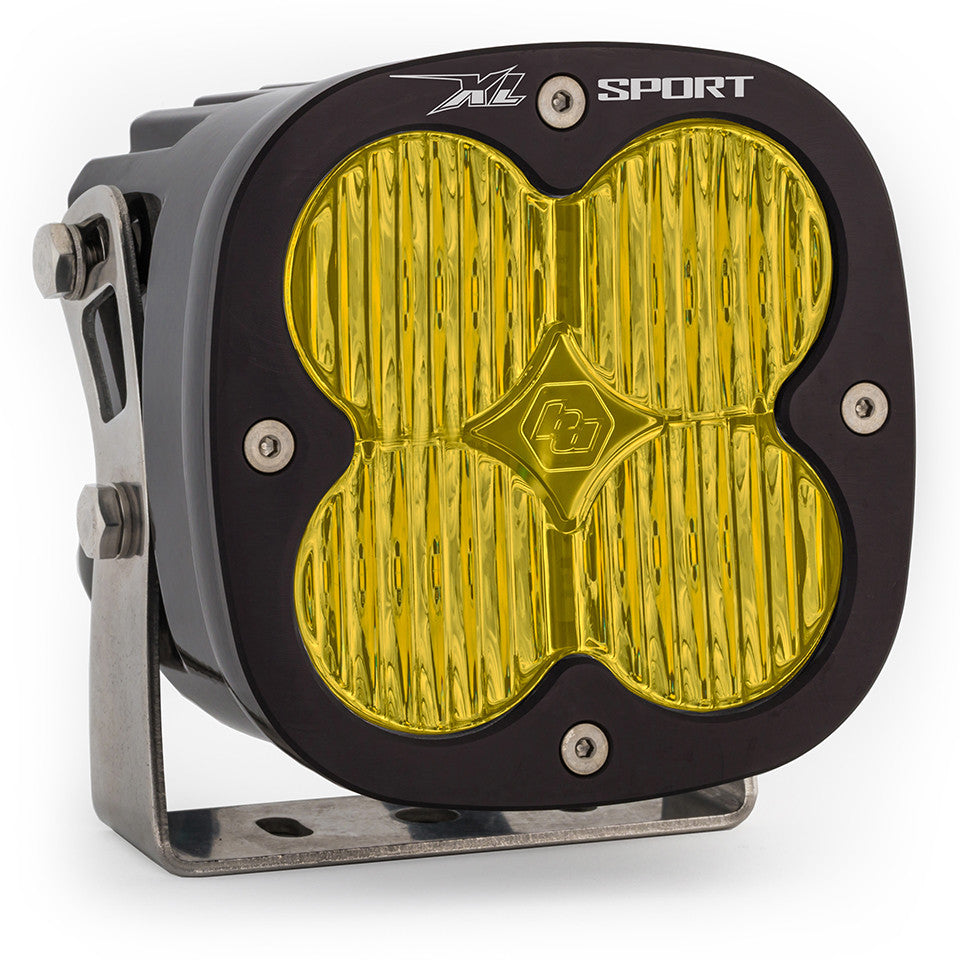

Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or through wooded areas.
Satisfaction Guarantee – 30-Day Money Back Guarantee
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
Depth (in.)
3.650
Height (in.)
4.430
Length (in.)
4.430
Weight (lbs.)
2.450
Specifications
Amperage Rating (A)
2.200
Average Rated Life (hr.)
49,930
Beam Pattern
Spot
Bezel Material
Billet Machined Aluminum
Brightness (Lumens)
3162
Description
Spot; Clear
Housing Color
Black
Housing Material
Powder Coated Cast Aluminum
Lens Color
Clear
Lens Material
Hardcoated Polycarbonate
Light Quantity
1
Lighting Modes
Beam
Lighting Quantity
4
Lighting Technology
LED
Lighting Type
Forward Projecting
Mounting Hardware Included
Yes
Mounting Hardware Material
Stainless Steel
Overvoltage Protection
Built-In
Product Type
XL Sport LED Light Pod
Universal or Specific
Universal
Wattage (W)
30.360
Wiring Harness Included
No
Standards & Compliance
Standards/Compliance (Durability)
Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)
IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)
IP69K (Waterproof up to 9ft & Pressure Washable)
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results
