BILSTEIN - B8 5160 Rear Remote Reservoir Shock – Toyota Tacoma 2005–2023

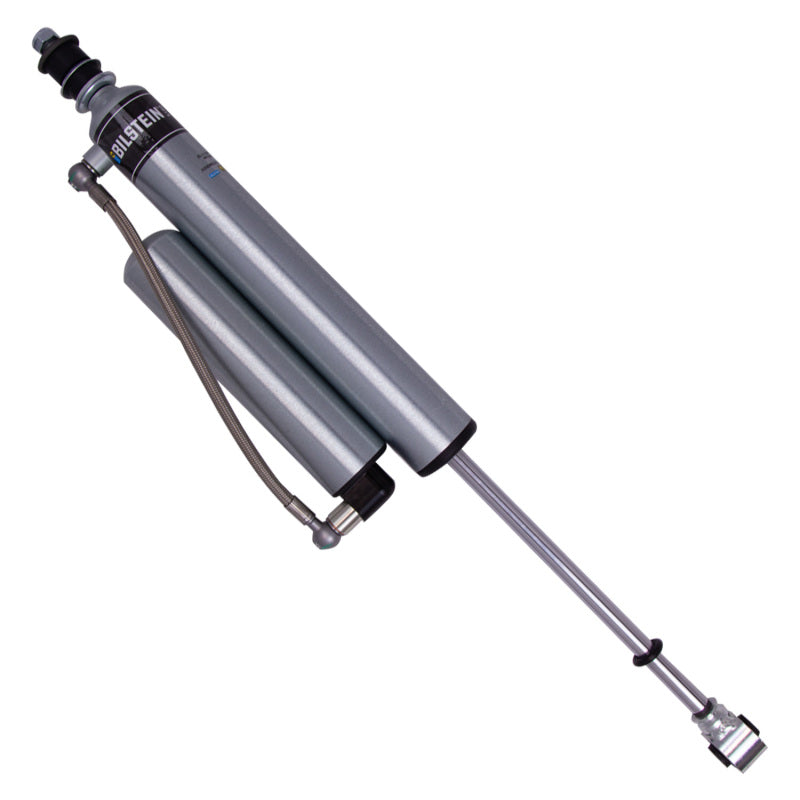

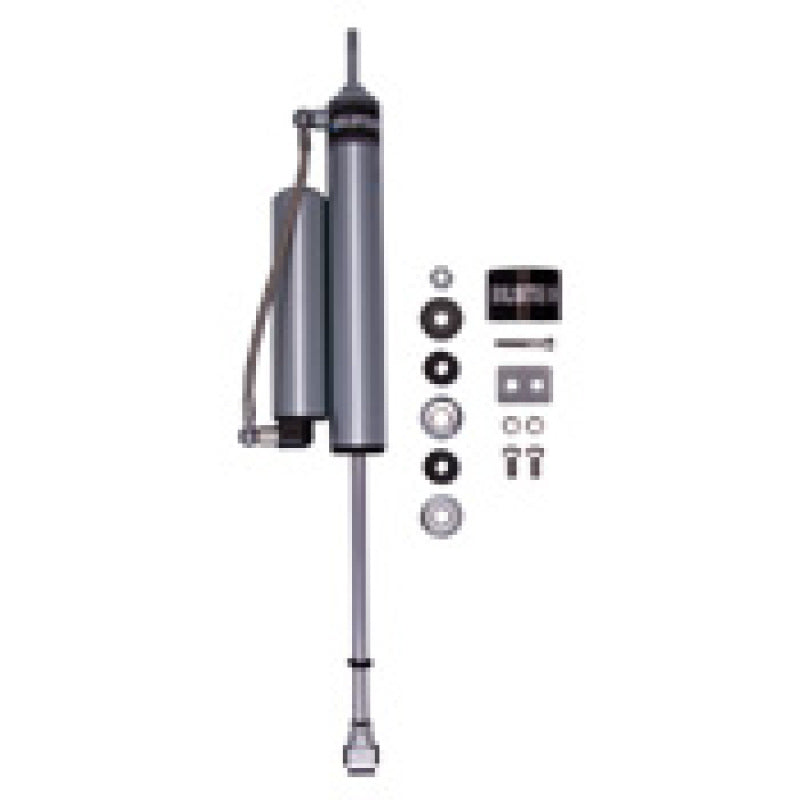

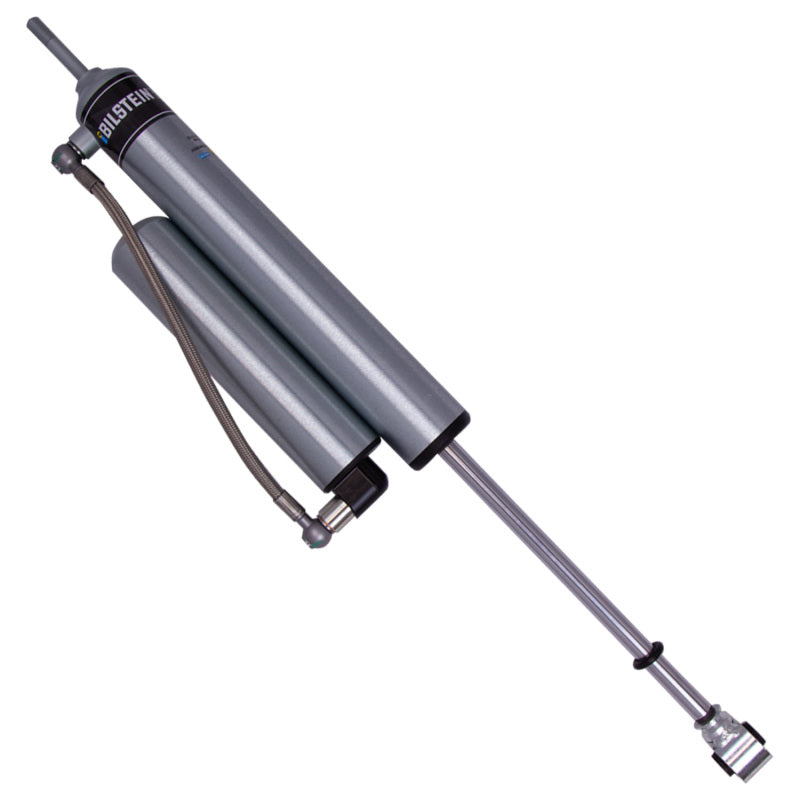

BILSTEIN B8 5160 Rear Remote Reservoir Shock

Take your Tacoma’s rear suspension performance to the next level with the BILSTEIN B8 5160 Remote Reservoir Shock. Designed specifically for lifted trucks and SUVs, the B8 5160 provides increased cooling capacity, consistent damping performance, and improved control when driving both on-road and off-road.

The remote reservoir increases oil capacity and helps manage heat during demanding driving conditions, while BILSTEIN’s 46mm monotube design delivers consistent, fade-resistant performance. Vehicle-specific velocity-sensitive digressive valving provides responsive suspension control without sacrificing everyday drivability.

Whether you're building a daily-driven Tacoma, an overland setup, or a weekend trail truck, the B8 5160 provides a durable performance upgrade over a conventional rear shock.

Key Features

• BILSTEIN B8 5160 Series

• Remote reservoir design

• 46mm monotube piston

• 2.0" shock body

• Increased cooling capacity for demanding use

• Vehicle-specific digressive valving

• 9.41" shock travel

• 360-degree swivel banjo reservoir hose fitting

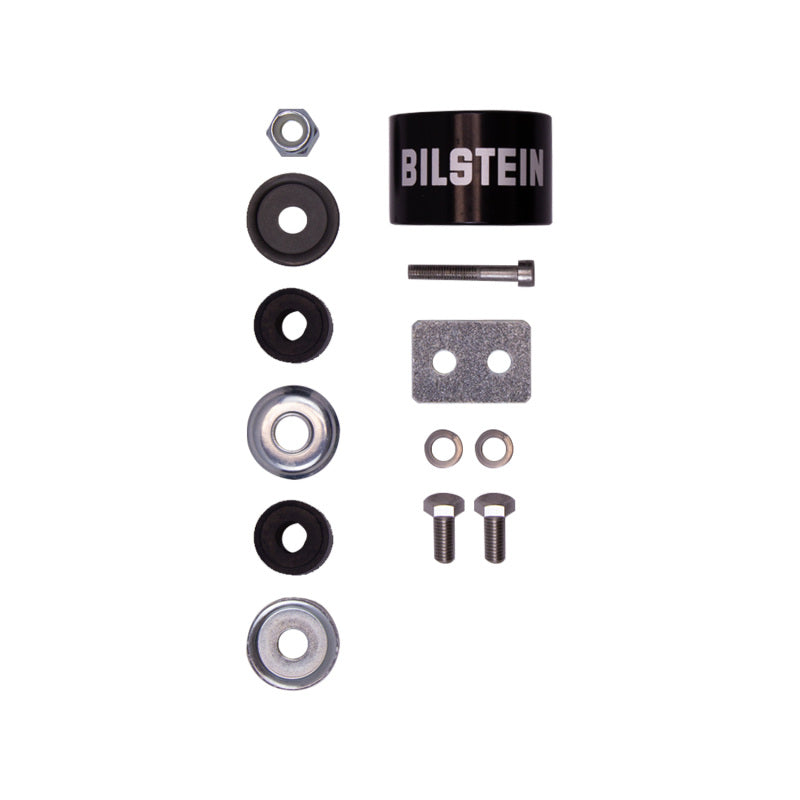

• Billet aluminum reservoir clamp included

• Zinc-plated finish

• Non-adjustable damping

• Designed for lifted trucks

• Direct-fit Tacoma application

• Made in the USA

• BILSTEIN Limited 2-Year Warranty

Shock Specifications

Collapsed Length: 14.22"
Extended Length: 23.63"
Shock Travel: 9.41"
Body Diameter: 2.0"
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount: Stem
Lower Mount: Eye – 12mm
Internal Design: Monotube
Body Design: Smooth Body / Non-Coilover
Reservoir: Yes
Adjustable Damping: No
Finish: Zinc Plated

Vehicle Fitment

Toyota Tacoma

• 2005–2023

Quantity Required

Sold individually.

BILSTEIN specifies 2 shocks per vehicle. Order quantity 2 for a complete rear suspension setup.

Ideal For

• Daily-driven lifted Tacomas

• Overland builds

• Trail and off-road use

• Trucks carrying additional gear

• Drivers looking for improved rear suspension control

• Tacoma owners upgrading from conventional monotube shocks

Complete Your BILSTEIN Suspension Setup

Pair the B8 5160 rear remote reservoir shocks with BILSTEIN B8 6112 front suspension components for a balanced suspension package with improved ride control, damping performance, and off-road capability.

Built for the street. Ready for the trail.
