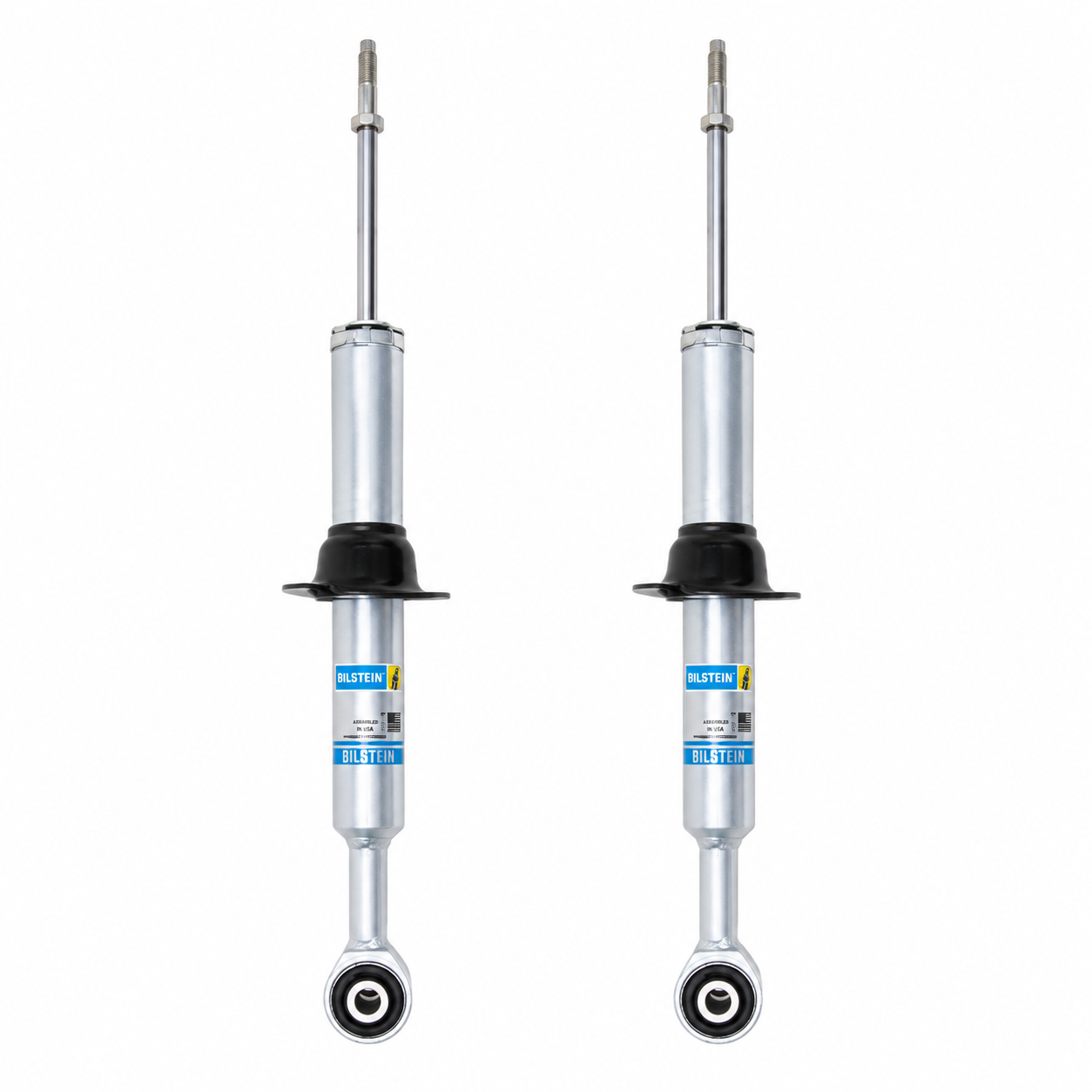

BILSTEIN - B8 5100 Ride Height Adjustable Front Shocks – Toyota Tacoma 2024–Current

BILSTEIN B8 5100 Ride Height Adjustable Front Shocks

Upgrade the front suspension of your 4th Gen Toyota Tacoma with a matched pair of BILSTEIN B8 5100 Ride Height Adjustable shocks. Designed specifically for trucks and SUVs with an OE-style front coilover suspension, the B8 5100 provides a simple way to improve suspension performance while allowing the factory coil springs to be repositioned for additional front ride height.

Unlike spacer-style leveling solutions, the BILSTEIN 5100 uses multiple snap-ring grooves built directly into the shock body to change the spring-seat position. Depending on vehicle configuration and application, BILSTEIN specifies up to 0–3 inches of front lift using the OE springs.

Inside each shock is BILSTEIN's 46mm monotube piston with a digressive, self-adjusting deflective-disc valve system designed to respond to changing road and trail conditions. The result is improved handling, control, and wheel travel while maintaining a suspension setup well suited for daily-driven Tacomas.

Sold as a Complete Pair

includes TWO front shocks.

BILSTEIN lists part number 24-333207 individually and specifies a quantity of 2 per vehicle. We package them together so you receive the complete left and right front shock set required for the vehicle.

Kit Includes

• (2) BILSTEIN B8 5100 Ride Height Adjustable Front Shock Absorbers

• (2) Spring Seats

• Quantity: 2 shocks

Features

• B8 5100 Ride Height Adjustable Series


• Ride-height-adjustable front shock design

• Multiple snap-ring spring-seat positions

• Uses the factory/OE coil springs

• Up to 0–3" of front lift depending on application and configuration

• 46mm monotube piston

• Digressive valving

• 2.0" shock body

• Zinc-plated finish

• Increased wheel travel and improved handling

• Non-reservoir design

• Non-adjustable damping

• Spring seat included

• Limited Lifetime Warranty

Fitment

Toyota Tacoma 4th Gen

Technical Specifications

Shock Type: B8 5100 Ride Height Adjustable
Part Number: 24-333207
Internal Design: Monotube
Piston Diameter: 46mm
Body Diameter: 2.0"
Shaft Diameter: 14mm
Collapsed Length: 19.24"
Extended Length: 24.13"
Travel: 4.89"
Upper Mount: Stem
Lower Mount: Eye – 16.3mm
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: No
Spring Seat: Included

Daily Driver Upgrade

The B8 5100 is an excellent choice for Tacoma owners looking for a straightforward suspension upgrade without moving into a more complicated remote-reservoir or performance coilover system. It provides the ride-height flexibility needed to level the truck while upgrading the factory dampers with BILSTEIN monotube technology.

Important: Lift height varies by application and spring-seat position. Professional installation and a wheel alignment are recommended after suspension installation.
