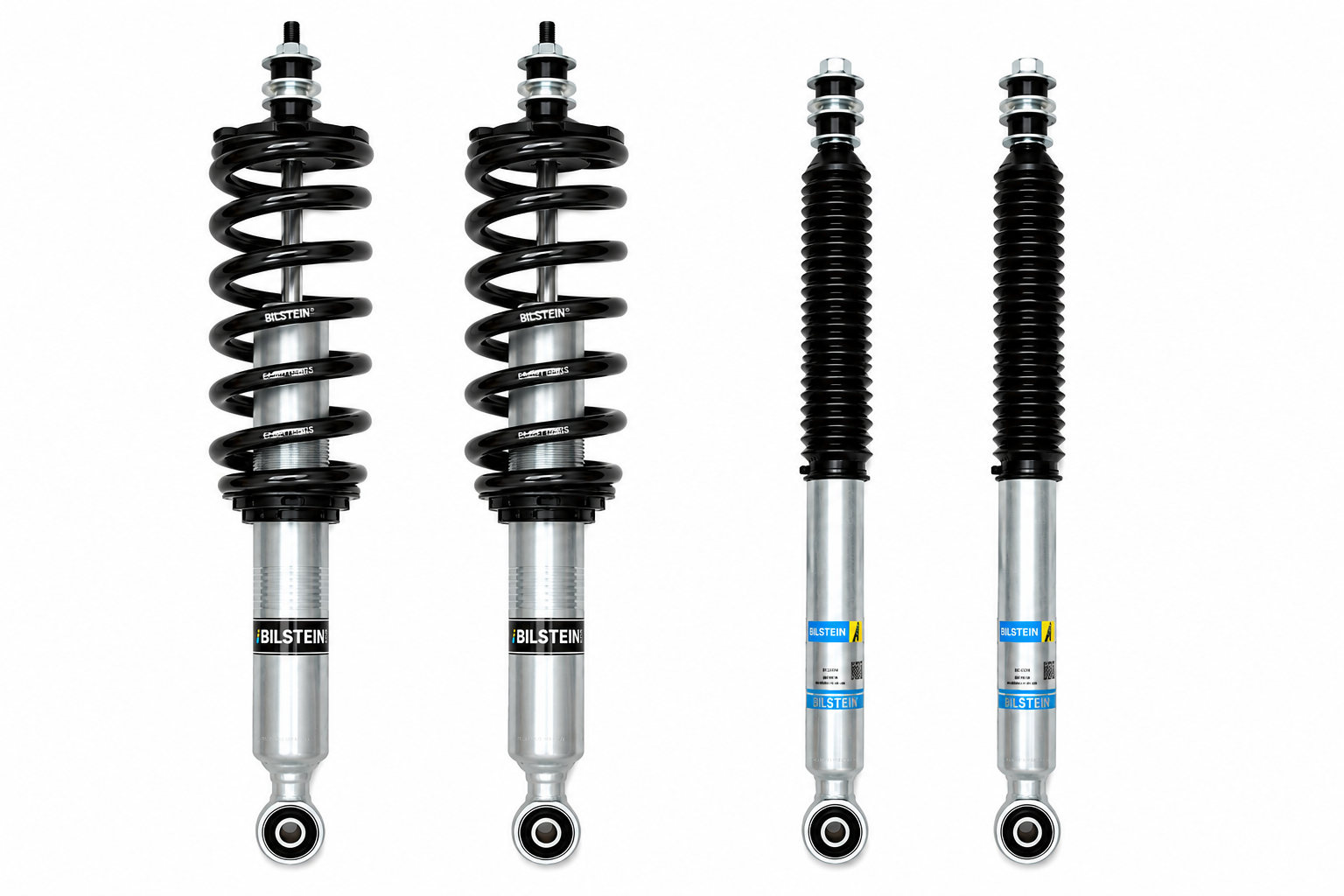

Bilstein - B8 6112 + B8 5100 Suspension Kit – Toyota Tacoma 2024–Current
Bilstein B8 6112 + B8 5100 Suspension Kit
Upgrade your 2024–current Toyota Tacoma with a balanced Bilstein suspension package built for improved ride control, increased front-end performance, and everyday drivability.
This Tough Terrain package combines the Bilstein B8 6112 front suspension kit with matching Bilstein B8 5100 rear shocks, giving Tacoma owners a significant step up from the standard 5100 setup without moving into the added complexity of remote-reservoir suspension.
Up front, the B8 6112 system uses large 60mm monotube dampers, vehicle-specific Bilstein coil springs, billet aluminum spring seats, and an adjustable spring-seat design. The larger shock body provides increased oil capacity and damping control while maintaining the comfort and predictable handling expected from a daily-driven Tacoma.
In the rear, Bilstein B8 5100 monotube shocks provide a simple, durable solution that complements the upgraded front suspension without reservoirs or unnecessary additional hardware.
The result is an excellent premium Daily Driver suspension package for Tacoma owners who want more capability than a standard 5100 system while keeping the truck comfortable, straightforward, and practical for everyday use.

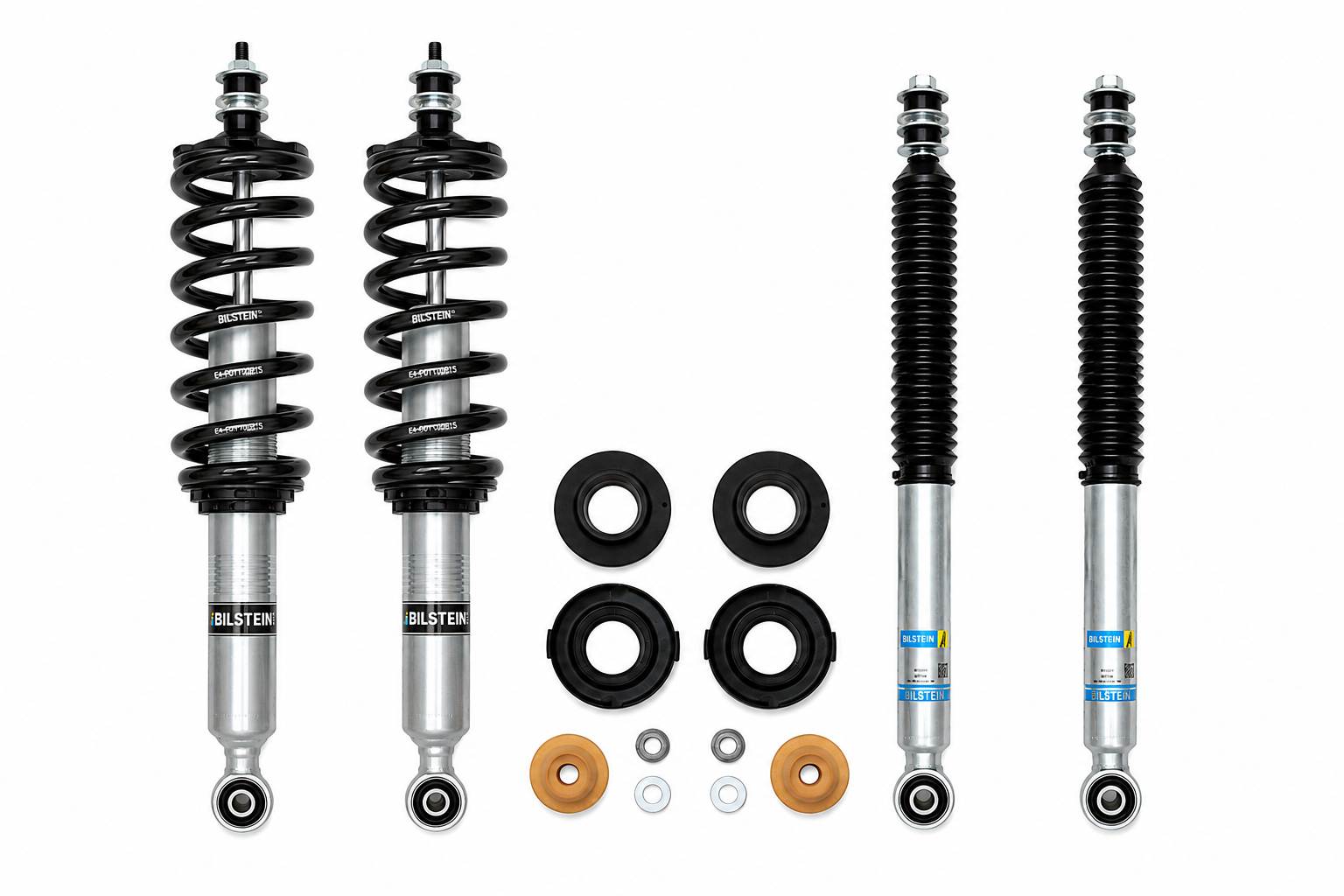

What's Included
Front
(1) Bilstein B8 6112 Front Suspension Kit
The front kit includes:
- (2) Bilstein B8 6112 60mm front shocks
- (2) Bilstein matched front coil springs
- (2) Billet aluminum spring seats
Rear
(2) Bilstein B8 5100 Rear Shocks
Complete Package
- 2 front B8 6112 shocks
- 2 Bilstein front coil springs
- 2 billet spring seats
- 2 rear B8 5100 shocks
No upper control arms included.
No remote reservoirs.
B8 6112 Front Suspension
The B8 6112 is Bilstein's large-body ride-height-adjustable front suspension system.
Its 60mm digressive piston provides increased damping control while the larger shock body increases oil capacity and cooling capability.
Multiple snap-ring grooves allow the spring seat to be repositioned for front ride-height adjustment. Actual lift varies according to vehicle application and selected spring-seat position.
Unlike a basic shock replacement, the 6112 kit also includes Bilstein-engineered coil springs matched to the dampers.
Front Features
- 60mm monotube shock design
- 2.65" shock body
- 18mm shock shaft
- Digressive piston
- Vehicle-specific tuning
- Ride-height-adjustable spring seat
- Bilstein matched coil springs
- Billet aluminum spring seats
- Non-adjustable damping
- No external reservoir
- Direct-fit design
B8 5100 Rear Suspension
Matching B8 5100 rear monotube shocks complete the package while keeping the rear suspension simple and dependable.
The B8 5100 is an excellent match for a daily-driven Tacoma because it improves damping and suspension control without introducing remote reservoirs or external adjusters.
Why Choose the 6112 + 5100 Kit?
Larger 60mm Front Shocks
The 6112 provides considerably more front shock capacity than the standard 46mm B8 5100.
Front Springs Included
Bilstein matched coil springs are included with the 6112 front kit, creating a more complete front suspension upgrade.
Adjustable Front Ride Height
Multiple spring-seat positions allow the front ride height to be adjusted for leveling, additional ground clearance, and larger tire setups where vehicle clearance allows.
Comfortable Daily Performance
The system provides increased suspension control without turning your Tacoma into an unnecessarily complicated off-road build.
No Remote Reservoirs
No reservoir hoses, reservoir mounts, or additional external components are required.
No UCA Required in This Package
This Tough Terrain Daily Driver package intentionally retains a straightforward configuration and does not include aftermarket upper control arms.
5100 vs. 6112 Daily Driver
Choose the Bilstein B8 5100 Kit if:
You want an affordable, straightforward improvement over the factory suspension while retaining your factory front springs.
Choose the Bilstein B8 6112 + 5100 Kit if:
You want a higher-performance Daily Driver setup with larger 60mm front shocks and matched Bilstein front springs while still avoiding reservoirs and a more complex suspension build.
Recommended Use
Ideal for:
- Daily commuting
- Highway driving
- Improved street handling
- Weekend trips
- Dirt roads
- Fire roads
- Camping
- Mild recreational trails
- Front leveling
- Tacoma owners wanting more suspension control without reservoir shocks
Fitment
Toyota Tacoma 4th Generation / N400
Important Fitment Notice
Fitment varies by Tacoma trim, drivetrain, rear suspension configuration, and factory equipment.
This package should not be considered universal for every 2024+ Tacoma configuration.
Verify vehicle configuration before ordering, particularly on models equipped with specialized factory suspension systems.
Installation
Professional installation and a wheel alignment are recommended.
Ride height should be selected during installation based on the vehicle's configuration, intended stance, tire size, and alignment requirements.
Rating:
DAILY DRIVER — PERFORMANCE
This package sits above our standard Bilstein B8 5100 Daily Driver kit.
It is designed for Tacoma owners who want the larger 60mm B8 6112 front suspension and matched Bilstein springs while maintaining the simplicity of non-reservoir rear shocks.
For customers moving into sustained heavy-load use, extensive overlanding, or more demanding off-road driving, we recommend stepping into one of our Overland or Trail Ready suspension systems.
