FOX - 2.5 Performance Elite Premium Suspension System – Toyota Tacoma 2024–Current
FOX 2.5 Performance Elite Premium Suspension System

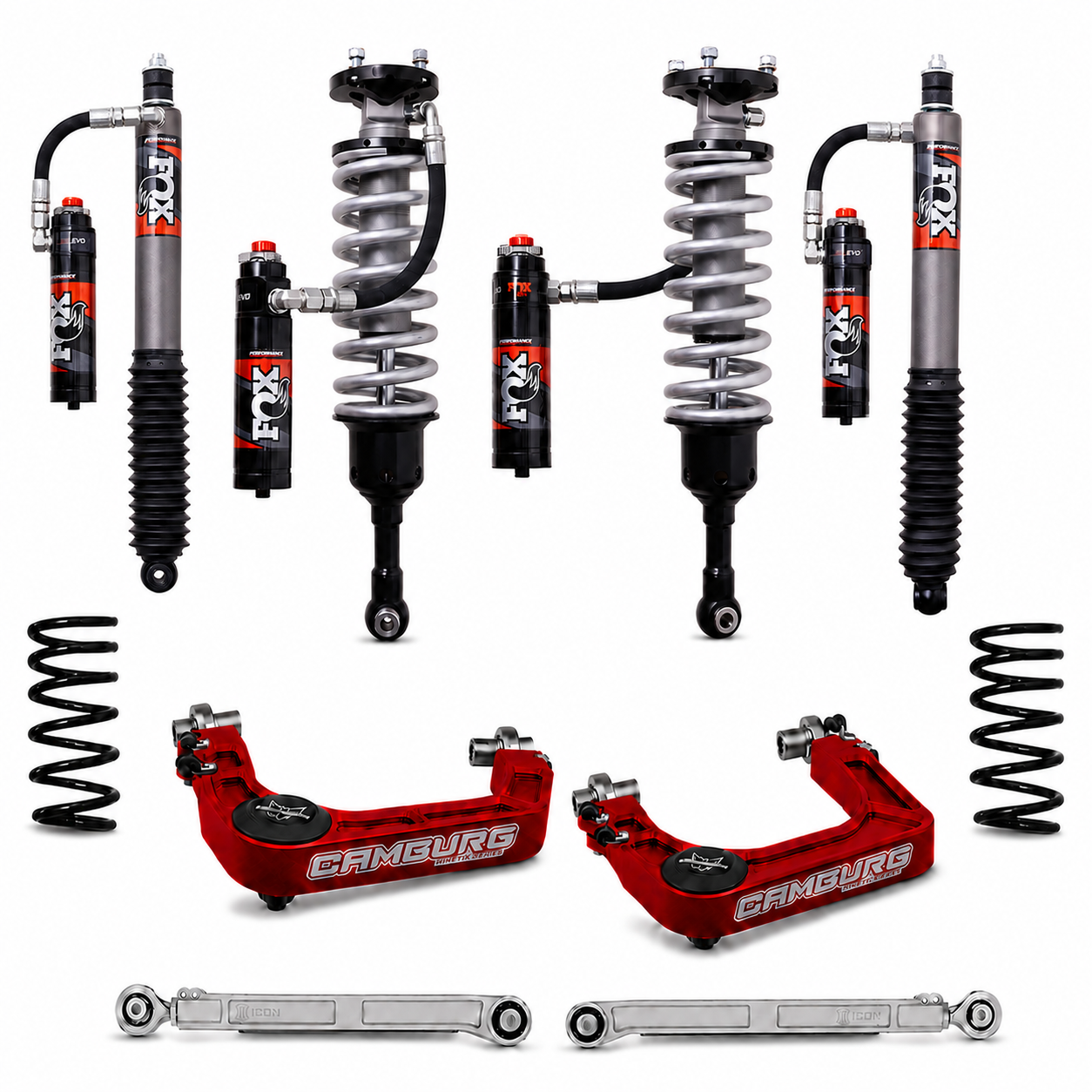

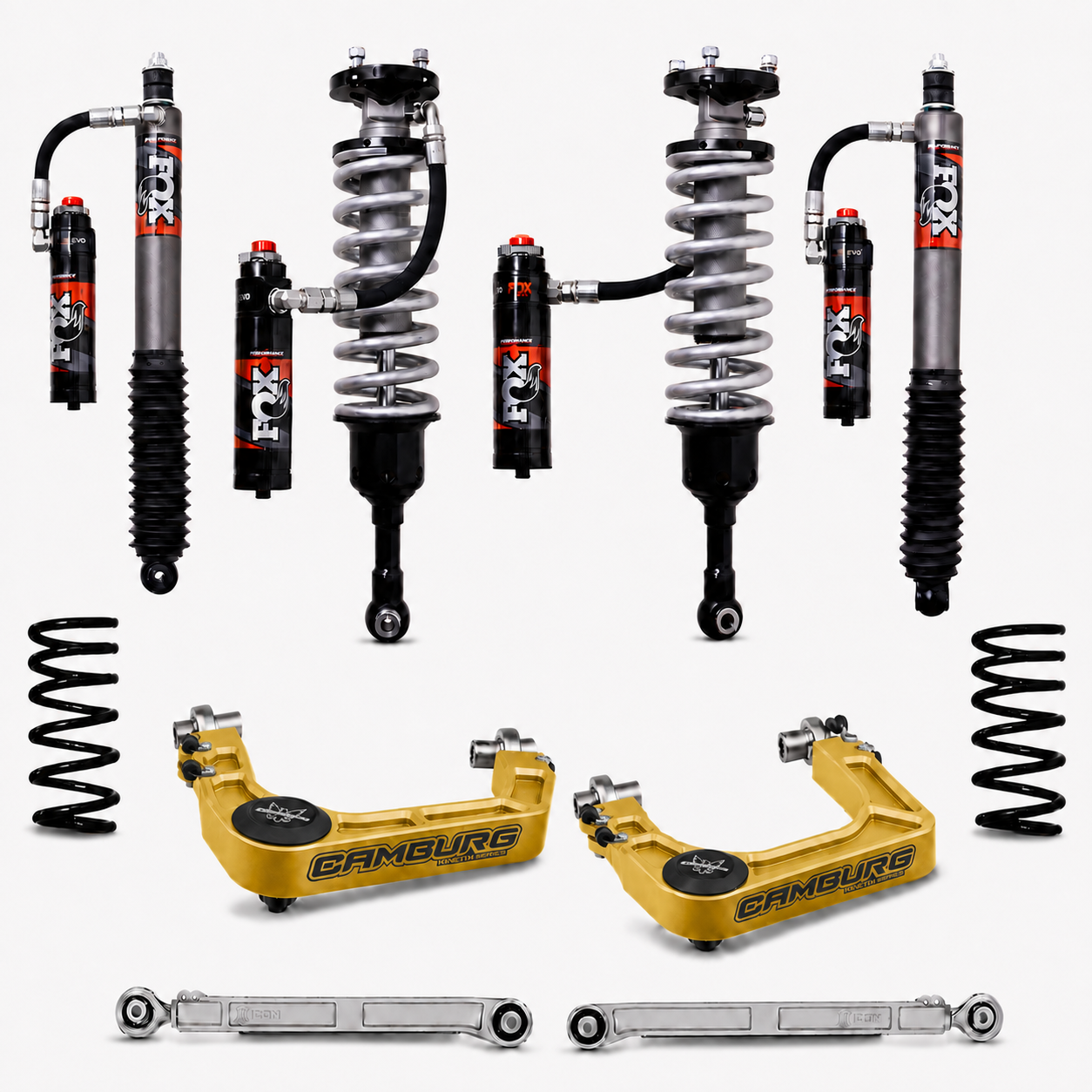

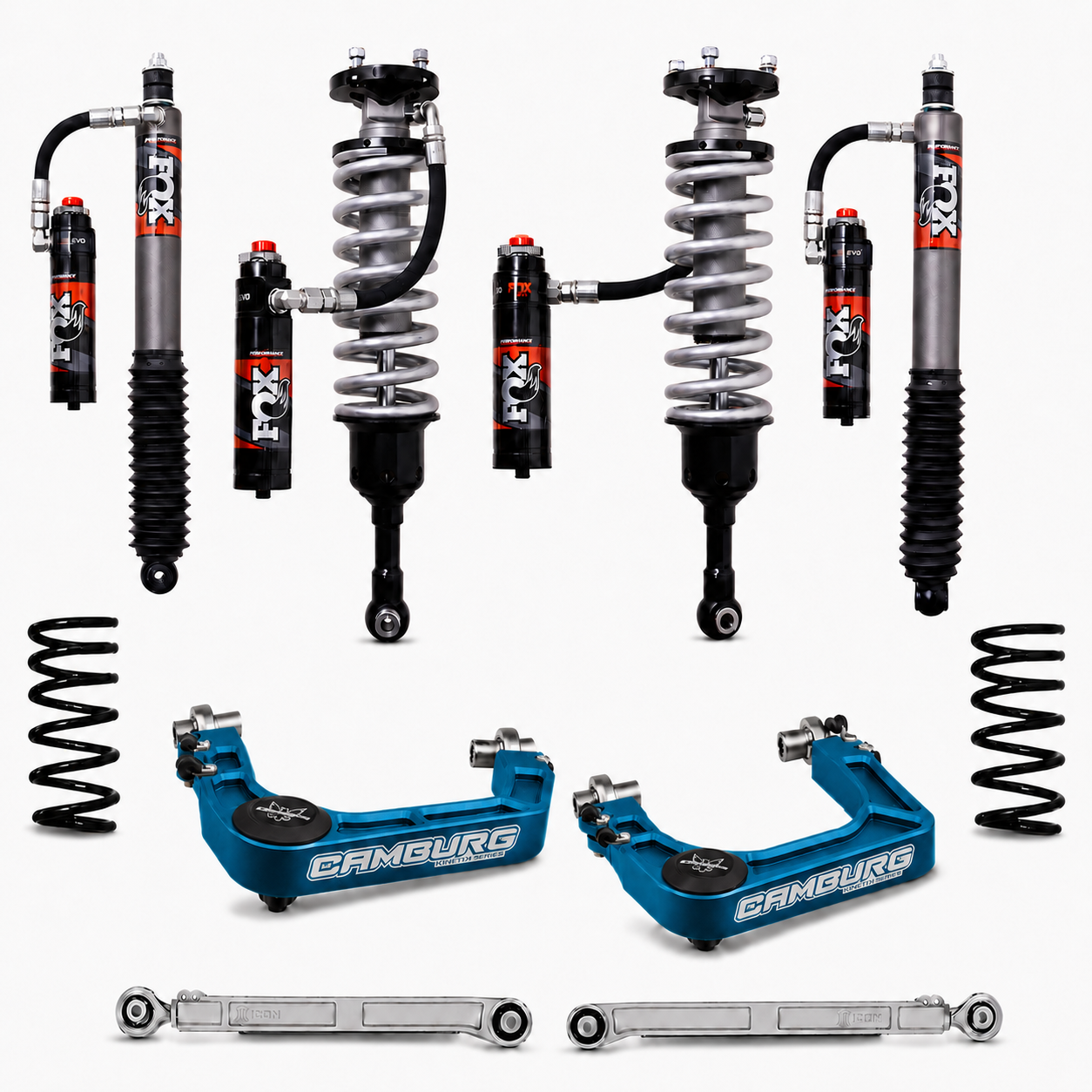

Take your 2024+ Toyota Tacoma to a completely different level with the FOX 2.5 Performance Elite Premium Suspension System, a complete premium suspension package built around FOX Performance Elite DSC EVO shocks, Camburg KINETIK billet upper control arms, and ICON rear suspension components.
Rather than simply pairing front and rear shocks, this Tough Terrain Off Road package upgrades the Tacoma as a complete system—front damping, rear damping, front suspension geometry, rear axle control, and rear spring performance.
Whether your Tacoma is primarily a daily driver that sees serious trail use or an overland build carrying permanent equipment, simply select the suspension setup that matches how your truck is actually used.
What's Included

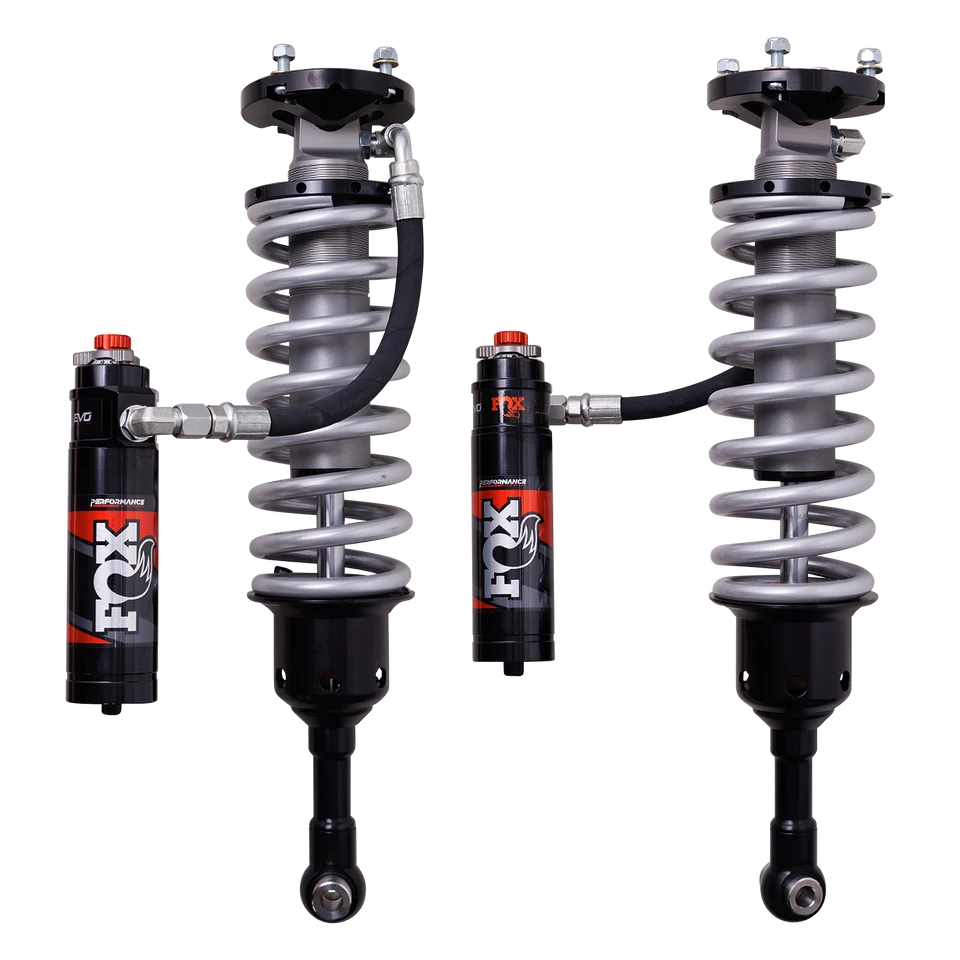

FOX 2.5 Performance Elite DSC EVO Front Coilovers
Premium 2.5-inch front coilovers featuring remote reservoirs and FOX DSC EVO adjustment, providing independent high- and low-speed compression tuning.

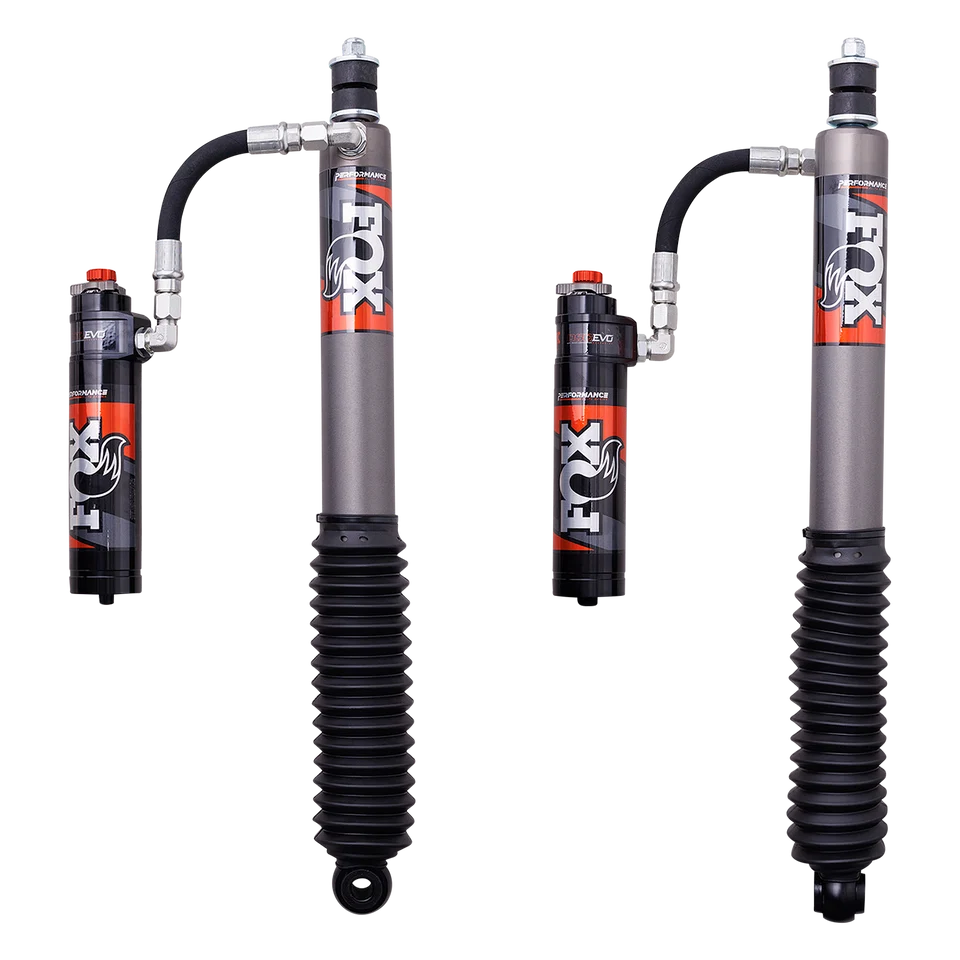

FOX 2.5 Performance Elite DSC EVO Rear Reservoir Shocks
Matching rear Performance Elite reservoir shocks with DSC EVO adjustment for greater heat capacity, damping control, and suspension tuning.
Camburg KINETIK V2 Billet Uniball Upper Control Arms Series
CNC-machined billet aluminum upper control arms designed to improve suspension geometry and performance while providing additional strength and articulation over the factory control arms.
Choose your UCA finish:
Red • Gray • Gold • Blue

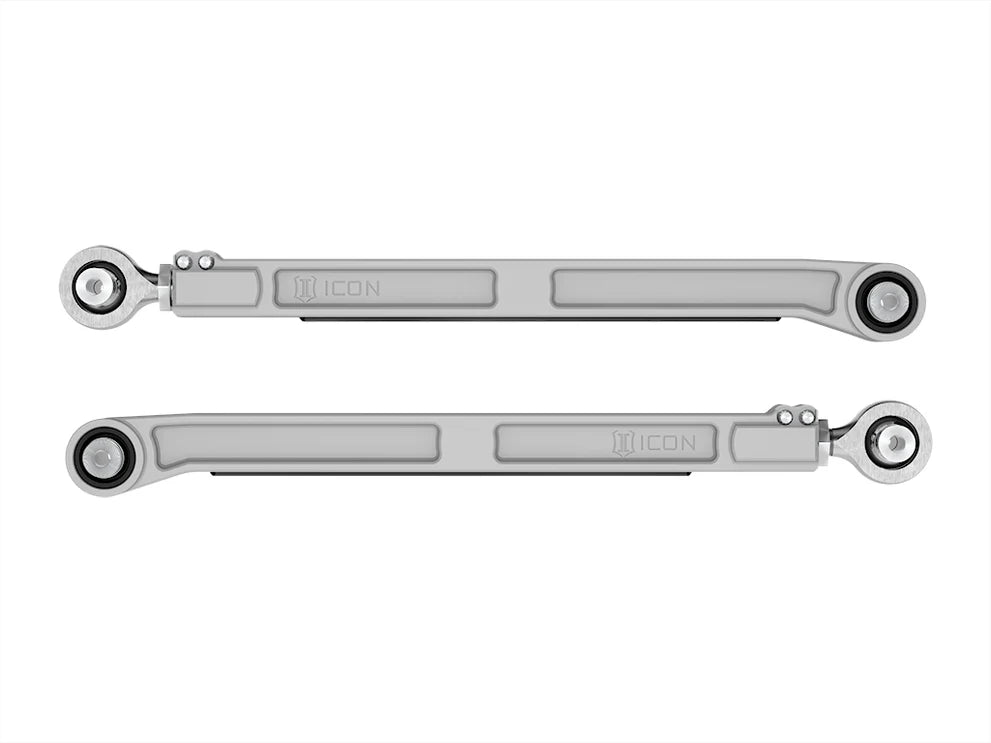

ICON Billet Rear Lower Link Kit
High-strength billet aluminum rear lower links replace the factory links for increased strength, improved axle control, and adjustability.

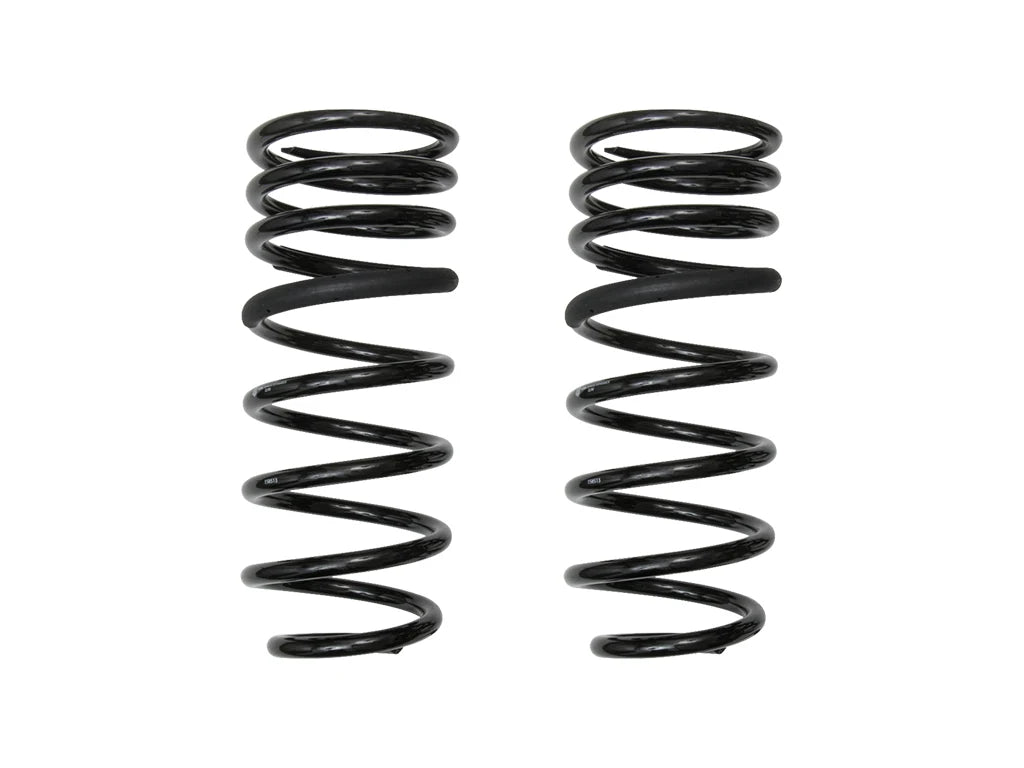

ICON Rear Coil Spring Kit — Your Choice
The correct rear spring package is included according to the suspension setup selected below.
Choose Your Suspension Setup
Daily + Trail - Standard Weight
Uses ICON Triple Rate Rear Coil Springs.
Choose this setup if your Tacoma is primarily used for:
- Daily driving
- Weekend trail use
- Mixed street and off-road driving
- Trucks without substantial permanent rear cargo weight
The triple-rate spring design provides a comfortable primary ride rate with additional support as the suspension travels deeper into its stroke.
Overland - Constant Added Weight
Uses ICON Dual Rate Overland Rear Coil Springs.
Choose this setup if your Tacoma regularly carries constant added rear weight, such as:
- Bed racks
- Rooftop or bed-mounted tents
- Drawer/storage systems
- Aftermarket rear bumpers
- Recovery equipment
- Permanently carried overland gear
This option is intended for trucks that carry additional weight on a regular basis rather than occasionally.
FOX DSC EVO Adjustability
The Performance Elite Series gives the driver considerably more control over suspension behavior than a conventional non-adjustable shock.
FOX's DSC EVO system provides separate high-speed and low-speed compression adjustment, allowing suspension response to be tuned for different terrain, vehicle loads, and driving conditions.
That means the same suspension system can be adjusted toward a more compliant street-oriented setting or increased damping control for demanding off-road use.
Why This Package?
Instead of upgrading individual suspension components one at a time, this package combines premium components from FOX, Camburg, and ICON into one coordinated Tacoma suspension system.
You receive:
Front + rear FOX Performance Elite DSC EVO suspension
Camburg KINETIK billet UCAs
ICON billet rear lower links
Application-specific rear coil springs
Two rear spring configurations
Four UCA color choices
The result is a premium system designed for customers who want significantly more suspension capability and adjustability than a basic lift or shock package.
How to Order
1. Select your Suspension Setup
Choose Daily + Trail - Standard Weight for a normally loaded Tacoma.
Choose Overland - Constant Added Weight if the truck carries substantial permanent rear equipment.
2. Select your UCA Color
Choose:
Red • Gray • Gold • Blue
Your selected UCA color does not change the suspension setup or rear spring configuration.
Fitment
Toyota Tacoma 2024–Current
Designed for applicable coil-spring rear suspension Tacoma models.
Not for Tacoma models equipped with rear leaf springs.
Fitment can vary by Tacoma configuration and installed aftermarket equipment. Verify vehicle configuration before installation.
Professional Installation Recommended
Professional installation and a complete alignment are recommended after installation. Suspension setup and FOX DSC EVO settings should be adjusted according to vehicle weight, accessories, tire configuration, terrain, and intended use.
FOX 2.5 Performance Elite Premium Suspension System
Built for Tacoma owners who want premium adjustable damping, upgraded suspension geometry, stronger rear axle control, and a rear spring configuration selected around how the truck is actually used.
