FOX 3.2 Factory Race + Camburg SLAPPER Ultimate Suspension System

Built as a flagship suspension package for 2024+ Tacoma owners who want substantially more than a conventional lift kit, the FOX 3.2 Factory Race + Camburg SLAPPER Ultimate Suspension System combines FOX Factory Race Series suspension technology with Camburg billet control arms, front and rear hydraulic bump-stop protection, and a comprehensive ICON rear suspension package.

This system is designed around high-performance off-road control, repeated hard impacts, increased suspension capability, and a complete front-to-rear suspension upgrade. Two rear spring configurations allow the system to be matched to either a primarily standard-weight Tacoma or a truck carrying significant permanent overland equipment.

FITMENT NOTICE: This Ultimate suspension system is configured for compatible 2024–Current Toyota Tacoma 4WD models. It is not intended for 2WD applications.

FOX 3.2 Factory Race Series Suspension

At the heart of the system are FOX 3.2 Factory Race Series DSC EVO front coilovers and rear shocks.

The large-body Factory Race architecture provides substantial oil capacity and thermal management for demanding off-road use, while external reservoirs help manage heat during repeated suspension cycling.

FOX's DSC EVO adjustability gives the driver additional control over compression damping, allowing suspension behavior to be tuned around vehicle setup, terrain, load, and driving style.

Rather than starting with a conventional lift and adding supporting components around it, this system begins with FOX's premium Factory Race suspension and builds the Tacoma's front and rear suspension around that foundation.

Camburg KINETIK V2 Billet Upper Control Arms

The factory upper control arms are replaced with Camburg KINETIK V2 billet upper control arms, complementing the increased capability of the FOX front suspension.

Choose your preferred finish:

Gray • Red • Gold • Blue

The selected color applies to the Camburg upper control arms. The remaining suspension components retain their respective manufacturer finishes.

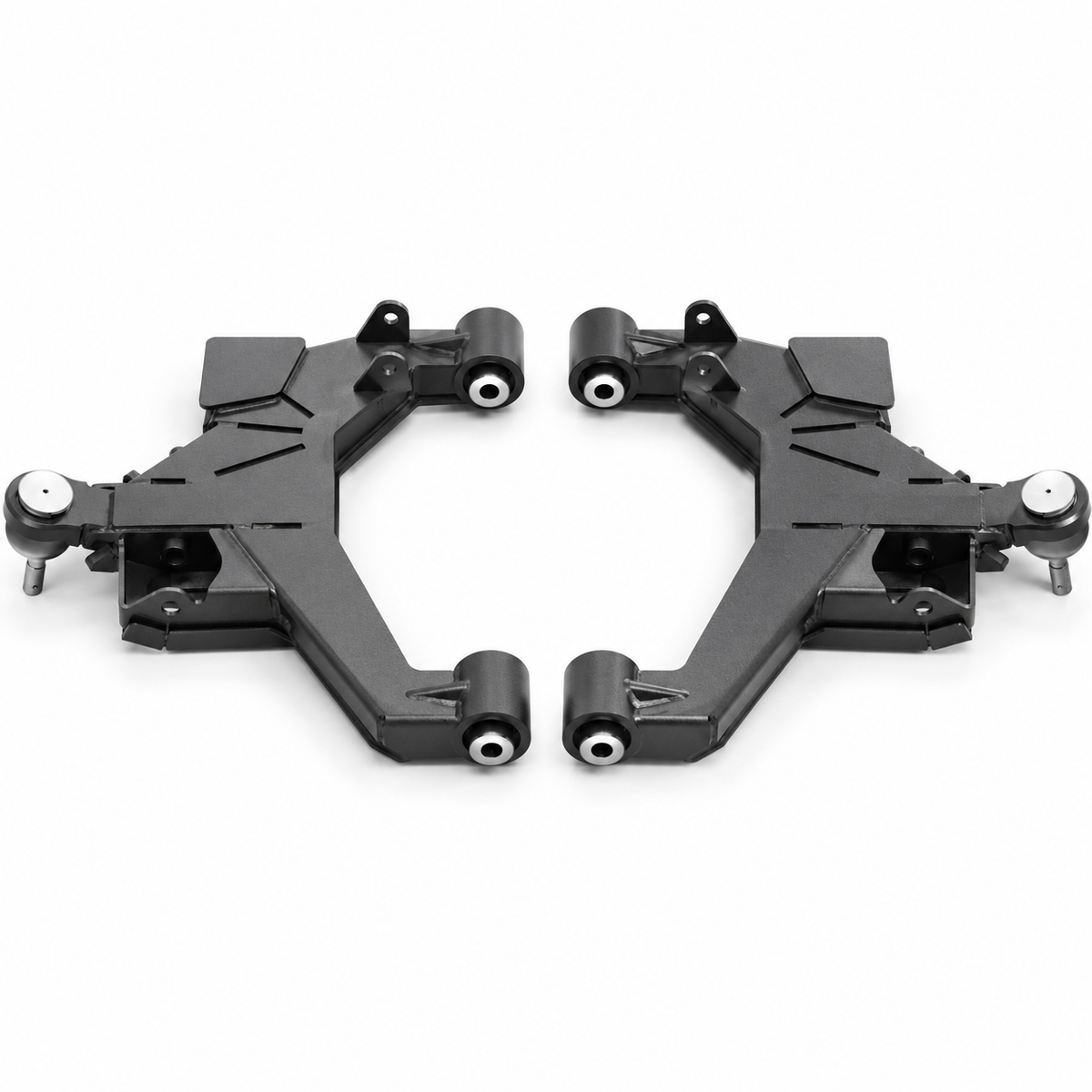

Camburg Performance SLAPPER Lower Control Arms

The front suspension is further upgraded with the Camburg Performance SLAPPER lower control arm system.

This takes the package significantly beyond a typical coilover-and-UCA combination by incorporating a purpose-built lower-control-arm platform designed for serious off-road suspension use.

The SLAPPER lower arms also provide the foundation for the dedicated front hydraulic bump-stop system included with this Ultimate package.

Front Hydraulic Bump-Stop System

The front suspension receives two Camburg KINETIK 2.5 × 2.0 hydraulic bump stops paired with dedicated Camburg SLAPPER bump-stop mounts.

Hydraulic bump stops provide an additional stage of controlled damping as the suspension approaches the end of its compression travel. During severe impacts, this helps progressively manage bottom-out events instead of relying exclusively on the main coilovers and conventional bump stops.

For a Tacoma intended for aggressive trail, desert, and high-speed off-road use, this adds another level of suspension control beyond the primary FOX dampers.

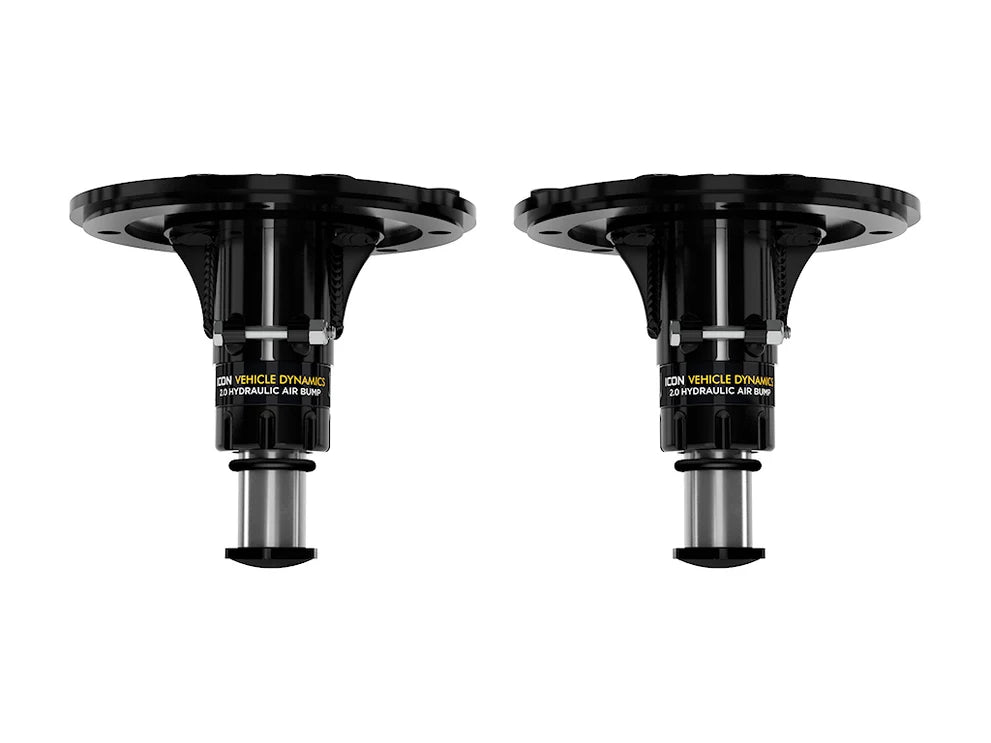

ICON Rear Hydraulic Bump Stops

Hydraulic bottom-out control isn't limited to the front.

The rear receives an ICON 2.0 hydraulic bump-stop system, creating hydraulic bump-stop protection at all four corners of the suspension system.

The rear bump stops provide velocity- and position-sensitive damping near the end of rear suspension travel, helping control severe compression events and complementing the FOX rear shocks.

This front-and-rear hydraulic bump-stop configuration is one of the major features separating this Ultimate system from a conventional premium suspension package.

Complete ICON Rear Suspension System

The rear suspension receives considerably more than shocks and springs.

The Ultimate package includes:

• ICON billet rear lower links
• ICON billet rear upper links
• ICON adjustable rear track bar
• ICON hydraulic rear bump-stop system
• ICON rear coil springs selected for vehicle load

Together, these components replace or upgrade several key elements of the factory rear suspension, creating a much more comprehensive rear suspension package to complement the FOX Factory Race shocks.

4WD Differential Drop

Because this system is configured specifically for the 4WD Tacoma, a front differential-drop kit is included.

Lifting an independent-front-suspension 4WD vehicle changes the operating angles of the front CV axles. The differential drop is included as a supporting geometry component for the lifted 4WD configuration.

Choose Your Rear Suspension Setup

Daily + Trail – Standard Weight

Choose Daily + Trail if your Tacoma normally operates relatively close to its standard vehicle weight.

This configuration is best suited for trucks used for:

• Daily driving
• Highway driving
• Weekend trails
• Desert trips
• Recreational off-roading
• Camping
• Light accessory builds
• Occasional cargo

If your Tacoma only carries additional gear occasionally and spends most of its time relatively unloaded, Daily + Trail is the appropriate choice.

Overland – Constant Added Weight

Choose Overland if your Tacoma carries significant additional equipment on a permanent or near-permanent basis.

Examples include:

• Camper systems
• Rooftop tents
• Heavy bed racks
• Drawer and storage systems
• Recovery equipment
• Permanently carried tools
• Spare fuel or water
• Overland kitchens
• Additional spare tires
• Other substantial permanently installed equipment

This configuration is intended for constant added weight, not occasional heavy cargo.

Choose your spring configuration based on how the Tacoma is equipped during normal everyday operation.

What's Included

Front Suspension

• FOX 3.2 Factory Race Series DSC EVO front coilover system
• Camburg KINETIK V2 billet upper control arm kit
• Camburg Performance SLAPPER lower control arm kit

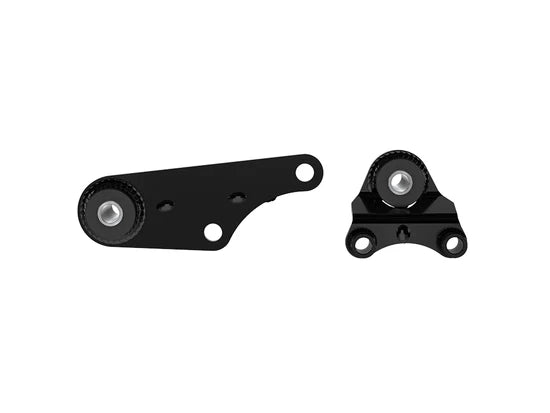

• Camburg SLAPPER front hydraulic bump-stop mounting system
• Two Camburg KINETIK hydraulic front bump stops
• 4WD front differential-drop kit

Rear Suspension

• FOX 3.2 Factory Race Series DSC EVO rear shock system
• ICON billet rear lower link kit
• ICON billet rear upper link kit
• ICON adjustable rear track bar
• ICON 2.0 hydraulic rear bump-stop kit
• Selected ICON rear coil spring configuration

Fitment

Vehicle: Toyota Tacoma
Model Years: 2024–Current
Drivetrain: 4WD ONLY

This package uses a coil-spring rear suspension configuration and should not be ordered for Tacoma models equipped with rear leaf springs.

Because factory equipment can vary by trim and configuration, vehicle compatibility should be verified before installation.

Important Installation Notice

This is not a completely bolt-on suspension system.

Installation of the Camburg front SLAPPER hydraulic bump-stop system requires welding/fabrication.

This Ultimate package should be installed by a qualified off-road fabrication and suspension shop experienced with hydraulic bump stops and high-performance suspension systems.

A complete professional alignment should be performed following installation.

Due to the scope and capability of the system, installers should verify suspension travel, wheel and tire clearance, brake and ABS line routing, CV clearance, bump-stop engagement, and all other relevant clearances throughout the suspension's operating range.

Why Choose the Ultimate System?

This package is not designed to be the least expensive way to lift a Tacoma.

It is designed for the customer who would otherwise assemble a high-end suspension system component by component and wants those major upgrades brought together into one comprehensive package.

You get:

FOX Factory Race suspension for primary damping.

Camburg billet upper and SLAPPER lower control arms for the front suspension.

Camburg hydraulic front bump stops for additional bottom-out control.

ICON hydraulic rear bump stops for rear bottom-out control.

ICON billet lower links, billet upper links, and adjustable track bar to substantially upgrade the rear suspension architecture.

Load-specific ICON rear springs so the system can be configured around how the Tacoma is actually built and used.

The result is a flagship suspension package designed for Tacoma owners building a truck for serious trail use, desert terrain, overland travel, and demanding off-road driving while retaining the adjustability and engineering of FOX Factory Race Series suspension.

Choose Daily + Trail for a primarily standard-weight Tacoma.

Choose Overland for a Tacoma carrying significant permanent rear weight.

Then select your preferred Gray, Red, Gold, or Blue Camburg KINETIK UCA finish to complete the system.
