ICON - Stage 3 Suspension Lift Kit

Upgrade your 2016–2023 Toyota Tacoma with the ICON Stage 3 Suspension System, a complete front and rear suspension package designed for Tacoma owners who want increased wheel travel, improved suspension geometry, and stronger off-road performance without sacrificing everyday drivability.

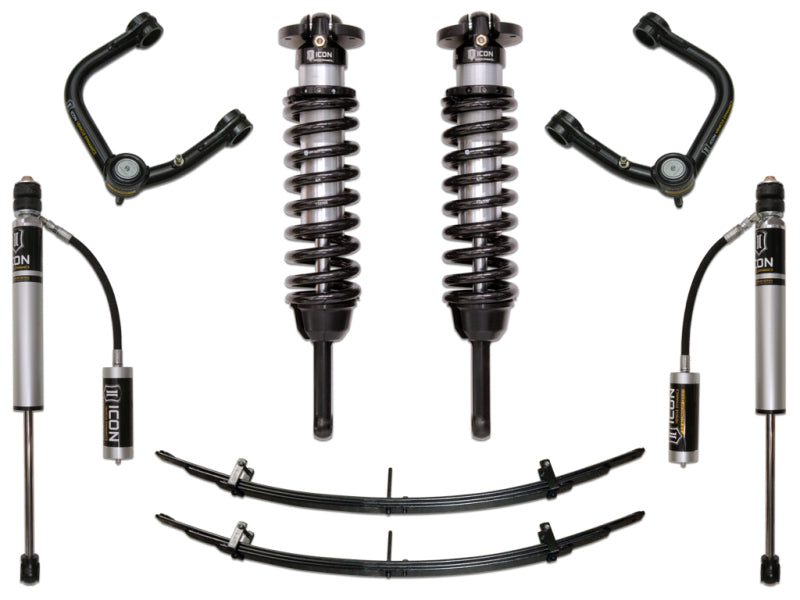

Stage 3 combines ICON 2.5 Extended Travel front coilovers, Delta Joint upper control arms, 2.0 remote reservoir rear shocks, and a rear Add-A-Leaf to create a well-rounded Trail Ready suspension system.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Front Coilovers

  • Adjustable ride height

  • Up to approximately 2.75" of front lift

  • Extended Travel design for increased front suspension travel

  • Vehicle-specific valving

  • Rebuildable and revalveable

  • Complete ICON coilover assembly

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed specifically for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with the factory UCA

• (2) ICON 2.0 VS Remote Reservoir Rear Shocks

  • Remote reservoirs increase oil volume

  • Improved heat management during extended off-road use

  • Vehicle-specific valving

  • Designed to complement the ICON front suspension

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

Choose Your Upper Control Arms

Tubular Delta Joint

A strong, performance-focused option that provides the suspension geometry and articulation benefits of ICON's Delta Joint design while keeping the overall system price lower.

Best for: Customers who prioritize suspension performance and value.

Billet Delta Joint

ICON's premium CNC-machined billet aluminum upper control arm provides the same Stage 3 suspension geometry benefits with premium construction and appearance.

Best for: Customers who want ICON's premium UCA construction and finish.

Both UCA options are designed to provide the suspension geometry and travel required for the Stage 3 system.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

Actual ride height may vary depending on vehicle weight, installed accessories, and vehicle configuration.

Why Choose Stage 3?

Stage 3 is where the ICON Tacoma suspension lineup makes a significant jump in front suspension capability.

Compared with Stage 2, Stage 3 adds:

• Extended Travel front coilovers

• ICON Delta Joint upper control arms

• Increased front suspension travel

• Improved suspension geometry

• Increased articulation

• Better alignment capability for lifted applications

The 2.0 remote reservoir rear shocks and rear Add-A-Leaf provide a balanced rear suspension setup to complement the upgraded front suspension.

Stage 2 vs. Stage 3

Stage 2

• 2.5 standard-travel front coilovers

• Factory upper control arms

• 2.0 remote reservoir rear shocks

• 1.5" Add-A-Leaf

Stage 3

• 2.5 Extended Travel front coilovers

• ICON Delta Joint upper control arms

• Choice of Tubular or Billet UCA

• 2.0 remote reservoir rear shocks

• 1.5" Add-A-Leaf

Choose Stage 3 if increased front suspension travel and upgraded upper control arms are priorities for your Tacoma build.

Best For

• Trail Ready Tacoma builds

• Daily-driven trucks that regularly see off-road use

• Technical trail driving

• Weekend adventure builds

• Increased front suspension travel

• Tacoma owners upgrading their upper control arms

• Customers wanting a complete front and rear ICON suspension package

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 3

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies based on vehicle configuration, weight, and installed accessories.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the Stage 3 performance benefits at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined aluminum upper control arms while retaining the same overall Stage 3 suspension concept.

Both variants include a complete ICON Stage 3 front and rear suspension system.
