ICON - Stage 2 RXT CDCV Rear Suspension Lift Kit - Toyota Tacoma 2016-2023

ICON - Stage 2 RXT CDCV Rear Suspension Lift Kit

Take the rear suspension of your 2016–2023 Toyota Tacoma to the next level with the ICON Stage 2 RXT CDCV Rear Suspension System. Designed for demanding trail use, loaded trucks, and performance-oriented builds, the RXT system combines ICON's multi-rate leaf springs, 2.5 remote reservoir CDCV shocks, and hydraulic bump stops into a complete rear suspension upgrade.

IMPORTANT: This is a rear suspension system only. Front coilovers/shocks and front suspension components are NOT included.

What's Included

• (2) ICON 2.5 RXT Remote Reservoir Rear Shocks with CDCV

  • 2.5" shock bodies

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Vehicle-specific valving

  • Rebuildable and revalveable design

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Multiple spring-rate configurations

  • Allows the rear suspension to be configured around vehicle weight and load

  • Designed to improve ride quality, travel, and load-carrying performance

• ICON Rear Hydraulic Bump Stop Kit

  • Replaces the factory rear bump stops

  • Provides progressive bottom-out control

  • Designed for aggressive off-road suspension use

• ICON 8" Rear U-Bolt Kit

Rear Lift Height

2016–2023 Tacoma: Approximately 1.875–2.625"

Actual rear lift will vary depending on the selected RXT leaf-pack configuration, vehicle weight, accessories, and constant load.

2017–2023 Tacoma TRD Pro: Approximately 1.375–2.125" of rear lift over the factory TRD Pro ride height, depending on configuration and vehicle weight.

Multi-Rate RXT Leaf Springs

One of the biggest advantages of the RXT system is its configurable rear leaf pack.

The RXT leaf springs can be set up in three different spring-rate configurations, allowing the suspension to better match how your Tacoma is actually built and used.

This makes the system an excellent choice for trucks carrying additional equipment such as:

• Bed racks

• Rooftop tents

• Camping and recovery equipment

• Aftermarket bumpers

• Spare tires

• Tools and trail equipment

• Additional constant cargo weight

CDCV Adjustable Rear Shocks

The included Compression Damping Control Valve (CDCV) gives you 10 compression settings, allowing you to adjust rear shock damping for different terrain, loads, and driving conditions.

Turn the adjuster toward a softer setting for increased compliance or increase compression damping when additional control is needed for heavier loads or more aggressive driving.

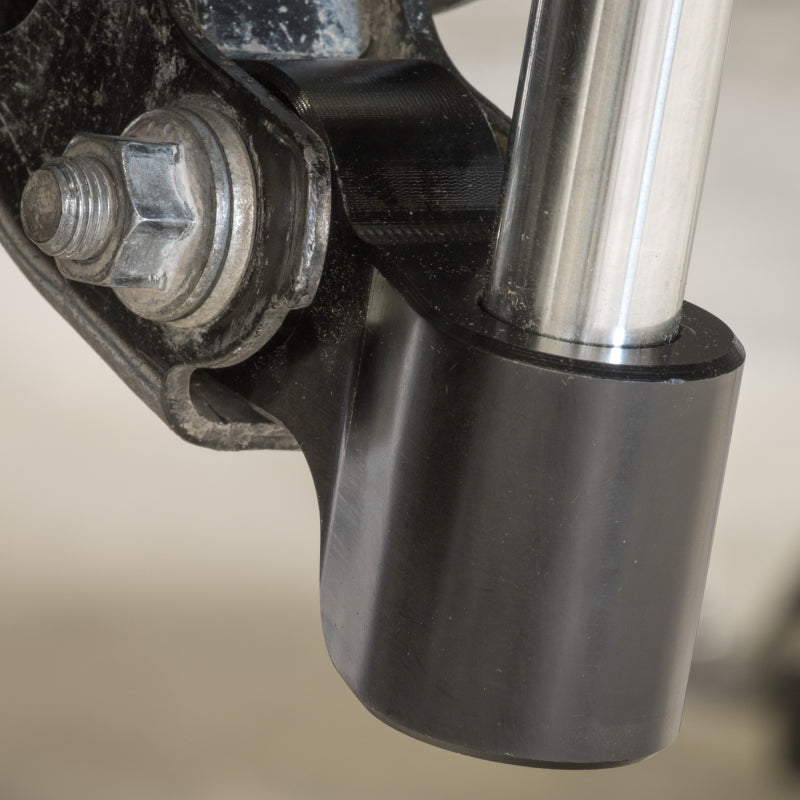

Hydraulic Rear Bump Stops

Unlike a conventional rear suspension upgrade, Stage 2 RXT includes ICON's hydraulic rear bump stop system.

The hydraulic bump stops provide progressive suspension control as the rear suspension approaches full compression, helping reduce harsh bottom-outs during demanding off-road use.

Why Choose Stage 2 RXT?

Stage 2 RXT is designed for Tacoma owners who have outgrown a basic rear shock and Add-A-Leaf setup.

Choose this system if you're looking for:

• Increased rear suspension capability

• Improved rear wheel travel

• Adjustable compression damping

• Multi-rate rear leaf springs

• Better support for additional vehicle weight

• Hydraulic bottom-out protection

• Improved performance on demanding trails

• A rear suspension designed around serious off-road use

When configured as intended with the appropriate ICON suspension components, the RXT system can provide approximately 20% more rear wheel travel compared with the factory configuration.

Best For

• Trail Ready Tacoma builds

• Heavily modified Tacomas

• Overlanding and expedition equipment

• Trucks carrying constant additional weight

• High-speed dirt and desert driving

• Technical trail use

• Customers wanting a major rear suspension upgrade

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: Stage 2 RXT CDCV
ICON Part Number: K53162

Important Before Ordering

This kit upgrades the REAR suspension only.

It does not include:

• Front coilovers

• Front shocks

• Upper control arms

• Any other front suspension components

If you're looking for a complete front-and-rear suspension lift, choose one of our complete ICON Tacoma suspension systems instead.

Actual lift height and ride characteristics will vary based on the RXT leaf-pack configuration, vehicle weight, installed accessories, and constant cargo load.

Professional installation and an inspection of the complete suspension system after installation are recommended.

Sold as a complete ICON Stage 2 RXT CDCV rear suspension system.
