ICON - Stage 3 RXT Rear Suspension Lift Kit

Take your Tacoma's rear suspension performance to the next level with the ICON Stage 3 RXT Rear Suspension System. Designed for serious trail use, loaded overland builds, and high-performance off-road driving, Stage 3 combines ICON's Omega Series adjustable bypass rear shocks, Multi-Rate RXT leaf springs, and hydraulic rear bump stops into a complete rear suspension upgrade.

Compared with Stage 2 RXT, Stage 3 steps up to ICON's 2.5 Omega Series two-tube bypass shocks, giving drivers significantly more control over compression and rebound damping.

IMPORTANT: This is a REAR suspension system only. Front coilovers, front shocks, and upper control arms are NOT included.

What's Included

• (2) ICON 2.5 Omega Series RXT Rear Shocks

  • Remote reservoir design

  • Two-tube bypass technology

  • Independently adjustable compression and rebound damping

  • Up to 28 compression/rebound setting combinations

  • Vehicle-specific tuning

  • Rebuildable and revalveable

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Three spring-rate configurations

  • Allows the rear suspension to be configured around vehicle weight and constant load

  • Designed to increase suspension travel while improving load support and ride quality

• ICON Rear Hydraulic Bump Stop Kit

  • Replaces the factory rear bump stops

  • Progressive hydraulic bottom-out control

  • Helps reduce harsh impacts during aggressive suspension compression

• ICON 8" Rear U-Bolt Kit

Rear Lift Height

2016–2023 Tacoma: Approximately 1.875–2.625"

2017–2023 Tacoma TRD Pro: Approximately 1.375–2.125" over factory ride height

Actual lift height will vary depending on RXT leaf-pack configuration, vehicle weight, installed accessories, and constant cargo load.

Omega Series Adjustable Bypass Shocks

The major upgrade from Stage 2 RXT to Stage 3 RXT is the ICON 2.5 Omega Series rear shock system.

Omega shocks utilize a two-tube bypass design and allow the driver to independently adjust compression and rebound damping.

With up to 28 compression/rebound combinations, the rear suspension can be tuned for different vehicle loads, terrain, and driving styles.

This additional adjustability is especially valuable for Tacomas that transition between daily driving, loaded adventure travel, technical trails, and faster off-road terrain.

Multi-Rate RXT Leaf Springs

ICON's RXT leaf packs feature three configurable spring rates, allowing the rear suspension to better match how your Tacoma is built.

This makes Stage 3 RXT especially useful for trucks carrying additional constant weight from equipment such as:

• Bed racks

• Rooftop tents

• Aftermarket rear bumpers

• Spare tires

• Camping equipment

• Recovery equipment

• Tools and trail gear

• Additional cargo

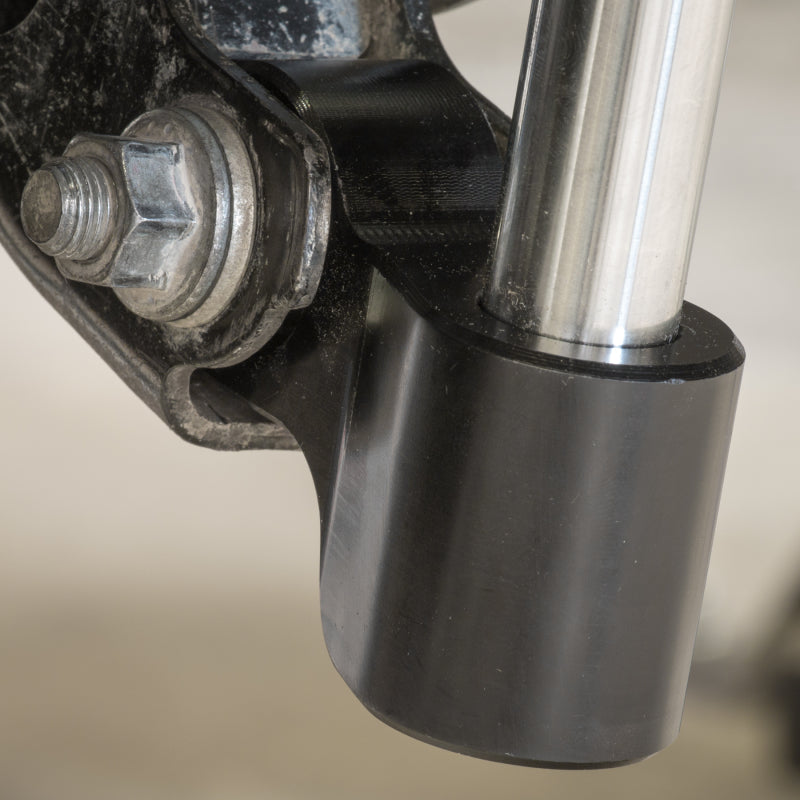

Hydraulic Rear Bump Stops

Stage 3 RXT also includes ICON's hydraulic rear bump stop system.

Rather than relying solely on conventional factory bump stops, the hydraulic system provides progressive control as the suspension approaches full compression, helping reduce harsh bottom-outs during demanding off-road driving.

Why Choose Stage 3 RXT?

Choose Stage 3 RXT if you want:

• High-performance rear suspension capability

• Adjustable compression and rebound damping

• Omega Series bypass shock technology

• Multi-rate rear leaf springs

• Improved support for additional vehicle weight

• Increased rear suspension travel

• Hydraulic bottom-out protection

• Greater suspension tuning capability

When configured as intended with the appropriate ICON suspension components, the RXT system can provide approximately 20% more rear wheel travel compared with the factory configuration.

Stage 2 RXT vs. Stage 3 RXT

Stage 2 RXT

• 2.5 RXT remote reservoir rear shocks

• CDCV compression adjustment

• Multi-Rate RXT leaf packs

• Hydraulic rear bump stops

Stage 3 RXT

• 2.5 Omega Series two-tube bypass rear shocks

• Adjustable compression and rebound damping

• Up to 28 damping combinations

• Multi-Rate RXT leaf packs

• Hydraulic rear bump stops

Choose Stage 3 RXT if maximum rear shock adjustability and tuning capability are priorities for your Tacoma build.

Best For

• Trail Ready Tacoma builds

• High-performance off-road driving

• Technical trail use

• Desert and higher-speed dirt driving

• Heavily modified Tacomas

• Loaded overland and expedition builds

• Trucks carrying constant additional weight

• Drivers who want adjustable compression and rebound damping

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: Stage 3 RXT Omega

Important Before Ordering

This kit upgrades the REAR suspension only.

It does not include:

• Front coilovers

• Front shocks

• Upper control arms

• Other front suspension components

If you're looking for a complete front-and-rear suspension system, choose one of our complete ICON Tacoma suspension systems.

Actual lift height and ride characteristics will vary depending on leaf-pack configuration, vehicle weight, installed accessories, and constant cargo load.

Professional installation is recommended.

Sold as a complete ICON Stage 3 RXT Omega rear suspension system.
