ICON - Stage 10 RXT CDCV Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the highest level of ICON's RXT suspension lineup with the ICON Stage 10 RXT Omega CDCV Suspension System. This complete front and rear suspension package combines ICON's 2.5 Extended Travel CDCV front coilovers, Delta Joint upper control arms, Multi-Rate RXT rear leaf springs, and 2.5 Omega Series bypass rear shocks into a highly capable and extensively adjustable Tacoma suspension system.

Stage 10 is designed for serious Trail Ready builds, demanding off-road use, loaded adventure trucks, and drivers who want increased suspension travel with extensive control over front and rear damping.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDCV

  • Extended Travel configuration

  • Remote reservoirs for increased oil capacity

  • 10-position compression damping adjustment

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable design

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Complete replacement for the factory rear leaf springs

  • Three configurable spring-rate settings

  • Allows the rear suspension to be configured around vehicle weight and constant load

  • Designed to increase rear suspension travel and capability

• (2) ICON 2.5 RXT Omega Series Bypass Rear Shocks

  • RXT-specific design

  • 2.5" shock bodies

  • Remote reservoirs

  • Two-tube bypass technology

  • Independently adjustable compression and rebound damping

  • Up to 28 compression/rebound setting combinations

  • Designed for increased rear suspension travel

  • Rebuildable and revalveable

• ICON 8" Rear U-Bolt Kit

10-Position CDCV Front Adjustability

The Stage 10 front coilovers feature ICON's Compression Damping Control Valve (CDCV).

With 10 compression settings, you can quickly change front shock damping based on terrain, vehicle load, and driving style.

Run a softer setting when additional compliance is desired or increase compression damping when you need additional suspension control for rough terrain, heavier loads, or more aggressive off-road driving.

Adjustments can be made without disassembling or revalving the shocks.

Omega Series Adjustable Bypass Rear Shocks

Stage 10 pairs the RXT rear suspension with ICON's premium 2.5 Omega Series bypass rear shocks.

The Omega design provides multiple damping zones along with independently adjustable compression and rebound damping, allowing significantly more control over rear suspension behavior than a conventional remote reservoir shock.

With up to 28 compression/rebound combinations, the rear suspension can be tuned around your Tacoma's weight, terrain, and driving conditions.

Multi-Rate RXT Rear Leaf Springs

Stage 10 completely replaces the factory rear leaf packs with ICON's Multi-Rate RXT leaf spring system.

The RXT leaf packs can be configured in three different spring-rate settings, allowing the suspension to better match how your Tacoma is actually equipped.

This is especially beneficial for trucks carrying additional constant weight from:

• Bed racks

• Rooftop tents

• Aftermarket bumpers

• Spare tires

• Recovery equipment

• Camping equipment

• Tools and trail gear

• Additional cargo

This configurable design allows Stage 10 to work with everything from lighter Tacoma builds to trucks carrying substantial additional equipment.

Increased Rear Suspension Travel

The RXT-specific Omega rear shocks are designed around the increased travel capabilities of ICON's RXT rear suspension.

When installed as part of the complete intended ICON system, the RXT setup can provide up to approximately 20% additional rear shock travel compared with the factory configuration.

This additional travel helps the rear suspension maintain control and tire contact over rough and uneven terrain.

Choose Your Upper Control Arms

Tubular Delta Joint

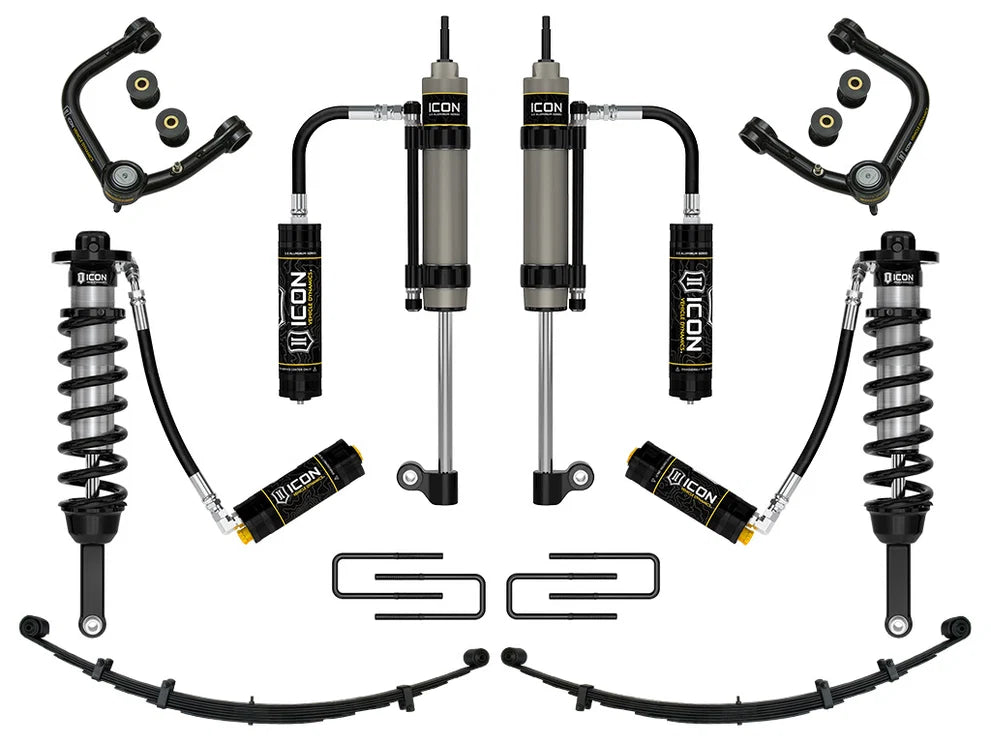

ICON's Tubular Delta Joint UCA provides the strength, geometry, clearance, and additional suspension travel required for the Stage 10 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

Billet Delta Joint

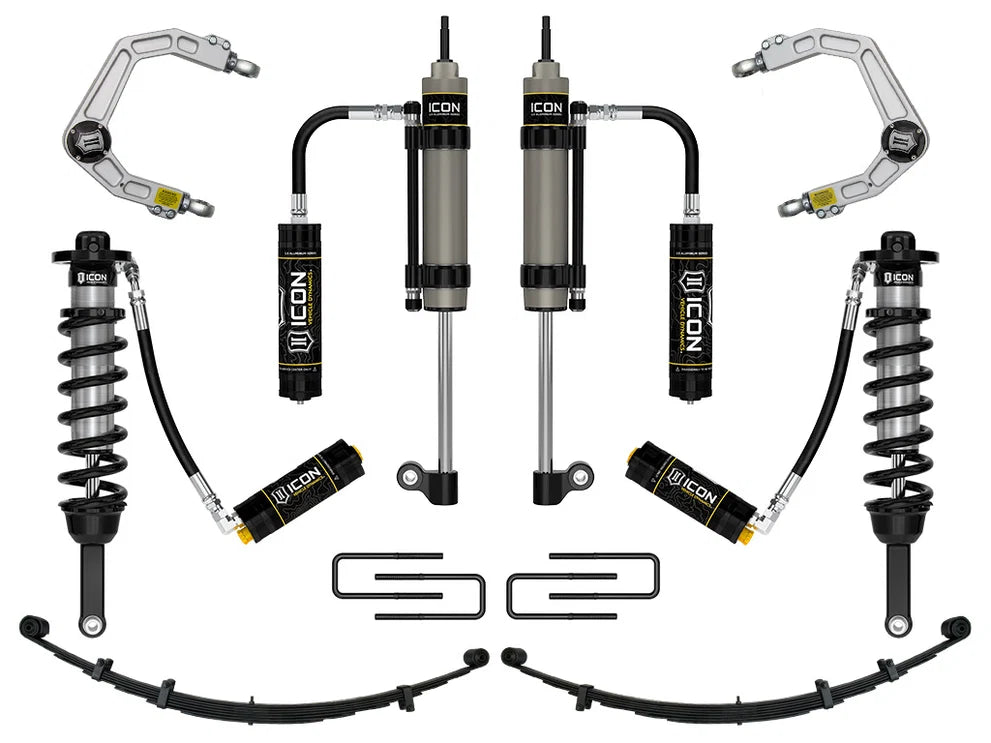

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both UCA options are designed to work with the included Extended Travel front coilovers.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.875–2.625"

Rear lift varies depending on RXT leaf-pack configuration, vehicle weight, and installed accessories.

Actual ride height may vary depending on vehicle configuration.

Why Choose Stage 10?

Stage 10 brings together some of ICON's most capable suspension technologies into one complete Tacoma system:

• 2.5 Extended Travel front coilovers

• Remote reservoirs front and rear

• 10-position CDCV front compression adjustment

• Delta Joint upper control arms

• Complete Multi-Rate RXT rear leaf springs

• Three configurable rear spring rates

• 2.5 Omega Series bypass rear shocks

• Adjustable rear compression and rebound damping

• Up to 28 rear damping combinations

• Increased rear suspension travel

This makes Stage 10 an excellent choice for Tacoma owners looking for a complete high-performance suspension package rather than upgrading individual components separately.

Stage 9 vs. Stage 10

Stage 9 RXT CDCV

• 2.5 Extended Travel CDCV front coilovers

• 10-position front compression adjustment

• Multi-Rate RXT rear leaf packs

• 2.5 RXT CDCV rear shocks

• 10-position rear compression adjustment

Stage 10 RXT Omega CDCV

• 2.5 Extended Travel CDCV front coilovers

• 10-position front compression adjustment

• Multi-Rate RXT rear leaf packs

• 2.5 RXT Omega Series bypass rear shocks

• Independent rear compression and rebound adjustment

• Up to 28 rear damping combinations

Choose Stage 10 if you want the complete RXT suspension system combined with ICON's more advanced Omega bypass rear shock technology.

Best For

• High-performance Trail Ready Tacoma builds

• Serious and frequent off-road use

• Technical trails

• Desert and faster dirt-road driving

• Loaded adventure and overland builds

• Tacomas carrying constant additional weight

• Drivers wanting increased rear suspension travel

• Customers who want extensive suspension tuning capability

• Tacoma owners looking for the highest Stage RXT suspension package

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 10 RXT Omega CDCV

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Rear lift height varies based on RXT spring configuration, vehicle weight, and installed accessories.

• ICON's advertised increased rear shock travel requires installation of the complete intended suspension system.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 10 RXT Omega suspension package at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 10 RXT Omega shock and leaf-spring package.

Both variants include a complete ICON Stage 10 RXT Omega front and rear suspension system.
