ICON - Stage 10 RXT Omega CDXS Suspension Lift Kit - Toyota Tacoma 2016-2023

ICON - Stage 10 RXT Omega CDXS Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the top of ICON’s CDXS suspension lineup with the ICON Stage 10 RXT Omega CDXS Suspension System. This premium system combines advanced front shock adjustability, ICON’s complete Multi-Rate RXT rear suspension, and Omega Series bypass rear shocks for serious trail and high-performance off-road builds.

Stage 10 features 2.5 Extended Travel CDXS front coilovers with independent high- and low-speed compression adjustment, paired with 2.5 RXT Omega Series bypass rear shocks featuring adjustable compression and rebound damping.

Choose between Tubular or Billet Delta Joint Pro upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDXS
  • Extended Travel configuration
  • Remote reservoirs
  • Independent low-speed compression adjustment
  • Independent high-speed compression adjustment
  • 10 settings for each CDXS adjuster
  • Adjustable front ride height
  • Vehicle-specific valving
  • Rebuildable and revalveable
• ICON Delta Joint Pro Upper Control Arms
  • Choice of Tubular or Billet
  • Designed for lifted Tacoma applications
  • Improved suspension geometry and alignment capability
  • Designed to maximize available front suspension travel
• (2) ICON Multi-Rate RXT Rear Leaf Packs
  • Complete replacement for the factory rear leaf springs
  • Three configurable spring-rate settings
  • Allows the rear suspension to be configured around vehicle weight and constant load
  • Designed for increased rear suspension travel
• (2) ICON 2.5 RXT Omega Series Bypass Rear Shocks
  • RXT-specific design
  • 2.5" shock bodies
  • Remote reservoirs
  • Two-tube bypass technology
  • Independently adjustable compression and rebound damping
  • Up to 28 compression/rebound setting combinations
  • Designed around the increased travel of the RXT rear suspension
• ICON 8" Rear U-Bolt Kit

Advanced CDXS Front Adjustability

ICON’s CDXS technology allows high-speed and low-speed compression damping to be adjusted independently.

Each adjuster provides 10 settings, allowing you to fine-tune the front suspension around your Tacoma, terrain, and driving style.

Low-Speed Compression

Low-speed compression primarily affects slower chassis movements such as:

• Body roll
• Brake dive
• Cornering
• Weight transfer
• Gradual terrain changes

This allows you to increase chassis control without necessarily making the suspension excessively firm over sharper impacts.

High-Speed Compression

High-speed compression primarily affects faster shock movements caused by:

• Rocks
• Potholes
• Washboard roads
• Sharp trail impacts
• Faster off-road terrain

This lets you tune impact control separately from general chassis movement.

Omega Series Adjustable Bypass Rear Shocks

Stage 10 pairs the advanced CDXS front suspension with ICON’s premium 2.5 RXT Omega Series bypass rear shocks.

Rather than using the CDXS rear shocks found in Stage 9, Stage 10 moves to Omega bypass technology with independently adjustable compression and rebound damping.

With up to 28 compression/rebound combinations, you can fine-tune the rear suspension around vehicle load, terrain, and driving conditions.

Multi-Rate RXT Rear Suspension

Stage 10 completely replaces the factory rear leaf packs with ICON’s Multi-Rate RXT leaf spring system.

The RXT leaf packs offer three spring-rate configurations, allowing you to better match the rear suspension to how your Tacoma is actually equipped.

This is especially useful for trucks carrying constant additional weight from equipment such as:

• Bed racks
• Rooftop tents
• Aftermarket bumpers
• Spare tires
• Recovery equipment
• Camping equipment
• Tools and trail gear
• Additional cargo

Increased Rear Suspension Travel

The RXT-specific Omega shocks are designed around the increased travel capability of ICON’s RXT rear suspension.

When installed as part of the complete intended ICON system, the RXT configuration can provide up to approximately 20% additional rear shock travel compared with the factory configuration.

This additional travel helps the suspension maintain control and tire contact over rough and uneven terrain.

Stage 9 CDXS vs. Stage 10 CDXS

Stage 9 RXT CDXS

• 2.5 Extended Travel CDXS front coilovers
• Independent high- and low-speed front compression adjustment
• Multi-Rate RXT leaf springs
• 2.5 RXT CDXS rear shocks
• Independent high- and low-speed rear compression adjustment

Stage 10 RXT Omega CDXS

• 2.5 Extended Travel CDXS front coilovers
• Independent high- and low-speed front compression adjustment
• Multi-Rate RXT leaf springs
• 2.5 RXT Omega Series bypass rear shocks
• Independent rear compression and rebound adjustment
• Up to 28 rear damping combinations

Choose Stage 10 if you want CDXS front tuning combined with ICON’s advanced Omega bypass rear shock technology.

Choose Your Upper Control Arms

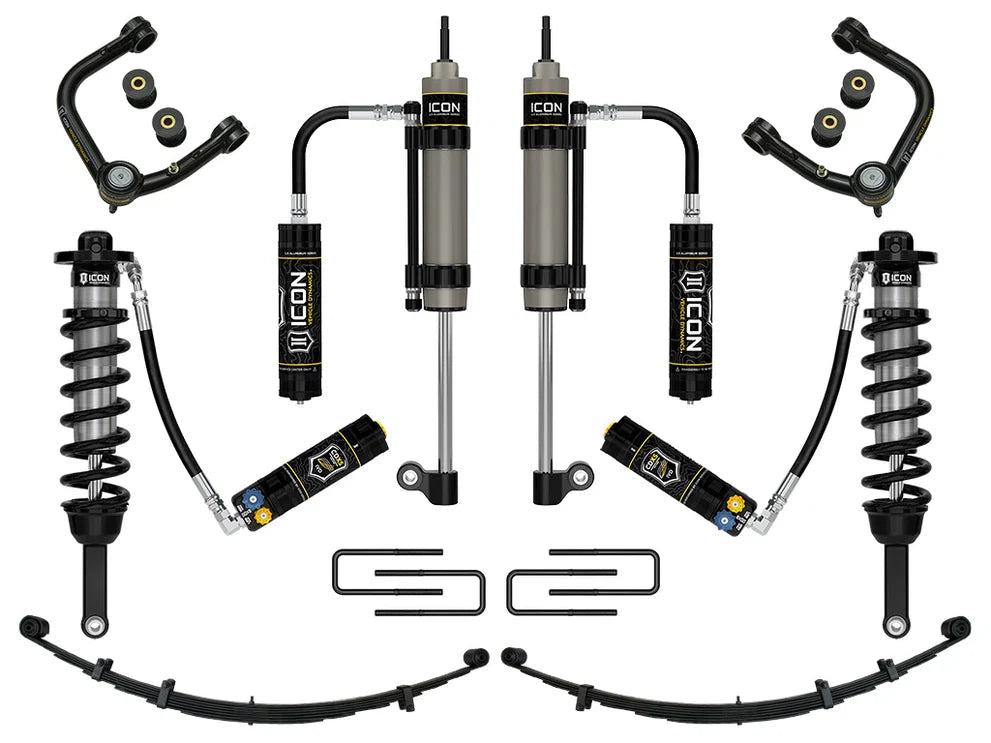

Tubular Delta Joint Pro

ICON’s Tubular Delta Joint Pro UCA provides the strength, geometry, clearance, and suspension travel required for the Stage 10 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

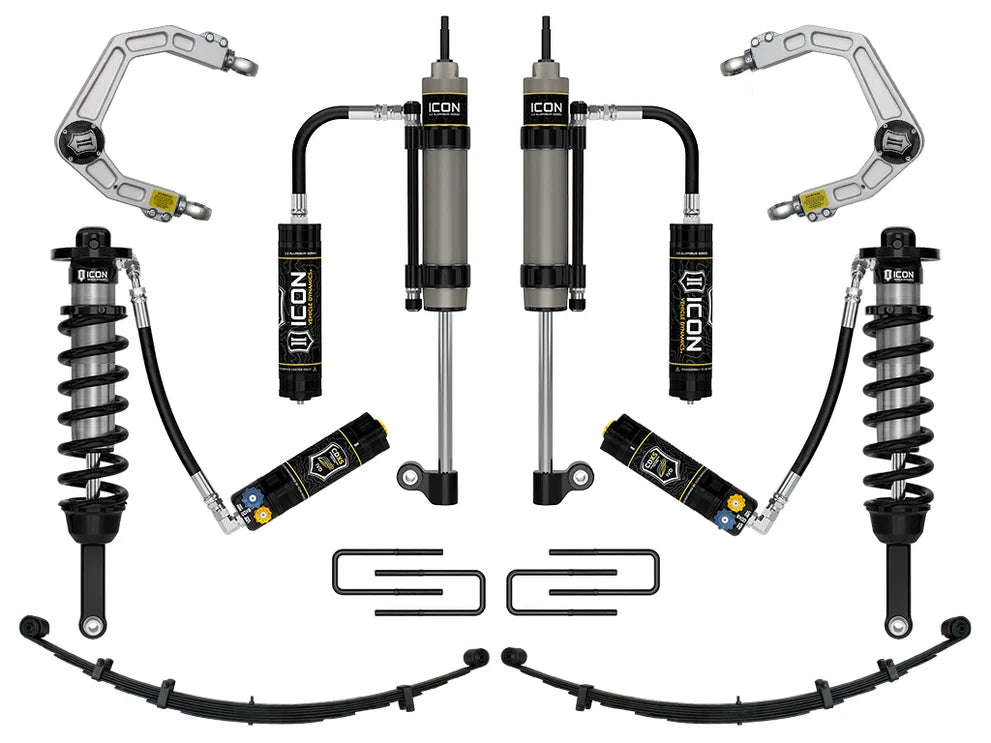

Billet Delta Joint Pro

ICON’s premium CNC-machined billet aluminum Delta Joint Pro UCA combines the geometry and travel required by the Extended Travel suspension with premium construction and appearance.

Best for: Customers wanting ICON’s premium UCA construction and finish.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"
• Rear: Approximately 1.875–2.625"

Rear lift varies depending on RXT leaf-pack configuration, vehicle weight, and installed accessories.

Why Choose Stage 10 RXT Omega CDXS?

Stage 10 brings together some of ICON’s most advanced Tacoma suspension technologies in one complete package:

• 2.5 Extended Travel CDXS front coilovers
• Independent high- and low-speed front compression adjustment
• 10 settings per CDXS adjuster
• Delta Joint Pro upper control arms
• Complete Multi-Rate RXT rear leaf suspension
• Three configurable rear spring rates
• 2.5 RXT Omega Series bypass rear shocks
• Independent rear compression and rebound adjustment
• Up to 28 rear damping combinations
• Increased rear suspension travel
• Remote reservoirs front and rear

Best For

• Premium Trail Ready Tacoma builds
• Serious and frequent off-road use
• Technical trails
• Desert and faster dirt-road driving
• Loaded adventure and overland builds
• Tacomas carrying constant additional weight
• Drivers wanting increased rear suspension travel
• Customers wanting extensive suspension adjustability
• Drivers looking for ICON’s top-tier RXT/CDXS suspension package

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 10 RXT Omega CDXS

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.
• Rear lift varies based on RXT spring configuration, vehicle weight, and installed accessories.
• ICON’s advertised increased rear travel requires installation of the complete intended suspension system.
• Larger tires may require trimming or additional modifications depending on tire size, wheel offset, and backspacing.
• Professional alignment is recommended after installation.
• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint Pro if you want the complete Stage 10 RXT Omega CDXS suspension package at the lower entry price.

Choose Billet Delta Joint Pro if you want ICON’s premium CNC-machined billet aluminum upper control arms while retaining the same Stage 10 RXT Omega CDXS suspension package.

Both variants include the complete ICON Stage 10 RXT Omega CDXS front and rear suspension system.
