ICON - Stage 4 Suspension Lift Kit

Upgrade your 2016–2023 Toyota Tacoma with the ICON Stage 4 Suspension System, a complete front and rear suspension package designed for drivers who want increased wheel travel, improved suspension geometry, and better shock performance during demanding off-road use.

Stage 4 builds on the Stage 3 platform by upgrading the front suspension to ICON 2.5 Extended Travel Remote Reservoir Coilovers. The increased oil capacity and improved heat management of the remote reservoir design help maintain consistent shock performance during longer trail runs and more aggressive off-road driving.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers

  • Remote reservoir design

  • Adjustable front ride height

  • Extended Travel configuration

  • Increased oil capacity and improved heat management

  • Vehicle-specific valving

  • Rebuildable and revalveable design

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.0 VS Remote Reservoir Rear Shocks

  • Remote reservoirs for increased oil volume

  • Improved heat management during extended off-road use

  • Vehicle-specific valving

  • Matched to complement the ICON front suspension

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds approximately 1.5" of rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

Choose Your Upper Control Arms

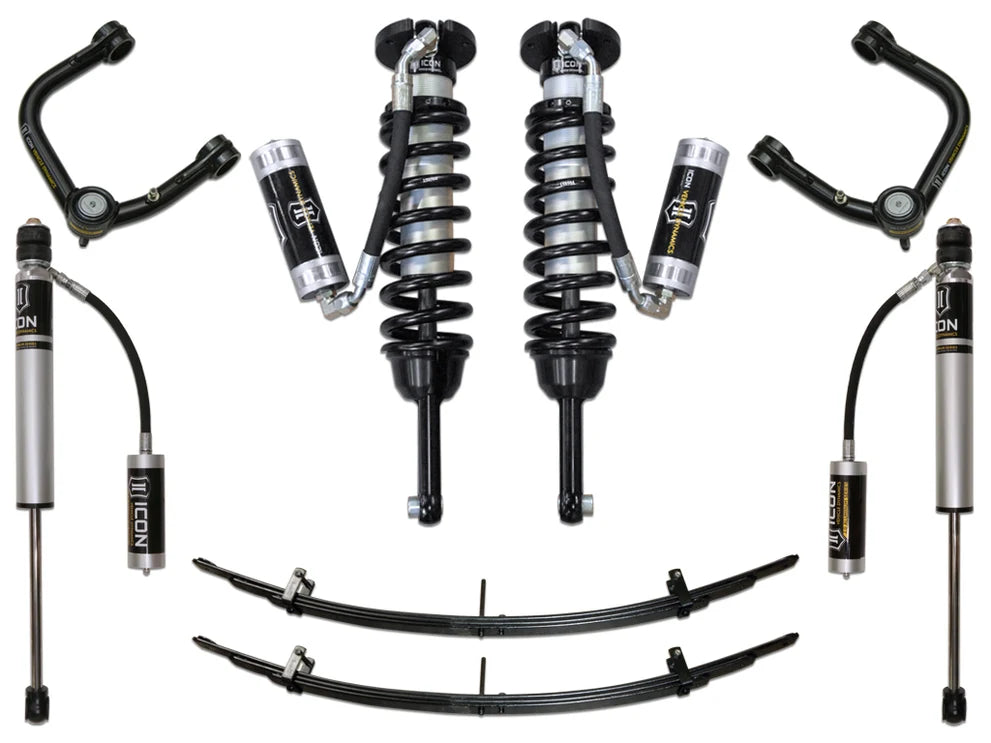

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the geometry, strength, and additional suspension travel needed for the Stage 4 system while keeping the overall package price lower.

Best for: Customers focused on performance and value.

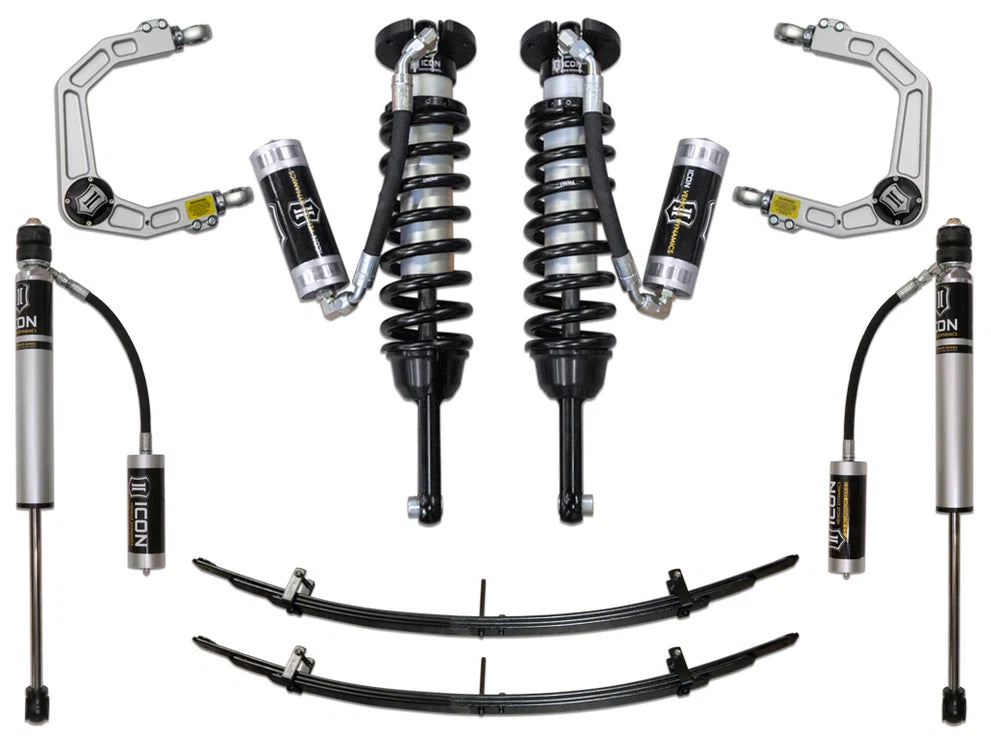

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA option and billet construction.

Both options are designed to provide the suspension geometry and travel required for the Stage 4 system.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

2017–2023 Tacoma TRD Pro

• Front: Approximately 0–1.25" over factory TRD Pro ride height

• Rear: Approximately 1" over factory TRD Pro ride height

Actual ride height can vary depending on vehicle weight, accessories, and suspension setup.

Why Choose Stage 4?

Stage 4 is designed for Tacoma owners who want the Extended Travel capability of Stage 3 with an additional upgrade in front shock performance.

The major Stage 4 upgrade is the addition of remote reservoirs to the front 2.5 coilovers.

Remote reservoirs provide additional shock oil capacity and improved heat management, helping the shocks maintain more consistent damping during extended periods of demanding suspension use.

Stage 3 vs. Stage 4

Stage 3

• 2.5 Extended Travel front coilovers

• Delta Joint upper control arms

• 2.0 remote reservoir rear shocks

• 1.5" rear Add-A-Leaf

Stage 4

• 2.5 Extended Travel Remote Reservoir front coilovers

• Delta Joint upper control arms

• 2.0 remote reservoir rear shocks

• 1.5" rear Add-A-Leaf

Choose Stage 4 if your Tacoma regularly sees longer trail runs, rough terrain, or more demanding off-road driving where additional shock oil capacity and heat management are beneficial.

Best For

• Trail Ready Tacoma builds

• Regular off-road and trail use

• Technical trails

• Longer off-road trips

• Desert and faster dirt-road driving

• Drivers wanting increased front suspension travel

• Customers wanting remote reservoirs front and rear

• Daily-driven Tacomas that see demanding weekend off-road use

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 4

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 4 suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 4 shock configuration.

Both variants include a complete ICON Stage 4 front and rear suspension system.
