ICON - Stage 5 Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the next level with the ICON Stage 5 Suspension System, a complete front and rear suspension package designed for serious trail use, demanding off-road driving, and Tacoma owners who want increased suspension capability without sacrificing everyday drivability.

Stage 5 builds on the Stage 4 system by upgrading the rear suspension to ICON 2.5 Aluminum Series Remote Reservoir Rear Shocks. Combined with 2.5 Extended Travel Remote Reservoir front coilovers and ICON Delta Joint upper control arms, Stage 5 delivers a substantial increase in suspension performance from front to rear.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers

  • Remote reservoir design

  • Adjustable front ride height

  • Extended Travel configuration

  • Increased oil capacity for improved heat management

  • Vehicle-specific valving

  • Rebuildable and revalveable design

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.5 Aluminum Series Remote Reservoir Rear Shocks

  • Larger 2.5" shock bodies

  • Remote reservoirs

  • 7/8" shock shafts

  • Increased oil volume and heat capacity

  • Vehicle-specific valving

  • Designed for increased control during demanding off-road use

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

Choose Your Upper Control Arms

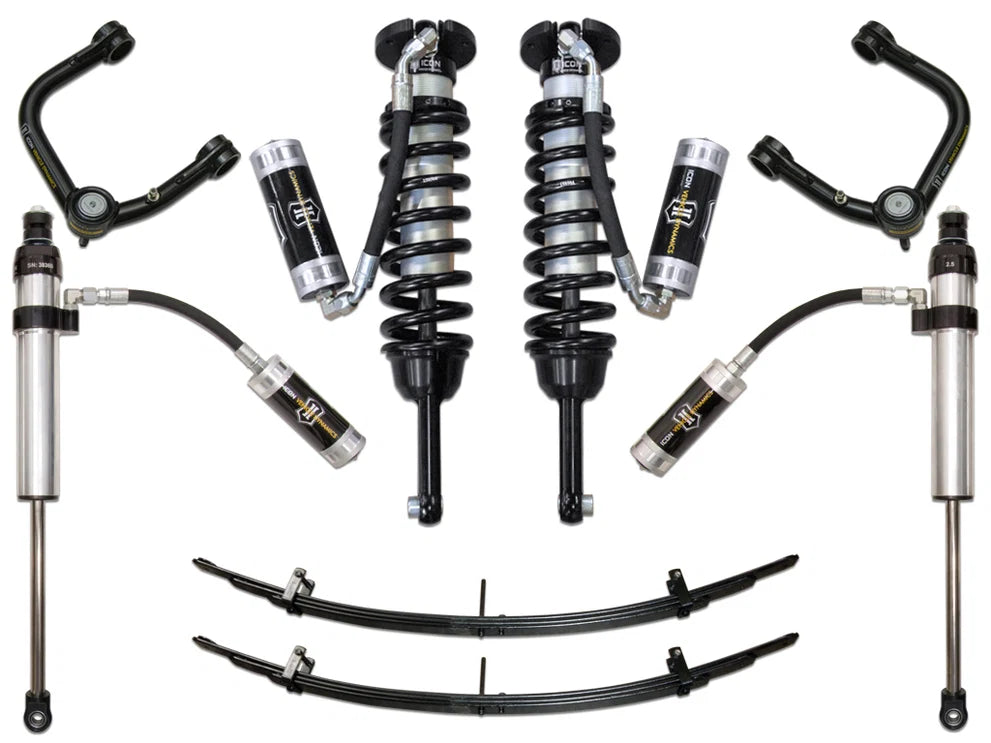

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the strength, geometry, and additional suspension travel needed for the Stage 5 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

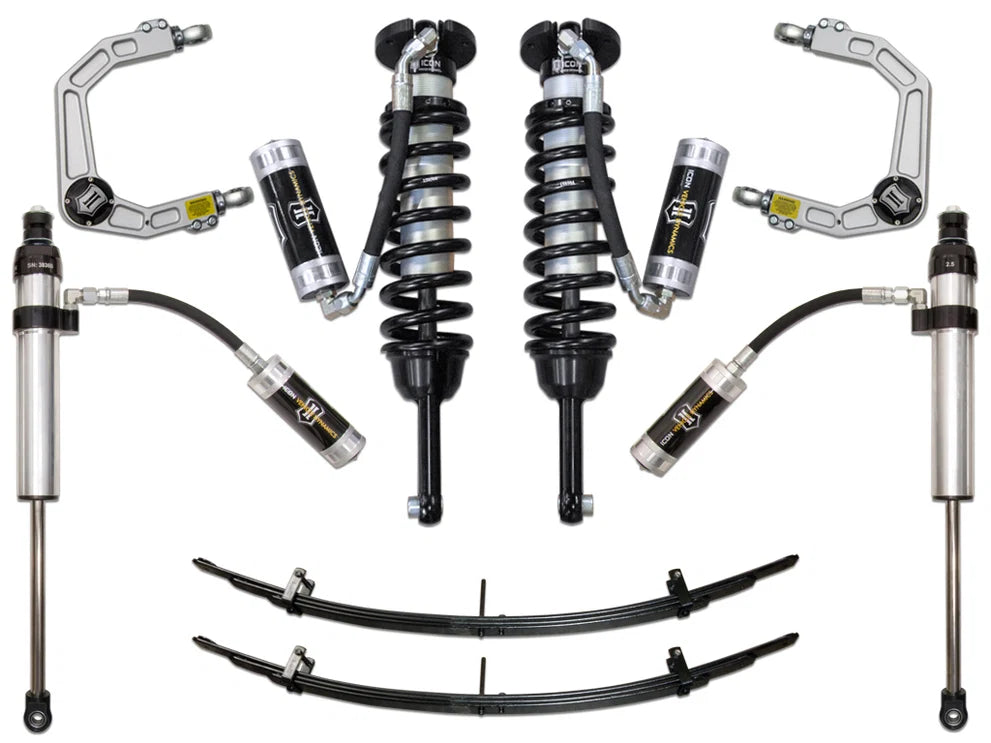

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers who want ICON's premium UCA construction and finish.

Both options provide the suspension geometry and travel required for the Stage 5 system.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

Actual ride height may vary depending on vehicle weight, installed accessories, and vehicle configuration.

Why Choose Stage 5?

Stage 5 is where the rear suspension receives a major performance upgrade.

Compared with Stage 4, the 2.0 rear shocks are replaced by larger 2.5 Aluminum Series Remote Reservoir shocks.

The larger shock bodies provide increased oil capacity and greater damping capability, while the remote reservoirs help manage heat during extended suspension use.

This makes Stage 5 particularly well suited for Tacoma owners who regularly drive rough trails, faster dirt roads, desert terrain, or other conditions where the suspension is working continuously.

Stage 4 vs. Stage 5

Stage 4

• 2.5 Extended Travel Remote Reservoir front coilovers

• Delta Joint upper control arms

• 2.0 Remote Reservoir rear shocks

• 1.5" rear Add-A-Leaf

Stage 5

• 2.5 Extended Travel Remote Reservoir front coilovers

• Delta Joint upper control arms

• 2.5 Aluminum Series Remote Reservoir rear shocks

• 1.5" rear Add-A-Leaf

Choose Stage 5 if you want the increased rear shock capacity and damping performance of ICON's larger 2.5" rear shocks.

Best For

• Trail Ready Tacoma builds

• Regular and demanding trail use

• Technical off-road terrain

• Desert and faster dirt-road driving

• Longer off-road trips

• Tacoma owners wanting 2.5" shocks front and rear

• Daily-driven trucks that see serious weekend off-road use

• Drivers wanting increased suspension control and heat management

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 5

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 5 suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 5 shock package.

Both variants include a complete ICON Stage 5 front and rear suspension system.
