ICON - Stage 6 CDCV Suspension Lift Kit

Take control of your Tacoma's suspension with the ICON Stage 6 CDCV Suspension System, a premium front and rear suspension package designed for drivers who want serious off-road capability with the ability to adjust suspension performance for different terrain, vehicle loads, and driving conditions.

Stage 6 builds on the Stage 5 system by adding ICON Compression Damping Control Valves (CDCV) to both the front and rear 2.5" remote reservoir shocks. With 10 compression settings, you can quickly adjust damping from softer to firmer without changing springs or revalving the shocks.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDCV

  • Extended Travel design

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.5 Remote Reservoir Rear Shocks with CDCV

  • 2.5" shock bodies

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Increased oil volume and heat capacity

  • Vehicle-specific tuning

  • Designed to complement the adjustable front suspension

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

10-Position CDCV Adjustability

The major advantage of Stage 6 is driver-adjustable compression damping at all four shocks.

ICON's CDCV adjusters provide 10 compression settings, allowing you to change how firmly the shocks respond to suspension movement.

Run a softer setting when you want additional compliance, then increase compression damping when you need additional suspension control for heavier loads, rough terrain, or more aggressive driving.

No shock disassembly or revalving is required to make these adjustments.

Choose Your Upper Control Arms

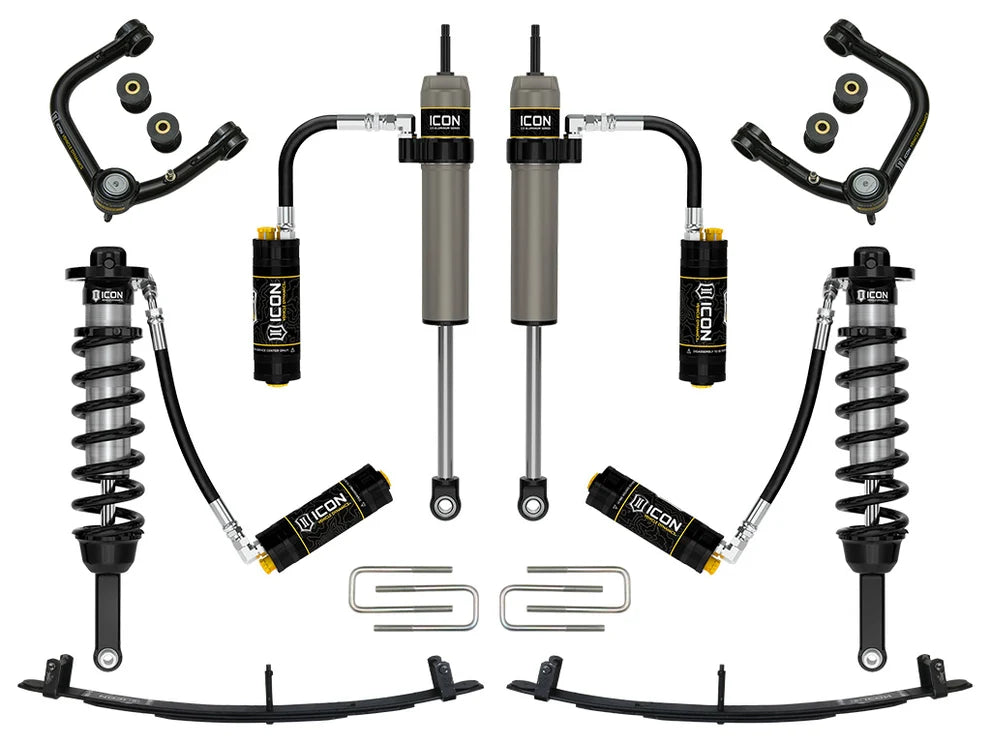

Tubular Delta Joint

ICON's Tubular Delta Joint UCA delivers the suspension geometry, strength, and additional travel required for the Stage 6 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

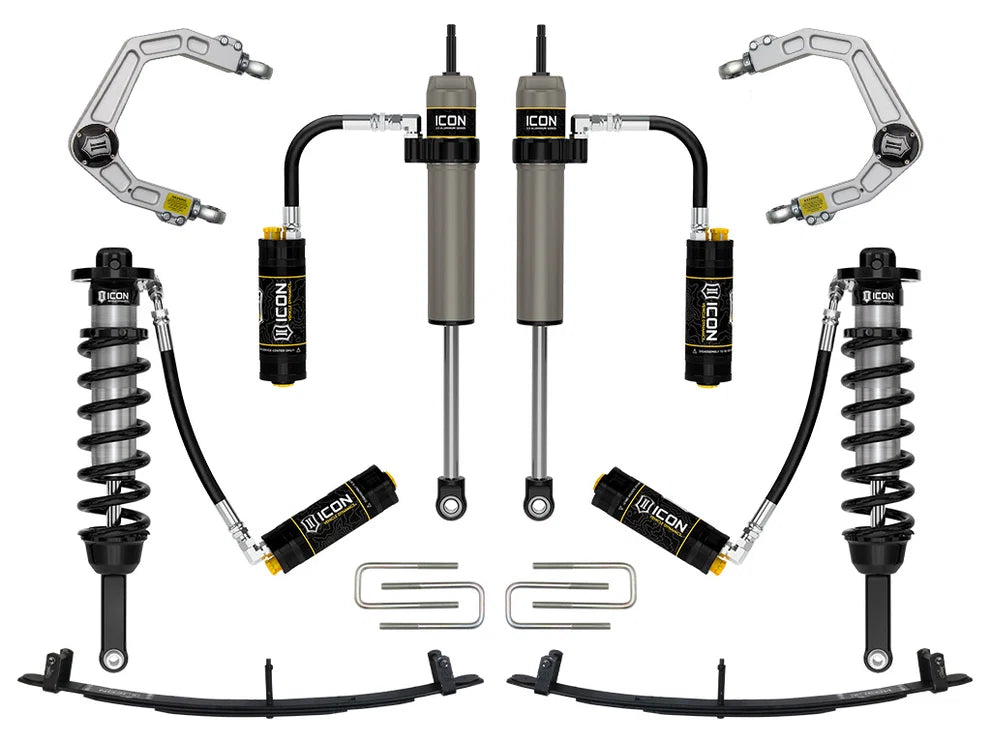

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers who want ICON's premium UCA construction and finish.

Both UCA options provide the geometry and suspension travel required for the Stage 6 system.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

2017–2023 Tacoma TRD Pro

• Front: Approximately 0–1.25" over factory ride height

• Rear: Approximately 1" over factory ride height

Actual ride height may vary depending on vehicle weight, accessories, and suspension setup.

Why Choose Stage 6?

Stage 6 is designed for Tacoma owners who want the performance of ICON's 2.5" remote reservoir suspension with the added ability to tune shock damping.

Compared with Stage 5, Stage 6 adds:

• Front CDCV compression adjustment

• Rear CDCV compression adjustment

• 10 damping settings

• Greater control over suspension feel

• Easier tuning for changing terrain and vehicle loads

This makes Stage 6 particularly useful for Tacomas that serve multiple purposes—from daily driving and unloaded trail use to loaded trips and more aggressive off-road driving.

Stage 5 vs. Stage 6

Stage 5

• 2.5 Extended Travel remote reservoir front coilovers

• 2.5 remote reservoir rear shocks

• Fixed vehicle-specific damping

• Delta Joint upper control arms

Stage 6 CDCV

• 2.5 Extended Travel remote reservoir front coilovers

• 2.5 remote reservoir rear shocks

• 10-position CDCV front adjustment

• 10-position CDCV rear adjustment

• Delta Joint upper control arms

Choose Stage 6 if you want the ability to adjust your suspension instead of being limited to a fixed shock setting.

Best For

• Trail Ready Tacoma builds

• Serious trail and off-road use

• Technical terrain

• Desert and faster dirt-road driving

• Loaded adventure and overland builds

• Tacomas that frequently change between loaded and unloaded configurations

• Drivers who want adjustable suspension

• Customers wanting 2.5" remote reservoir shocks front and rear

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 6 CDCV

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 6 CDCV suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 6 CDCV shock package.

Both variants include a complete ICON Stage 6 CDCV front and rear suspension system.
