ICON - Stage 6 CDXS Suspension Lift Kit

Take complete control of your 2016–2023 Toyota Tacoma's suspension with the ICON Stage 6 CDXS Suspension System. Designed for serious trail use and drivers who want more precise suspension tuning, Stage 6 CDXS combines ICON's 2.5 Extended Travel remote reservoir front coilovers, 2.5 remote reservoir rear shocks, Delta Joint upper control arms, and rear Add-A-Leaf into a complete front and rear suspension package.

The key upgrade is ICON's CDXS technology, which provides independently adjustable low-speed and high-speed compression damping at both the front and rear shocks.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDXS

  • Extended Travel design

  • Remote reservoirs for increased oil capacity

  • Independently adjustable low-speed compression

  • Independently adjustable high-speed compression

  • 10 settings for each compression adjuster

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.5 Remote Reservoir Rear Shocks with CDXS

  • 2.5" shock bodies

  • Remote reservoirs

  • Independently adjustable low-speed compression

  • Independently adjustable high-speed compression

  • 10 settings for each compression adjuster

  • Increased oil volume and heat capacity

  • Vehicle-specific tuning

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

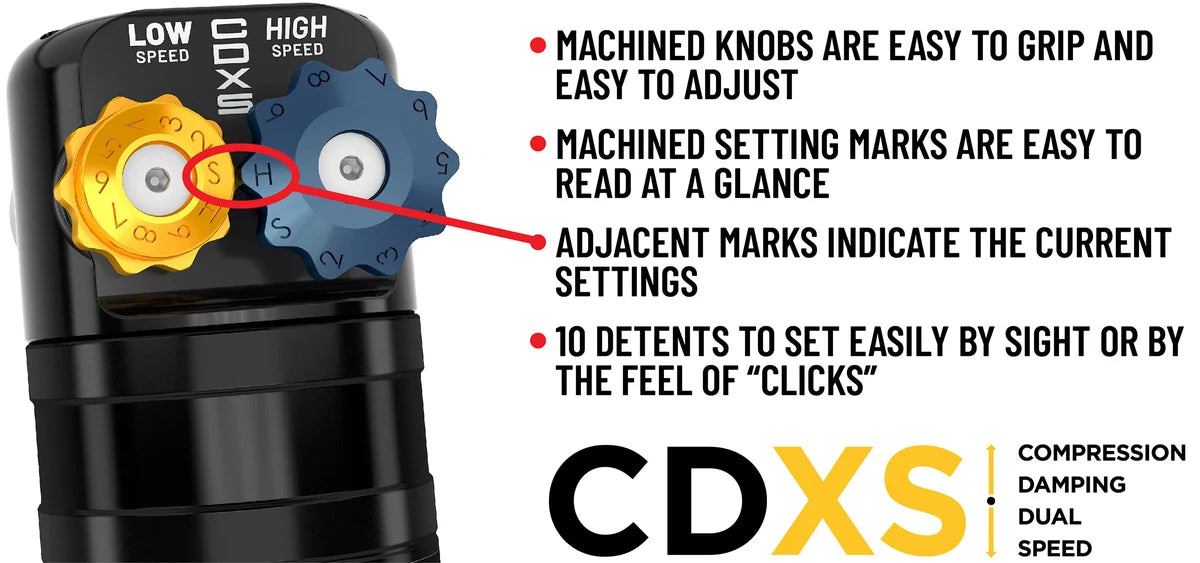

What Is CDXS?

ICON's Compression Damping eXtreme Select (CDXS) technology takes suspension adjustability beyond the traditional single compression adjuster.

CDXS allows high-speed and low-speed compression damping to be adjusted independently, with 10 settings available for each.

This gives you much more control over how your Tacoma's suspension responds to different types of terrain and driving conditions.

Low-Speed Compression

Low-speed compression adjustment primarily affects slower suspension movements such as:

• Body roll

• Brake dive

• Weight transfer

• Cornering

• Gradual terrain changes

Increasing low-speed compression can provide a firmer and more controlled feel without necessarily making the suspension overly harsh over sharp impacts.

High-Speed Compression

High-speed compression adjustment affects faster shock movements caused by impacts such as:

• Potholes

• Rocks

• Washboard roads

• Sharp trail impacts

• Faster off-road terrain

This allows you to tune impact control separately from the Tacoma's general handling characteristics.

CDXS vs. CDCV

Stage 6 CDCV

• One compression damping adjuster

• 10 compression settings

• Adjusts overall compression damping

Stage 6 CDXS

• Independent low-speed compression adjustment

• Independent high-speed compression adjustment

• 10 settings for each adjuster

• Greater control over suspension behavior

Choose CDXS if you want more precise suspension tuning and the ability to adjust how your Tacoma responds to body movement separately from sharper off-road impacts.

Choose Your Upper Control Arms

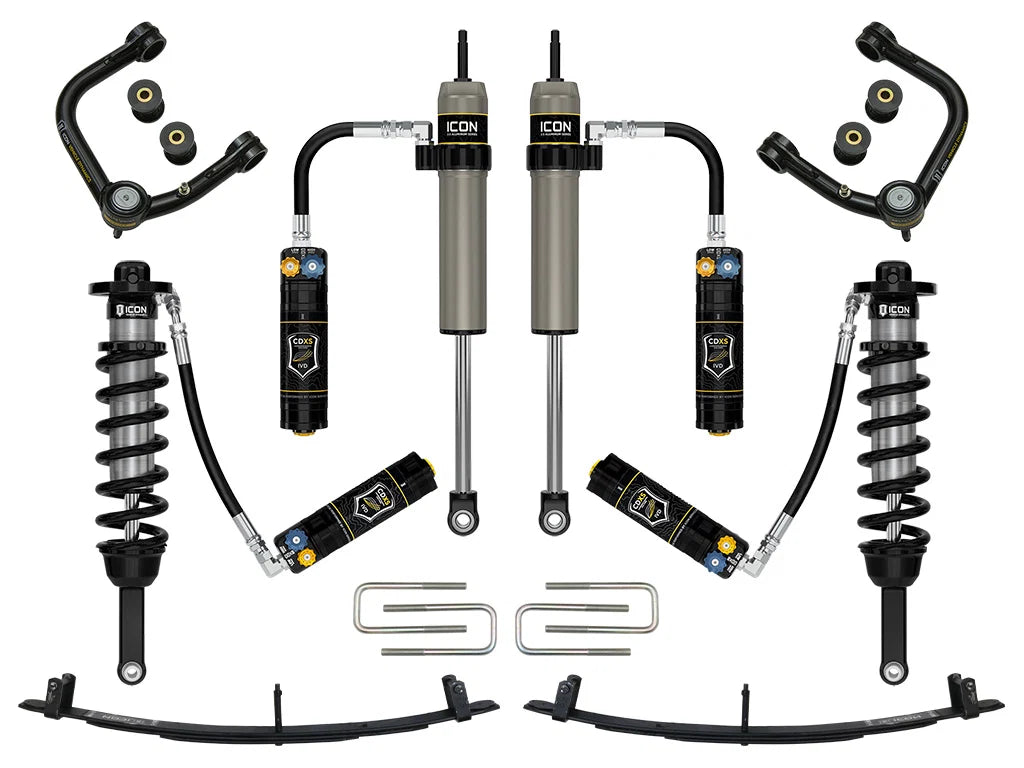

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the geometry, strength, clearance, and additional suspension travel required for the Stage 6 CDXS system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

Billet Delta Joint

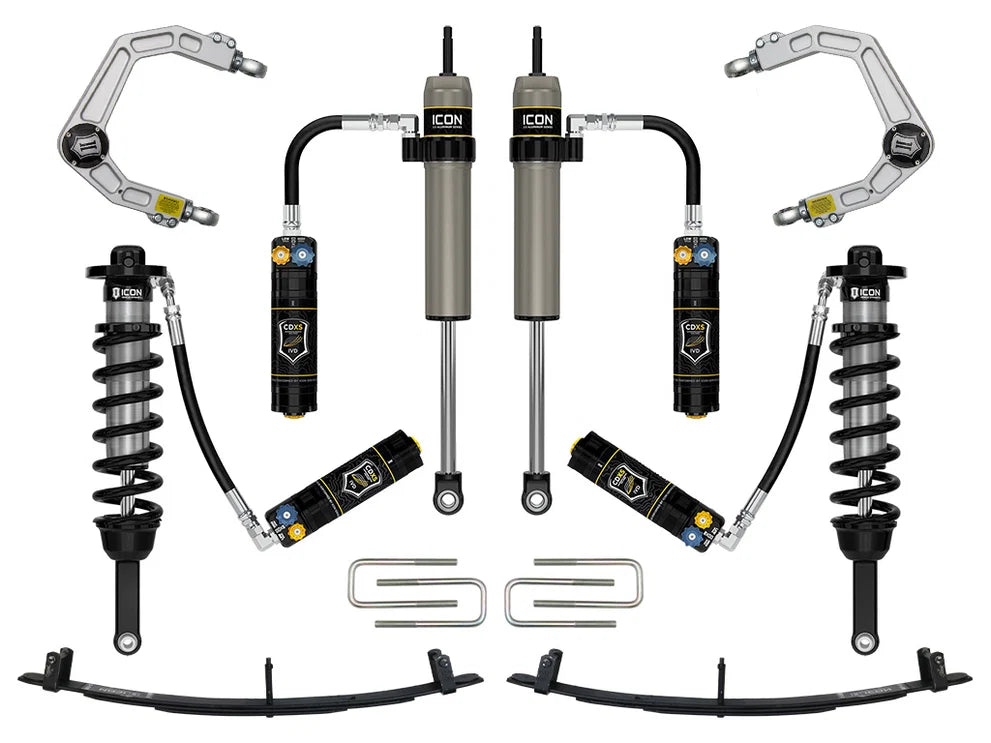

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both options are designed to work with the included Extended Travel front coilovers.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

Actual ride height may vary depending on vehicle weight, installed accessories, and suspension configuration.

Why Choose Stage 6 CDXS?

Stage 6 CDXS is designed for Tacoma owners who want a premium adjustable suspension system that can be fine-tuned around different driving conditions.

Key features include:

• 2.5 Extended Travel front coilovers

• 2.5 rear shocks

• Remote reservoirs front and rear

• Independent high-speed compression adjustment

• Independent low-speed compression adjustment

• 10 settings for each CDXS adjuster

• Delta Joint upper control arms

• Rear Add-A-Leaf

• Complete front and rear suspension package

This makes Stage 6 CDXS especially useful for Tacomas that transition between daily driving, trail use, loaded trips, and faster off-road terrain.

Best For

• Premium Trail Ready Tacoma builds

• Serious trail and off-road use

• Technical terrain

• Desert and faster dirt-road driving

• Loaded adventure builds

• Drivers who frequently change terrain or vehicle load

• Customers who want precise suspension tuning

• Tacoma owners wanting adjustable 2.5" remote reservoir shocks front and rear

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 6 CDXS

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 6 CDXS suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 6 CDXS shock package.

Both variants include a complete ICON Stage 6 CDXS front and rear suspension system.
