ICON - Stage 7 CDCV Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the highest level of ICON's CDCV suspension lineup with the ICON Stage 7 Suspension System. Designed for serious trail use and demanding off-road driving, Stage 7 combines 2.5 Extended Travel CDCV front coilovers with ICON 2.5 Omega Series bypass rear shocks for increased suspension travel, heat management, and extensive damping adjustability.

Stage 7 builds on Stage 6 by replacing the CDCV rear shocks with ICON's Omega Series adjustable bypass rear shocks, giving you significantly more control over rear suspension performance.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDCV

  • Extended Travel configuration

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.5 Omega Series Bypass Remote Reservoir Rear Shocks

  • 2.5" shock bodies

  • Remote reservoirs

  • Two-tube bypass technology

  • Independently adjustable compression and rebound damping

  • Up to 28 compression/rebound setting combinations

  • Vehicle-specific tuning

  • Rebuildable and revalveable

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

Front CDCV Adjustability

The Stage 7 front coilovers feature ICON's Compression Damping Control Valve (CDCV).

With 10 compression settings, you can quickly change front shock damping from softer to firmer depending on terrain, vehicle load, and driving style.

Run a softer setting for additional compliance or increase compression damping when additional suspension control is needed.

Omega Series Adjustable Bypass Rear Shocks

The major upgrade from Stage 6 to Stage 7 happens at the rear.

ICON's 2.5 Omega Series bypass shocks provide multiple damping zones along with independently adjustable compression and rebound damping.

With up to 28 compression/rebound combinations, the rear suspension can be tuned around your Tacoma's load, terrain, and driving conditions.

This gives Stage 7 substantially more rear suspension tuning capability than a conventional remote reservoir shock.

Choose Your Upper Control Arms

Tubular Delta Joint

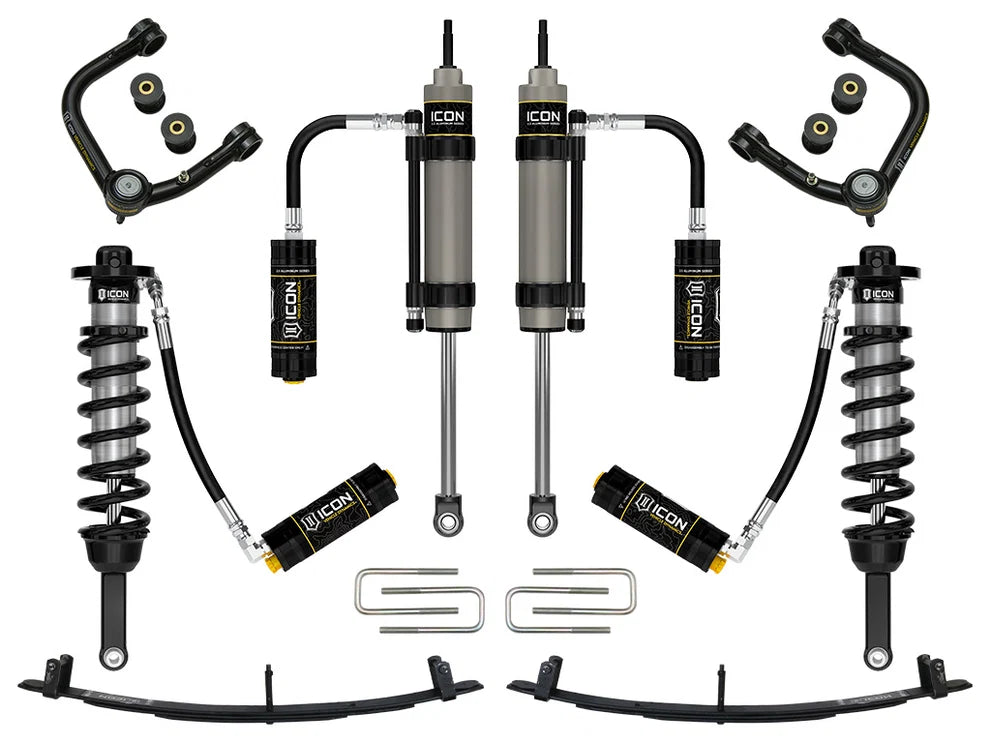

ICON's Tubular Delta Joint UCA provides the geometry, strength, and additional suspension travel required for the Stage 7 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

Billet Delta Joint

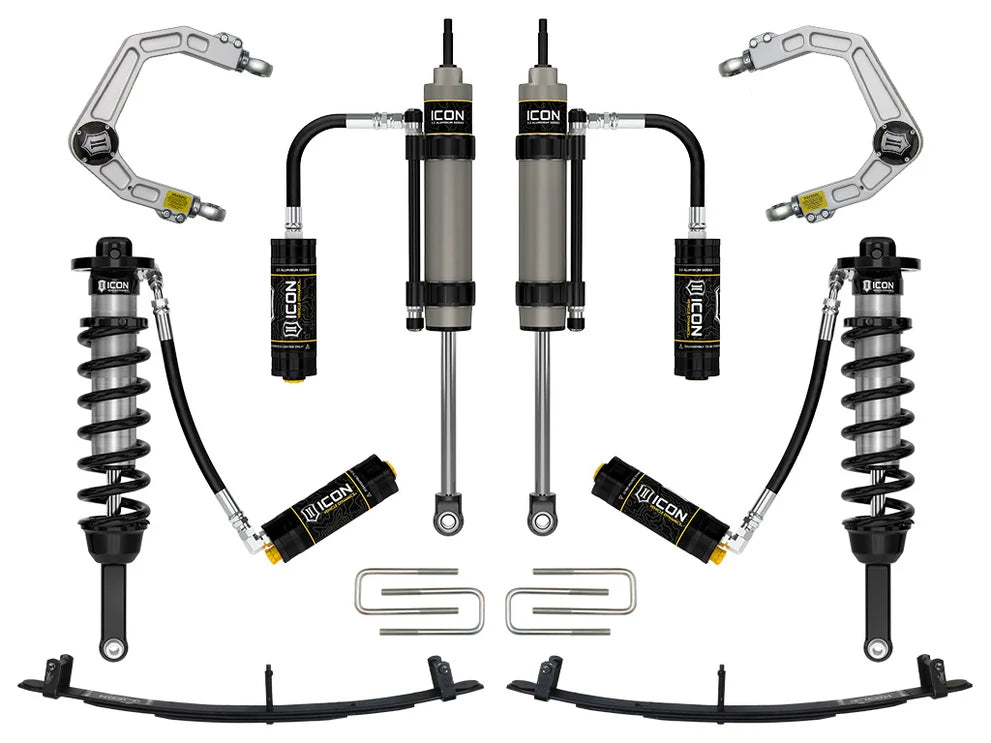

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both options provide the suspension geometry and travel required for the Stage 7 system.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

Actual ride height may vary depending on vehicle weight, installed accessories, and suspension configuration.

Why Choose Stage 7?

Stage 7 is designed for Tacoma owners who want extensive suspension adjustability without moving away from ICON's bolt-on suspension architecture.

Compared with Stage 6, Stage 7 adds:

• ICON Omega Series rear shocks

• Two-tube bypass rear shock technology

• Independently adjustable rear compression and rebound

• Up to 28 rear damping combinations

• Greater control over rear suspension behavior

• Increased tuning capability for changing terrain and loads

The front retains ICON's proven 2.5 Extended Travel CDCV coilovers with 10-position compression adjustment.

Stage 6 vs. Stage 7

Stage 6 CDCV

• 2.5 Extended Travel CDCV front coilovers

• 10-position front compression adjustment

• 2.5 CDCV rear shocks

• 10-position rear compression adjustment

• Delta Joint upper control arms

Stage 7 CDCV

• 2.5 Extended Travel CDCV front coilovers

• 10-position front compression adjustment

• 2.5 Omega Series bypass rear shocks

• Adjustable rear compression and rebound

• Up to 28 rear damping combinations

• Delta Joint upper control arms

Choose Stage 7 if you want the additional rear suspension tuning and bypass technology of ICON's Omega Series rear shocks.

Best For

• High-performance Trail Ready Tacoma builds

• Serious trail and off-road use

• Technical terrain

• Desert and faster dirt-road driving

• Long off-road trips

• Loaded adventure builds

• Drivers who frequently change vehicle loads

• Customers who want extensive suspension adjustability

• Tacoma owners wanting premium 2.5" remote reservoir suspension front and rear

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 7 CDCV

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 7 suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 7 shock package.

Both variants include a complete ICON Stage 7 front and rear suspension system.
