ICON - Stage 7 CDXS Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the next level with the ICON Stage 7 CDXS Suspension System, a premium front and rear suspension package designed for serious trail use, demanding off-road driving, and drivers who want advanced suspension tuning.

Stage 7 combines ICON's 2.5 Extended Travel CDXS front coilovers with 2.5 Omega Series adjustable bypass rear shocks. This gives you independent high-speed and low-speed compression adjustment up front, while the Omega rear shocks provide independently adjustable compression and rebound damping.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDXS

  • Extended Travel design

  • Remote reservoirs

  • Independent high-speed compression adjustment

  • Independent low-speed compression adjustment

  • 10 settings for each CDXS adjuster

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON 2.5 Omega Series Bypass Remote Reservoir Rear Shocks

  • 2.5" shock bodies

  • Remote reservoirs

  • Two-tube bypass technology

  • Independently adjustable compression and rebound damping

  • Up to 28 compression/rebound setting combinations

  • Vehicle-specific tuning

  • Rebuildable and revalveable

• ICON 1.5" Rear Add-A-Leaf Kit

  • Adds rear ride height

  • Increases rear spring capacity

  • Works with the factory rear leaf pack

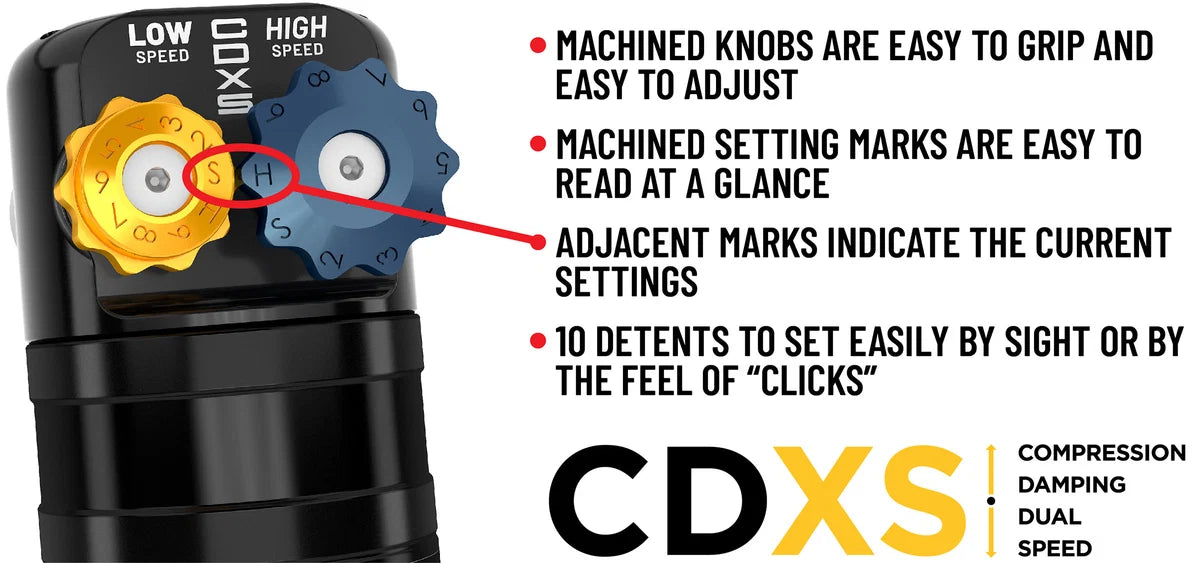

Advanced CDXS Front Adjustability

ICON's CDXS technology allows the front suspension's high-speed and low-speed compression damping to be adjusted independently.

Each adjustment provides 10 settings, giving you substantially more control than a conventional single compression adjuster.

Low-Speed Compression

Low-speed compression primarily affects slower suspension movements such as:

• Body roll

• Brake dive

• Cornering

• Weight transfer

• Gradual terrain changes

This allows you to adjust chassis control without necessarily changing how the suspension reacts to sharper impacts.

High-Speed Compression

High-speed compression primarily affects faster shock movements caused by:

• Rocks

• Potholes

• Washboard roads

• Sharp trail impacts

• Faster off-road terrain

This allows impact control to be adjusted separately from general handling characteristics.

Omega Series Adjustable Bypass Rear Shocks

Stage 7 pairs the advanced CDXS front suspension with ICON's 2.5 Omega Series bypass rear shocks.

The Omega design provides multiple damping zones along with independently adjustable compression and rebound damping.

With up to 28 compression/rebound setting combinations, the rear suspension can be tuned around terrain, vehicle weight, cargo, and driving style.

Stage 6 CDXS vs. Stage 7 CDXS

Stage 6 CDXS

• 2.5 Extended Travel CDXS front coilovers

• Independent high-speed and low-speed front compression adjustment

• 2.5 CDXS rear shocks

• Independent high-speed and low-speed rear compression adjustment

• Delta Joint upper control arms

Stage 7 CDXS

• 2.5 Extended Travel CDXS front coilovers

• Independent high-speed and low-speed front compression adjustment

• 2.5 Omega Series bypass rear shocks

• Independent rear compression and rebound adjustment

• Up to 28 rear damping combinations

• Delta Joint upper control arms

Choose Stage 7 CDXS if you want ICON's advanced CDXS front suspension combined with the additional tuning capability and bypass technology of the Omega Series rear shocks.

Choose Your Upper Control Arms

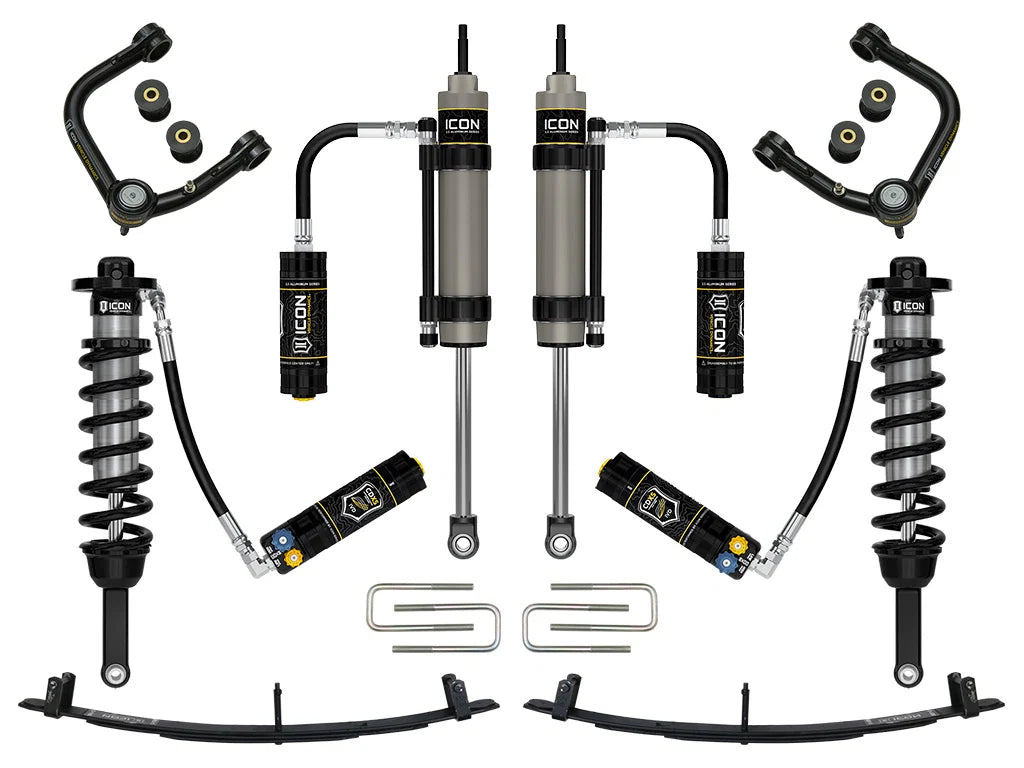

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the strength, geometry, clearance, and additional suspension travel required for the Stage 7 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

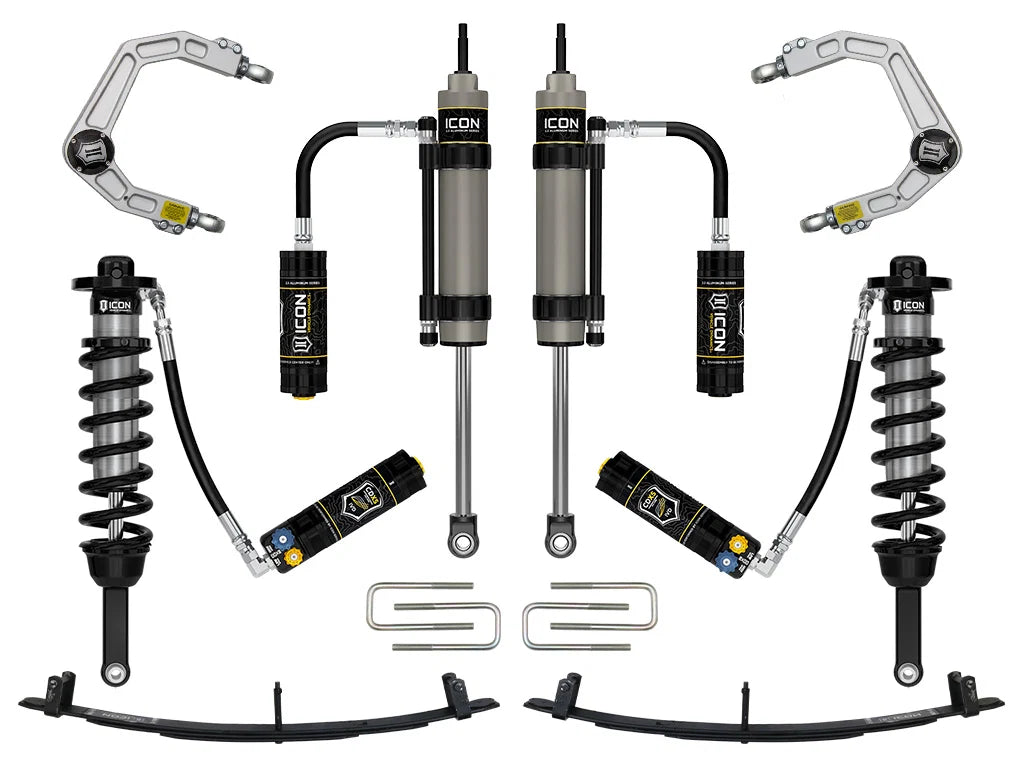

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both options are designed to work with the included Extended Travel front coilovers.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.5"

Actual ride height may vary depending on vehicle weight, installed accessories, and suspension configuration.

Why Choose Stage 7 CDXS?

Stage 7 CDXS is designed for Tacoma owners who want extensive suspension tuning capability in a complete bolt-on suspension package.

Key features include:

• 2.5 Extended Travel front coilovers

• CDXS independent high-speed and low-speed front compression adjustment

• 10 settings for each front adjuster

• ICON Delta Joint upper control arms

• 2.5 Omega Series bypass rear shocks

• Independent rear compression and rebound adjustment

• Up to 28 rear damping combinations

• Remote reservoirs front and rear

• Rear Add-A-Leaf

This combination gives you extensive control over how your Tacoma responds to different terrain and driving conditions.

Best For

• Premium Trail Ready Tacoma builds

• Serious and frequent off-road use

• Technical trails

• Desert and faster dirt-road driving

• Long off-road trips

• Drivers who frequently encounter changing terrain

• Tacoma owners who want extensive suspension adjustability

• Customers wanting premium 2.5" remote reservoir suspension front and rear

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 7 CDXS

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Lift height varies depending on vehicle weight, accessories, and configuration.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 7 CDXS suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 7 CDXS/Omega suspension package.

Both variants include a complete ICON Stage 7 CDXS front and rear suspension system.
