ICON - Stage 8 RXT Suspension Lift Kit

Transform your 2016–2023 Toyota Tacoma with the ICON Stage 8 RXT Suspension System, a complete front and rear suspension package built for serious trail use, loaded adventure builds, and drivers looking for increased rear suspension travel and load-carrying flexibility.

Stage 8 takes a different approach from the earlier ICON stages by replacing the factory rear leaf pack and Add-A-Leaf setup with ICON's complete Multi-Rate RXT rear leaf spring system. The RXT leaf packs are paired with specially designed 2.5 Remote Reservoir RXT rear shocks, giving the Tacoma substantially more rear suspension capability while retaining the factory shock mounting locations.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers

  • Extended Travel design

  • Remote reservoirs for increased oil capacity

  • Improved heat management during demanding use

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and serviceable design

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Corrected suspension geometry for lifted applications

  • Increased suspension clearance

  • Designed to work with ICON Extended Travel coilovers

  • Heavy-duty, greaseable Delta Joint design

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Complete replacement for the factory rear leaf packs

  • 3 user-configurable spring-rate settings

  • Includes additional leaves for spring-rate configuration

  • Designed for both unloaded and weight-equipped Tacomas

  • Increased rear droop and suspension travel

• (2) ICON 2.5 RXT Remote Reservoir Rear Shocks

  • RXT-specific design

  • 2.5" aluminum shock bodies

  • 7/8" shafts

  • Large remote reservoirs for improved heat management

  • Unique side-mounted lower eyelet

  • Designed to provide increased travel while retaining factory mounting locations

• ICON 8" Rear U-Bolt Kit

Multi-Rate RXT Rear Leaf Springs

The biggest difference with Stage 8 is ICON's RXT Multi-Rate rear suspension system.

Instead of simply adding a leaf to the factory spring pack, Stage 8 replaces the rear leaf springs with complete ICON RXT leaf packs.

The included additional leaf allows the spring pack to be configured for three different spring rates, making it easier to match the suspension to how your Tacoma is actually equipped.

This is especially beneficial for trucks carrying additional constant weight from equipment such as:

• Bed racks

• Rooftop tents

• Aftermarket bumpers

• Spare tires

• Recovery equipment

• Camping gear

• Tools and trail equipment

• Additional cargo

The additional leaf can be exchanged or added to increase spring rate by approximately 10–20%, depending on the desired configuration.

RXT-Specific 2.5 Rear Shocks

Stage 8 uses specially designed 2.5 Aluminum Series RXT rear shocks rather than conventional Tacoma rear shocks.

A unique side-mounted lower eyelet allows the shock to have a shorter collapsed length and longer extended length while still utilizing the factory mounting location.

When installed as part of the complete ICON system, this design can provide up to approximately 20% additional rear shock travel.

Large remote reservoirs also increase oil capacity and help manage heat during prolonged or aggressive off-road driving.

Choose Your Upper Control Arms

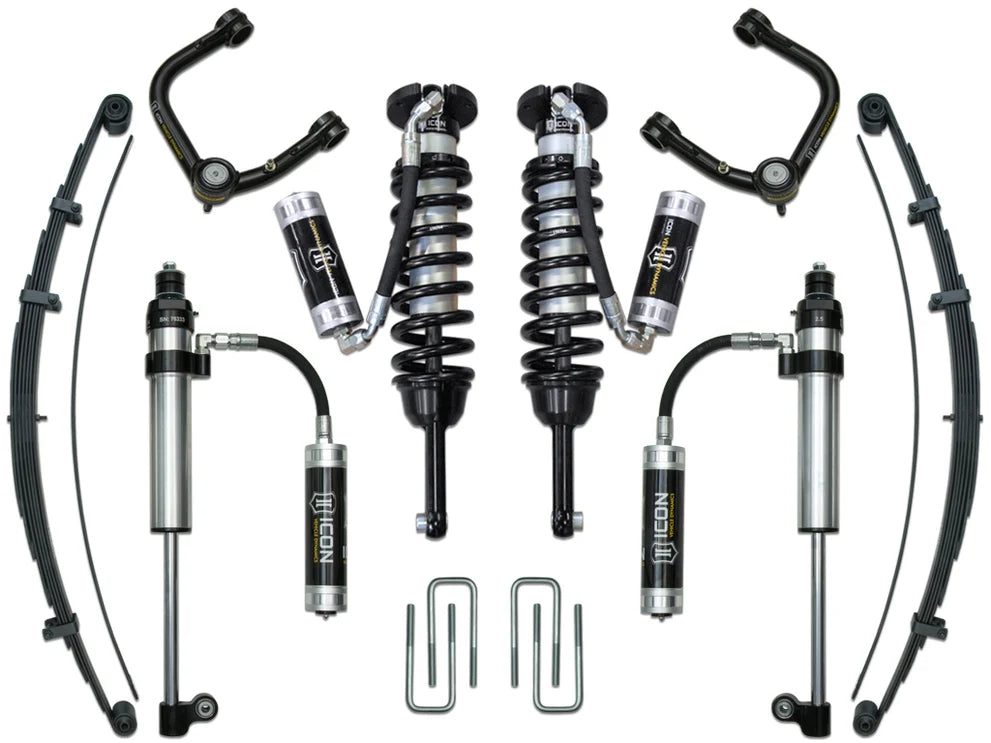

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the geometry, strength, clearance, and additional suspension travel required for the Stage 8 system at the lower package price.

Best for: Customers focused on suspension performance and overall value.

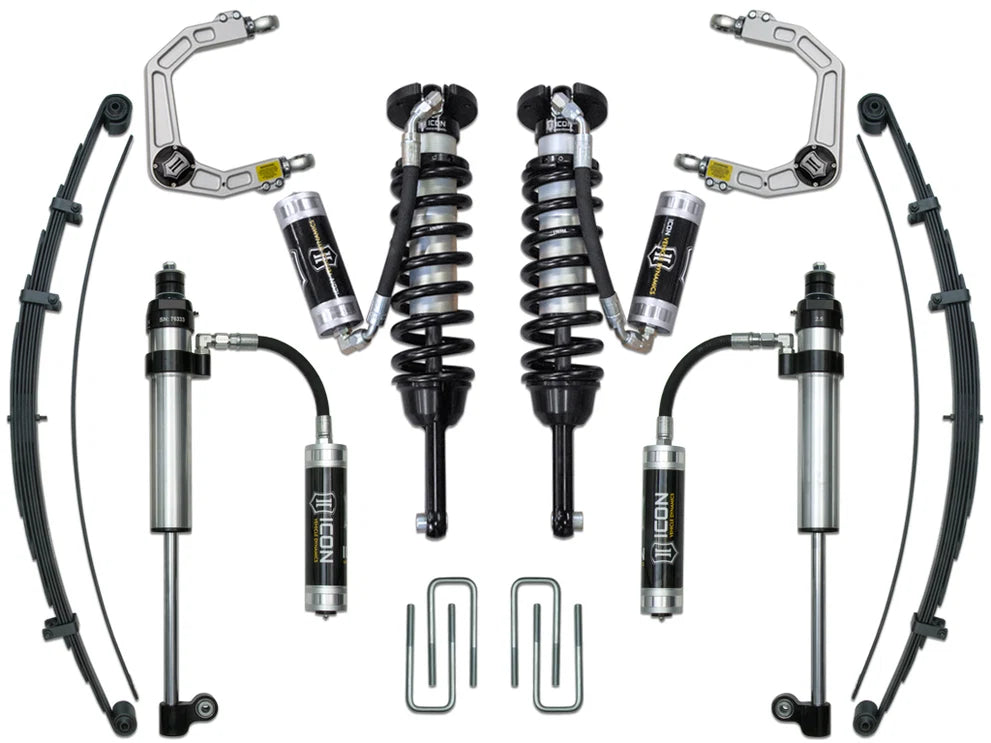

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA provides increased on-vehicle caster and camber adjustment along with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both versions use ICON's heavy-duty Delta Joint and are designed to work with the included Extended Travel front coilovers.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.875–2.625"

Rear lift varies depending on RXT leaf-pack configuration, vehicle weight, and installed accessories.

2017–2023 Tacoma TRD Pro

• Front: Approximately 0–1.25" over factory ride height

• Rear: Approximately 1.375–2.125" over factory ride height

Why Choose Stage 8 RXT?

Stage 8 is designed for Tacoma owners who want to move beyond the factory rear leaf pack and build a more capable complete rear suspension system.

Key upgrades include:

• Complete Multi-Rate RXT rear leaf packs

• Three configurable rear spring rates

• RXT-specific 2.5 remote reservoir rear shocks

• Increased rear suspension travel

• Improved support for additional vehicle weight

• Extended Travel 2.5 remote reservoir front coilovers

• ICON Delta Joint upper control arms

Stage 7 vs. Stage 8

Stage 7

• 2.5 Extended Travel CDCV front coilovers

• Delta Joint upper control arms

• Omega Series adjustable bypass rear shocks

• Factory rear leaf pack with Add-A-Leaf

• Focus on shock damping adjustability

Stage 8 RXT

• 2.5 Extended Travel remote reservoir front coilovers

• Delta Joint upper control arms

• Complete Multi-Rate RXT rear leaf packs

• RXT-specific 2.5 remote reservoir rear shocks

• Up to approximately 20% increased rear shock travel

• Focus on rear suspension travel, spring configuration, and load support

Stage 8 isn't simply Stage 7 with another shock upgrade. Choose Stage 8 RXT when increased rear travel and a complete configurable rear leaf-spring system are more important for your Tacoma build.

Best For

• Trail Ready Tacoma builds

• Serious trail and off-road use

• Loaded adventure and overland builds

• Tacomas equipped with bed racks or rooftop tents

• Trucks carrying constant additional weight

• Technical terrain

• Desert and faster dirt-road driving

• Drivers wanting increased rear suspension travel

• Customers wanting a complete rear leaf-spring upgrade

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 8 RXT



Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Actual rear lift depends on RXT spring configuration and vehicle weight.

• ICON's advertised wheel travel requires installation of the complete ICON system.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 8 RXT suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 8 RXT front and rear suspension package.

Both variants include a complete ICON Stage 8 RXT front and rear suspension system.
