ICON - Stage 9 RXT CDCV Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to the next level with the ICON Stage 9 RXT CDCV Suspension System, a complete front and rear suspension package designed for serious trail use, loaded adventure builds, and drivers who want increased rear suspension travel combined with adjustable damping.

Stage 9 builds on the Stage 8 RXT platform by adding ICON CDCV compression adjustment to both the front and rear 2.5" remote reservoir shocks. This gives you the complete Multi-Rate RXT rear suspension system plus the ability to fine-tune shock performance for changing terrain, vehicle loads, and driving conditions.

Choose between Tubular or Billet Delta Joint upper control arms to match your build and budget.

What's Included

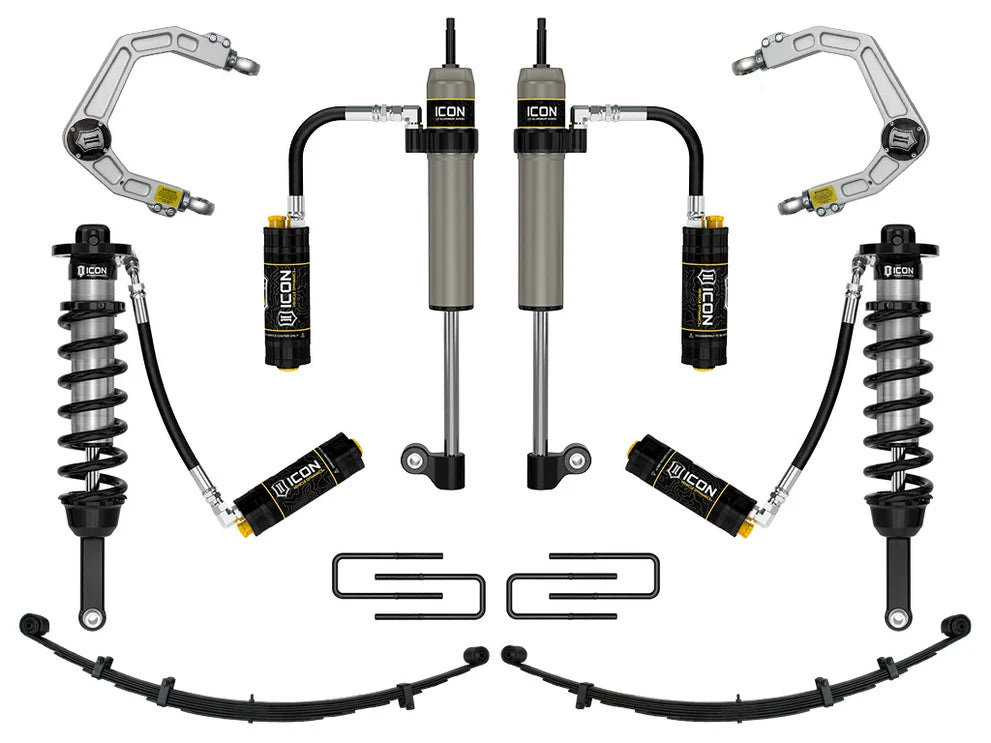

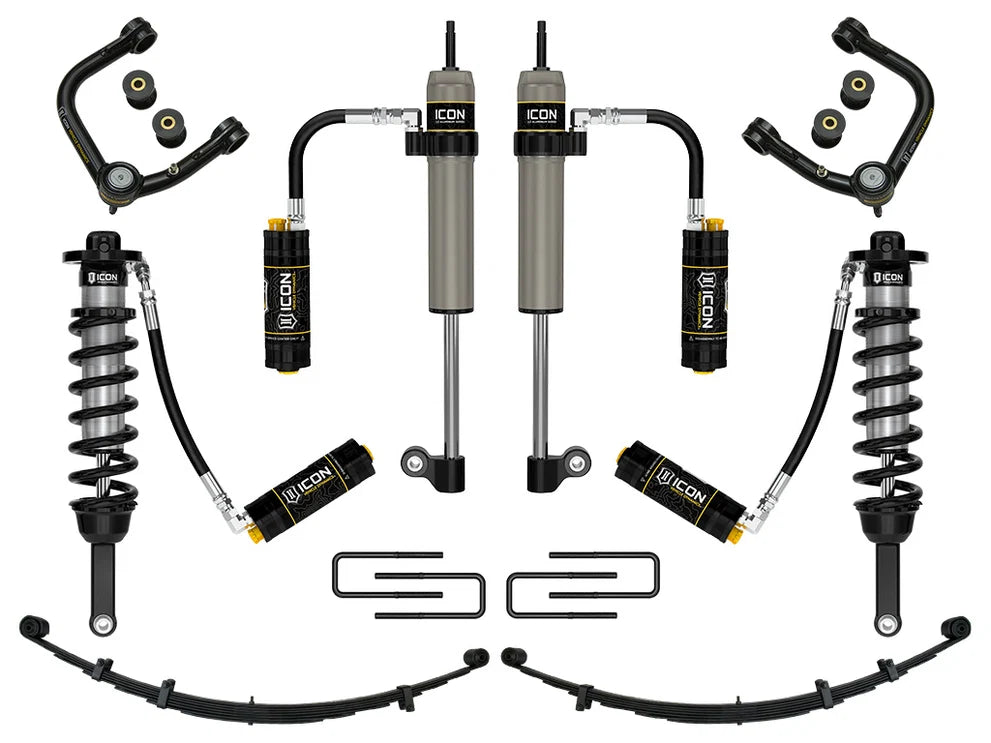

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDCV

  • Extended Travel design

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Allows increased suspension travel compared with factory upper control arms

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Complete replacement for the factory rear leaf packs

  • Three configurable spring-rate settings

  • Designed to accommodate different vehicle weights and constant loads

  • Increased rear suspension travel compared with the factory configuration

• (2) ICON 2.5 RXT Remote Reservoir Rear Shocks with CDCV

  • RXT-specific shock design

  • 2.5" aluminum shock bodies

  • Remote reservoirs

  • 10-position compression damping adjustment

  • Designed for increased rear suspension travel

  • Rebuildable and serviceable

• ICON 8" Rear U-Bolt Kit

10-Position CDCV Adjustability — Front & Rear

The major advantage of Stage 9 is the addition of ICON Compression Damping Control Valves at all four shocks.

The CDCV adjusters provide 10 compression settings, allowing you to quickly change suspension damping without disassembling or revalving the shocks.

Run softer settings when additional compliance is desired, then increase compression damping when additional suspension control is needed for heavier loads, rough terrain, or more aggressive off-road driving.

Because Stage 9 provides CDCV adjustment at both the front and rear, you can better balance the suspension around your Tacoma's specific configuration and use.

Multi-Rate RXT Rear Leaf Springs

Stage 9 replaces the factory rear leaf packs with ICON's complete Multi-Rate RXT leaf spring system.

The RXT leaf packs can be configured in three different spring-rate settings, allowing the rear suspension to better match your Tacoma's actual weight and equipment.

This is especially beneficial for trucks carrying additional constant weight from equipment such as:

• Bed racks

• Rooftop tents

• Aftermarket bumpers

• Spare tires

• Recovery equipment

• Camping gear

• Tools and trail equipment

• Additional cargo

RXT-Specific 2.5 CDCV Rear Shocks

The included rear shocks are designed specifically around ICON's RXT suspension system.

Their RXT-specific geometry allows increased shock travel while retaining the factory shock mounting locations.

When installed as part of the complete intended ICON system, the RXT setup can provide up to approximately 20% additional rear shock travel compared with the factory configuration.

Stage 9 adds CDCV to these shocks, giving you the increased travel of RXT combined with 10-position compression damping adjustment.

Choose Your Upper Control Arms

Tubular Delta Joint

ICON's Tubular Delta Joint UCA provides the geometry, strength, and additional suspension travel required for the Stage 9 system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

Billet Delta Joint

ICON's premium CNC-machined billet aluminum UCA combines the performance benefits of the Delta Joint with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Both options are designed to work with the included Extended Travel front coilovers.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.875–2.625"

Rear lift varies depending on RXT leaf-pack configuration, vehicle weight, and installed accessories.

Actual ride height may vary depending on vehicle configuration.

Why Choose Stage 9 RXT CDCV?

Stage 9 is designed for Tacoma owners who want the complete RXT rear suspension system without giving up shock adjustability.

Compared with Stage 8, Stage 9 adds:

• 10-position front CDCV adjustment

• 10-position rear CDCV adjustment

• Greater control over suspension feel

• Easier tuning for changing vehicle loads

• Easier tuning for different terrain and driving conditions

You still retain the major RXT benefits:

• Complete Multi-Rate rear leaf packs

• Three configurable spring rates

• RXT-specific 2.5 rear shocks

• Increased rear suspension travel

• Improved support for modified and loaded Tacomas

Stage 8 vs. Stage 9

Stage 8 RXT

• 2.5 Extended Travel remote reservoir front coilovers

• Multi-Rate RXT rear leaf packs

• 2.5 RXT remote reservoir rear shocks

• Fixed vehicle-specific shock damping

Stage 9 RXT CDCV

• 2.5 Extended Travel remote reservoir front coilovers

• 10-position front CDCV adjustment

• Multi-Rate RXT rear leaf packs

• 2.5 RXT remote reservoir rear shocks

• 10-position rear CDCV adjustment

Choose Stage 9 if you want the increased travel and configurable spring rates of the RXT system combined with adjustable compression damping at all four shocks.

Best For

• High-performance Trail Ready Tacoma builds

• Serious trail and off-road use

• Loaded adventure and overland builds

• Technical terrain

• Desert and faster dirt-road driving

• Tacomas carrying constant additional weight

• Drivers who frequently change vehicle loads

• Customers wanting increased rear suspension travel

• Drivers who want adjustable damping front and rear

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 9 RXT CDCV

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Rear lift height varies based on RXT spring configuration, vehicle weight, and installed accessories.

• ICON's advertised increased rear shock travel requires installation of the complete intended suspension system.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint if you want the complete Stage 9 RXT CDCV suspension performance at the lower entry price.

Choose Billet Delta Joint if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 9 RXT CDCV shock and leaf-spring package.

Both variants include a complete ICON Stage 9 RXT CDCV front and rear suspension system.
