ICON - Stage 9 RXT CDXS Suspension Lift Kit

Take your 2016–2023 Toyota Tacoma to a higher level of suspension performance with the ICON Stage 9 RXT CDXS Suspension System. Designed for serious trail use, loaded adventure builds, and demanding off-road driving, Stage 9 combines ICON's advanced CDXS adjustable shocks with the complete Multi-Rate RXT rear suspension system.

With independent high-speed and low-speed compression adjustment at both the front and rear shocks, Stage 9 CDXS gives you extensive control over how your Tacoma responds to different terrain, vehicle loads, and driving conditions.

Choose between Tubular or Billet Delta Joint Pro upper control arms to match your build and budget.

What's Included

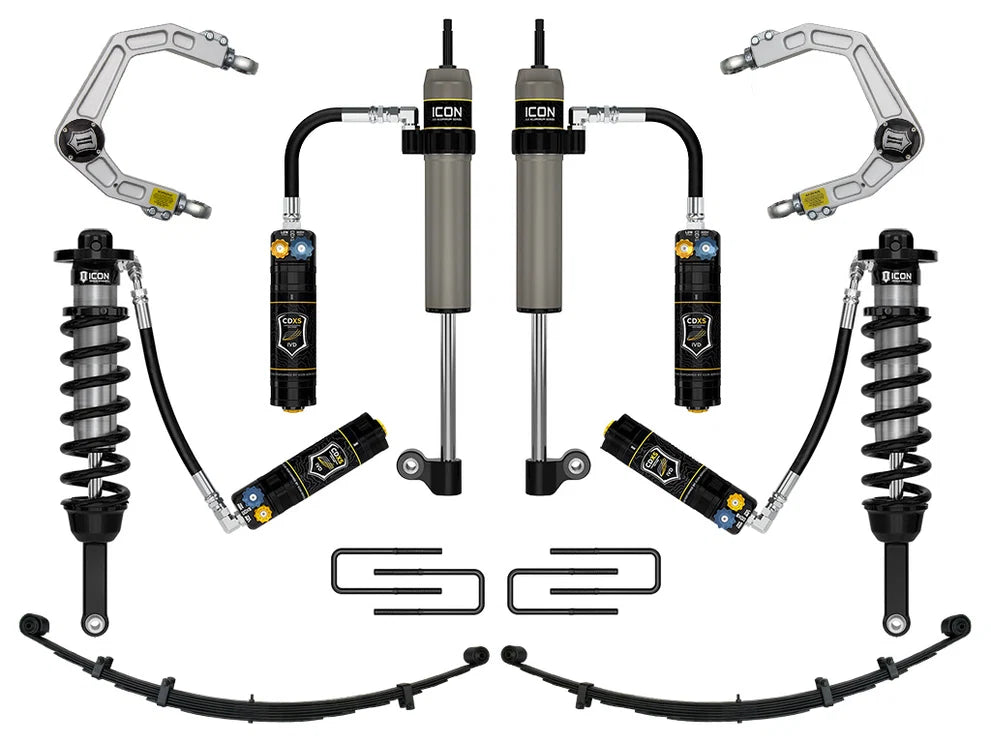

• (2) ICON 2.5 Extended Travel Remote Reservoir Front Coilovers with CDXS

  • Extended Travel design

  • Remote reservoirs

  • Independent high-speed compression adjustment

  • Independent low-speed compression adjustment

  • 10 settings for each CDXS adjuster

  • Adjustable front ride height

  • Vehicle-specific valving

  • Rebuildable and revalveable

• ICON Delta Joint Pro Upper Control Arms

  • Choice of Tubular or Billet

  • Designed for lifted Tacoma applications

  • Improves suspension geometry and alignment capability

  • Designed to maximize available front suspension travel

• (2) ICON Multi-Rate RXT Rear Leaf Packs

  • Complete replacement for the factory rear leaf springs

  • Three configurable spring-rate settings

  • Allows the rear suspension to be configured around vehicle weight and constant load

  • Designed to increase rear suspension travel and capability

• (2) ICON 2.5 RXT Remote Reservoir Rear Shocks with CDXS

  • RXT-specific Extended Travel design

  • 2.5" shock bodies

  • Remote reservoirs

  • Independent high-speed compression adjustment

  • Independent low-speed compression adjustment

  • 10 settings for each CDXS adjuster

  • Designed specifically around the RXT rear suspension

• ICON 8" Rear U-Bolt Kit

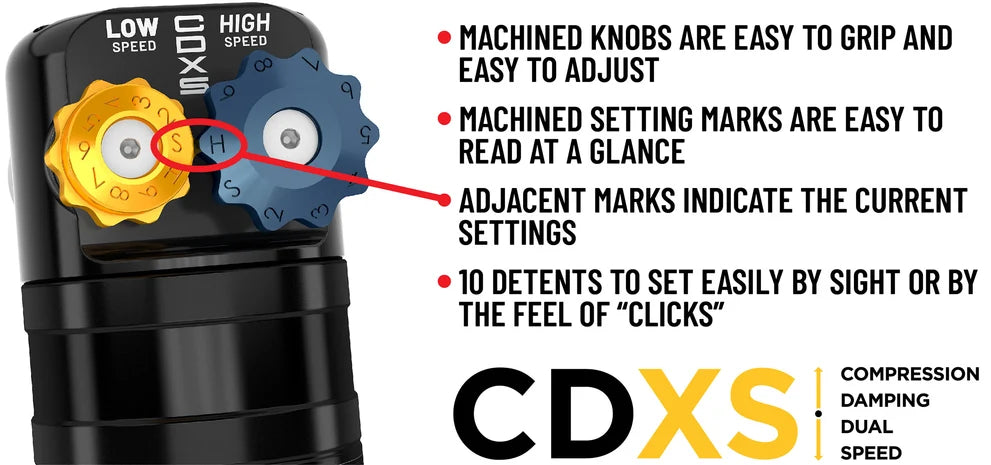

Advanced CDXS Adjustability — Front & Rear

The major advantage of Stage 9 CDXS is the ability to independently tune high-speed and low-speed compression damping at all four shocks.

Each CDXS adjuster provides 10 settings, giving you considerably more control than a traditional single compression adjustment.

Low-Speed Compression

Low-speed compression primarily controls slower suspension movements such as:

• Body roll

• Brake dive

• Cornering

• Weight transfer

• Gradual terrain changes

This allows you to increase chassis control without necessarily making the suspension excessively firm over sharp impacts.

High-Speed Compression

High-speed compression primarily affects faster shock movements caused by:

• Rocks

• Potholes

• Washboard roads

• Sharp trail impacts

• Faster off-road terrain

This allows impact absorption to be tuned separately from general handling characteristics.

Multi-Rate RXT Rear Leaf Springs

Stage 9 replaces the factory rear leaf packs with ICON's complete Multi-Rate RXT leaf spring system.

The RXT leaf packs can be configured in three different spring-rate settings, allowing the suspension to better match your Tacoma's actual weight and equipment.

This is especially beneficial for trucks equipped with additional constant weight from:

• Bed racks

• Rooftop tents

• Aftermarket bumpers

• Spare tires

• Recovery equipment

• Camping gear

• Tools and trail equipment

• Additional cargo

Maximum Rear Travel RXT Setup

Stage 9 uses ICON's RXT-specific Extended Travel rear shocks designed to work with the Multi-Rate RXT leaf springs.

The RXT shock design allows increased rear suspension travel while retaining the factory shock mounting locations.

When installed as part of the complete intended ICON suspension system, the RXT configuration can provide up to approximately 20% additional rear shock travel compared with the factory setup.

This additional travel helps maintain tire contact and suspension control over rough and uneven terrain.

Stage 9 CDCV vs. Stage 9 CDXS

Stage 9 RXT CDCV

• RXT Multi-Rate leaf springs

• 2.5 Extended Travel front and rear shocks

• Remote reservoirs

• Single 10-position compression adjustment

Stage 9 RXT CDXS

• RXT Multi-Rate leaf springs

• 2.5 Extended Travel front and rear shocks

• Remote reservoirs

• Independent low-speed compression adjustment

• Independent high-speed compression adjustment

• 10 settings for each adjuster

Choose CDXS if you want greater control over how your suspension handles chassis movement and sharp impacts independently.

Choose Your Upper Control Arms

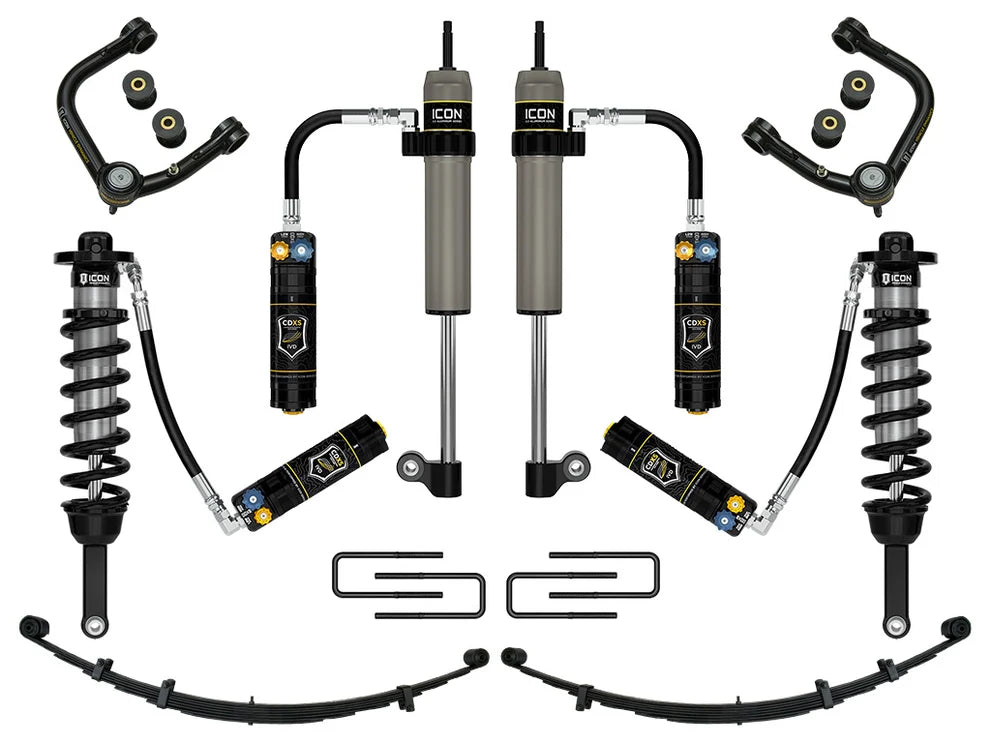

Tubular Delta Joint Pro

ICON's Tubular Delta Joint Pro UCA provides the geometry, strength, clearance, and additional suspension travel required for the Stage 9 CDXS system while keeping the overall package price lower.

Best for: Customers focused on maximum suspension performance and value.

Billet Delta Joint Pro

ICON's premium CNC-machined billet aluminum Delta Joint Pro UCA combines the performance benefits required by the Extended Travel suspension with premium construction and appearance.

Best for: Customers wanting ICON's premium UCA construction and finish.

Lift Height

2016–2023 Tacoma

• Front: Adjustable up to approximately 2.75"

• Rear: Approximately 1.875–2.625"

Rear lift varies depending on RXT leaf-pack configuration, vehicle weight, and installed accessories.

Actual ride height may vary depending on vehicle configuration.

Why Choose Stage 9 RXT CDXS?

Stage 9 CDXS is designed for Tacoma owners who want both maximum rear suspension travel and advanced shock tuning capability.

Key features include:

• 2.5 Extended Travel CDXS front coilovers

• Independent high-speed and low-speed compression adjustment

• 10 settings per CDXS adjuster

• Delta Joint Pro upper control arms

• Complete Multi-Rate RXT rear leaf packs

• Three configurable rear spring rates

• RXT-specific 2.5 CDXS rear shocks

• Increased rear suspension travel

• Remote reservoirs front and rear

Best For

• Premium Trail Ready Tacoma builds

• Serious and frequent off-road use

• Technical trails

• Desert and faster dirt-road driving

• Loaded adventure and overland builds

• Tacomas carrying constant additional weight

• Drivers wanting increased rear suspension travel

• Customers who want advanced suspension tuning

• Drivers who frequently change terrain or vehicle loads

Fitment

Vehicle: Toyota Tacoma
Years: 2016–2023
System: ICON Stage 9 RXT CDXS

Important Fitment Notes

• Does not fit 2WD 5-lug Tacoma models.

• Rear lift height varies based on RXT spring configuration, vehicle weight, and installed accessories.

• ICON's advertised increased rear shock travel requires installation of the complete intended suspension system.

• Larger tires may require trimming and/or additional modifications depending on tire size, wheel offset, and backspacing.

• Professional alignment is recommended after installation.

• Vehicles equipped with advanced driver-assistance systems may require recalibration after suspension installation.

Which Version Should You Choose?

Choose Tubular Delta Joint Pro if you want the complete Stage 9 RXT CDXS suspension performance at the lower entry price.

Choose Billet Delta Joint Pro if you want ICON's premium CNC-machined billet aluminum upper control arms while retaining the same Stage 9 RXT CDXS suspension package.

Both variants include the complete Stage 9 RXT CDXS front and rear suspension system.
