Old Man Emu - BP-51 Lift Kit – Toyota Tacoma 2005–2023

Old Man Emu BP-51 Overland Suspension Lift Kit

Upgrade your Tacoma with one of Old Man Emu’s most advanced suspension systems. The OME BP-51 Suspension Lift Kit combines premium remote-reservoir shocks with position-sensitive internal bypass technology to deliver excellent ride comfort, control, and performance both on and off the road.

Designed for overlanding, camping, daily driving, and loaded adventure builds, the BP-51 allows you to independently adjust compression and rebound damping so you can fine-tune the suspension for your vehicle, load, terrain, and driving preference.

Why Choose OME BP-51?

• Approximately 2" front lift
• Premium BP-51 internal bypass shocks
• Remote reservoir design
• Independent compression and rebound adjustment
• 10-position compression adjustment
• 10-position rebound adjustment
• Position-sensitive internal bypass technology
• Large aluminum shock bodies for excellent heat dissipation
• Vehicle-specific tuning
• Excellent on-road ride quality and off-road control
• Multiple rear suspension/load configurations
• Optional Old Man Emu Upper Control Arms
• Designed and tested specifically for the Toyota Tacoma

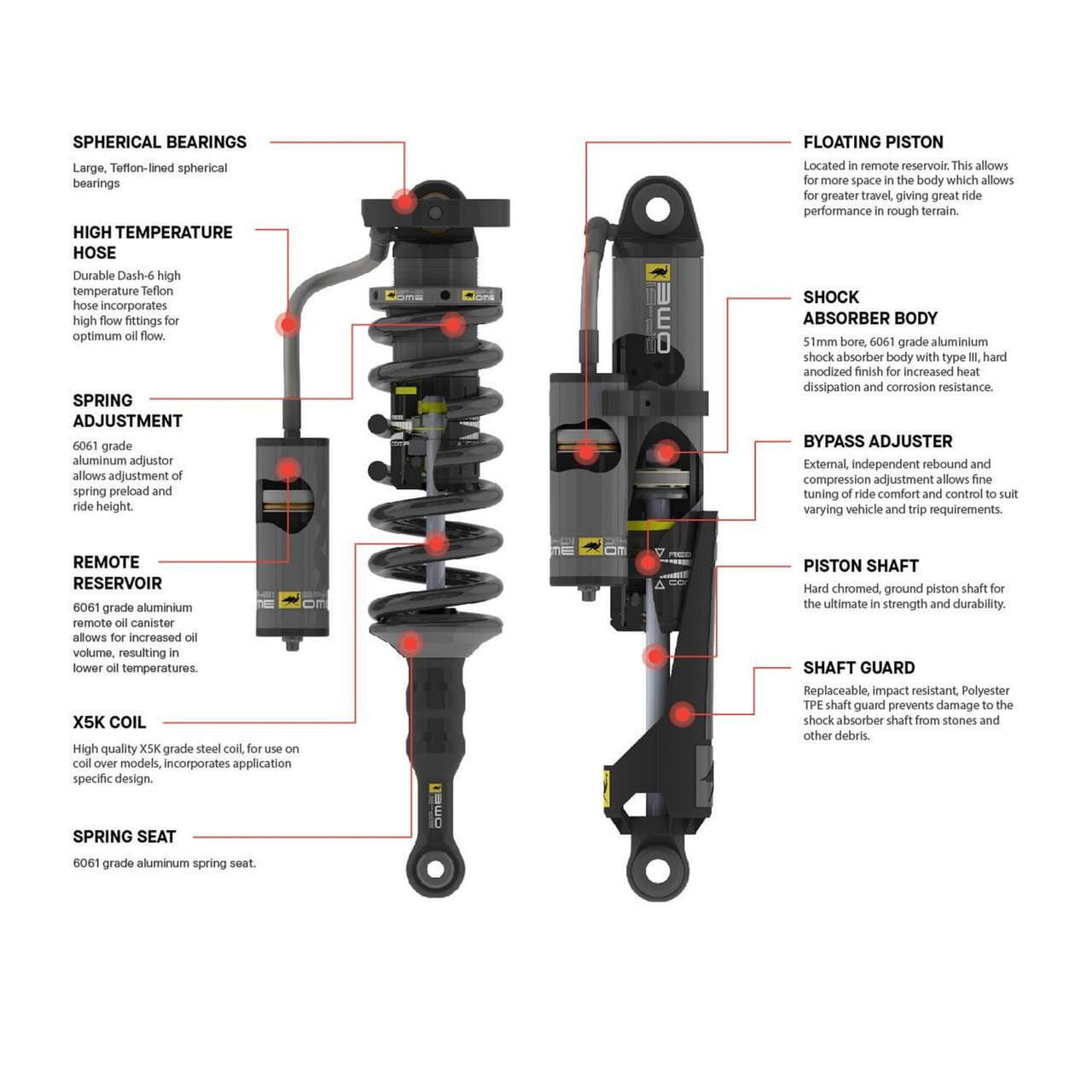

BP-51 Internal Bypass Technology

BP-51 stands for Bypass 51mm, referring to the shock's 51mm bore and position-sensitive internal bypass design.

Unlike a conventional shock that provides relatively consistent damping throughout its travel, BP-51 uses bypass zones to vary damping depending on where the shock is in its stroke.

This provides a comfortable and controlled ride through normal suspension movement while progressively increasing damping as the suspension approaches the ends of its travel.

The result is excellent control over rough terrain without sacrificing everyday ride quality.

Adjustable Compression & Rebound

One of the biggest advantages of BP-51 is the ability to independently tune both compression and rebound damping.

Compression Adjustment controls how quickly the suspension compresses when encountering bumps, dips, and terrain.

Rebound Adjustment controls how quickly the suspension extends after being compressed.

With multiple adjustment positions available, you can tune the suspension around your Tacoma's setup and how you use the truck.

Front Suspension

All configurations include the premium BP-51 front suspension system.

Front Setup:

• Approximately 2" front lift
• Designed for 0–330 lbs of additional front load
• BP-51 front coilovers
• Remote reservoirs
• Adjustable compression and rebound damping

This broad front-load range makes the system suitable for everything from relatively stock Tacomas to overland builds equipped with additional front-end accessories such as bumpers, winches, skid plates, and recovery equipment.

Choose Your Rear Suspension

Select the rear configuration that best matches how your Tacoma is built and the amount of constant weight it carries.

Stock Rear Height / Stock Load

Ideal for customers who want the BP-51 shock upgrade and approximately 2" of front lift while retaining the factory rear suspension height.

This configuration does not include replacement rear leaf springs.

Best for: Daily-driven Tacomas and lighter builds that do not require additional rear lift or load capacity.

2" Rear Lift / Standard Load

Adds OME rear leaf springs and approximately 2" of rear lift for a complete front-and-rear suspension upgrade.

Best for: Daily drivers, camping setups, moderate overland builds, and Tacomas carrying lighter constant accessory loads.

2" Rear Lift / 660 lb Constant Load

Designed for heavier Tacoma builds carrying approximately 660 lbs of constant additional rear weight.

This configuration uses heavy-load OME rear leaf springs to properly support permanently installed equipment.

Best for trucks equipped with:

• Campers
• Drawer systems
• Bed racks
• Rear bumpers
• Recovery equipment
• Tools
• Camping equipment
• Other permanently installed overland accessories

Important: The 660 lb rating refers to constant additional weight, not occasional cargo. Do not select the heavy-load springs simply because you occasionally carry heavy items.

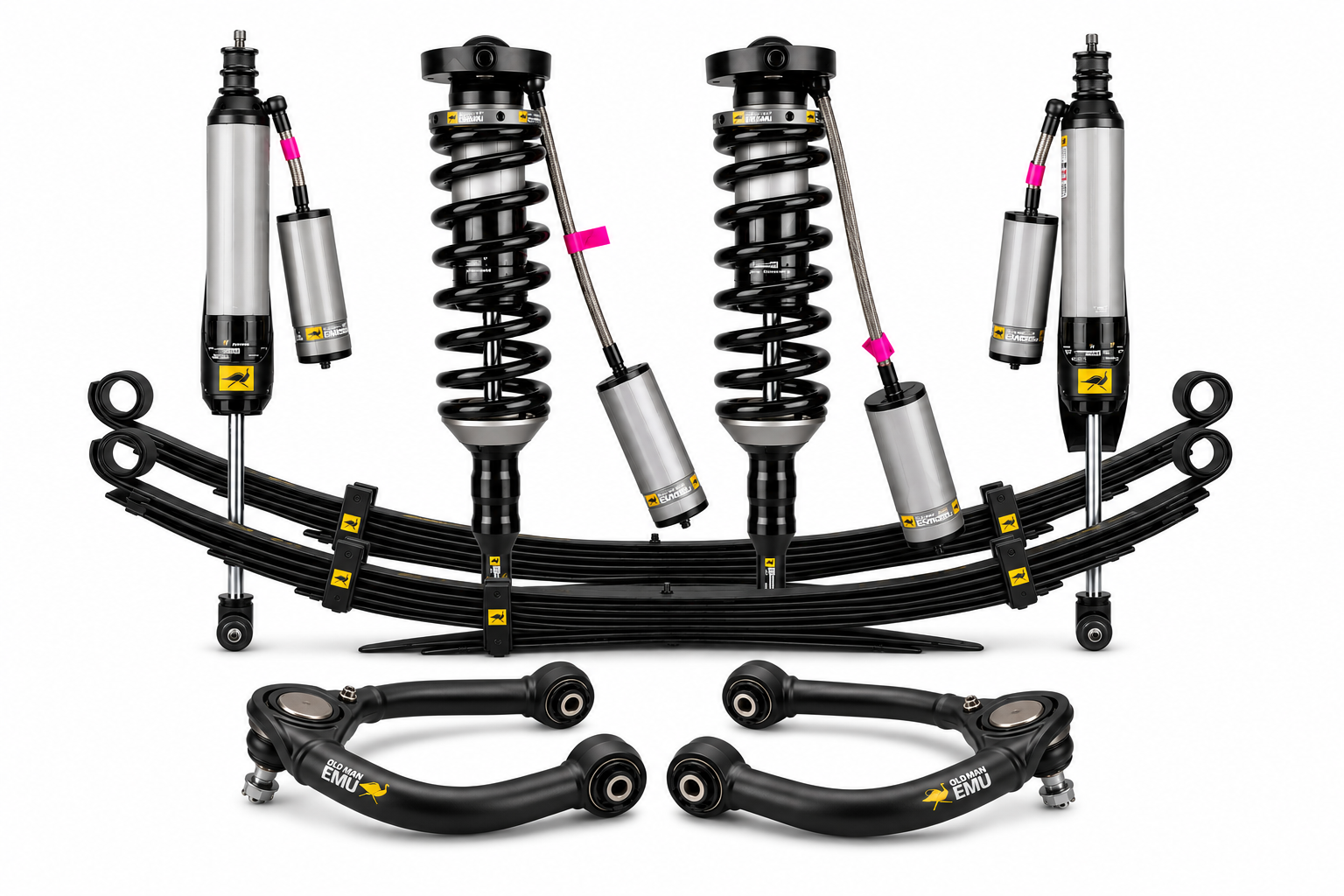

Optional OME Upper Control Arms

Complete your BP-51 suspension system with optional Old Man Emu Upper Control Arms (UCA0005).

Lifting the front suspension changes factory suspension geometry. OME UCAs are engineered specifically for lifted applications and help provide improved alignment geometry while maintaining proper suspension operation.

Choose:

• Factory Upper Control Arms – Retains your existing factory UCAs
• OME Upper Control Arms – Adds a pair of OME UCA0005 upper control arms

For customers building a complete overland suspension system, the OME UCA option is recommended.

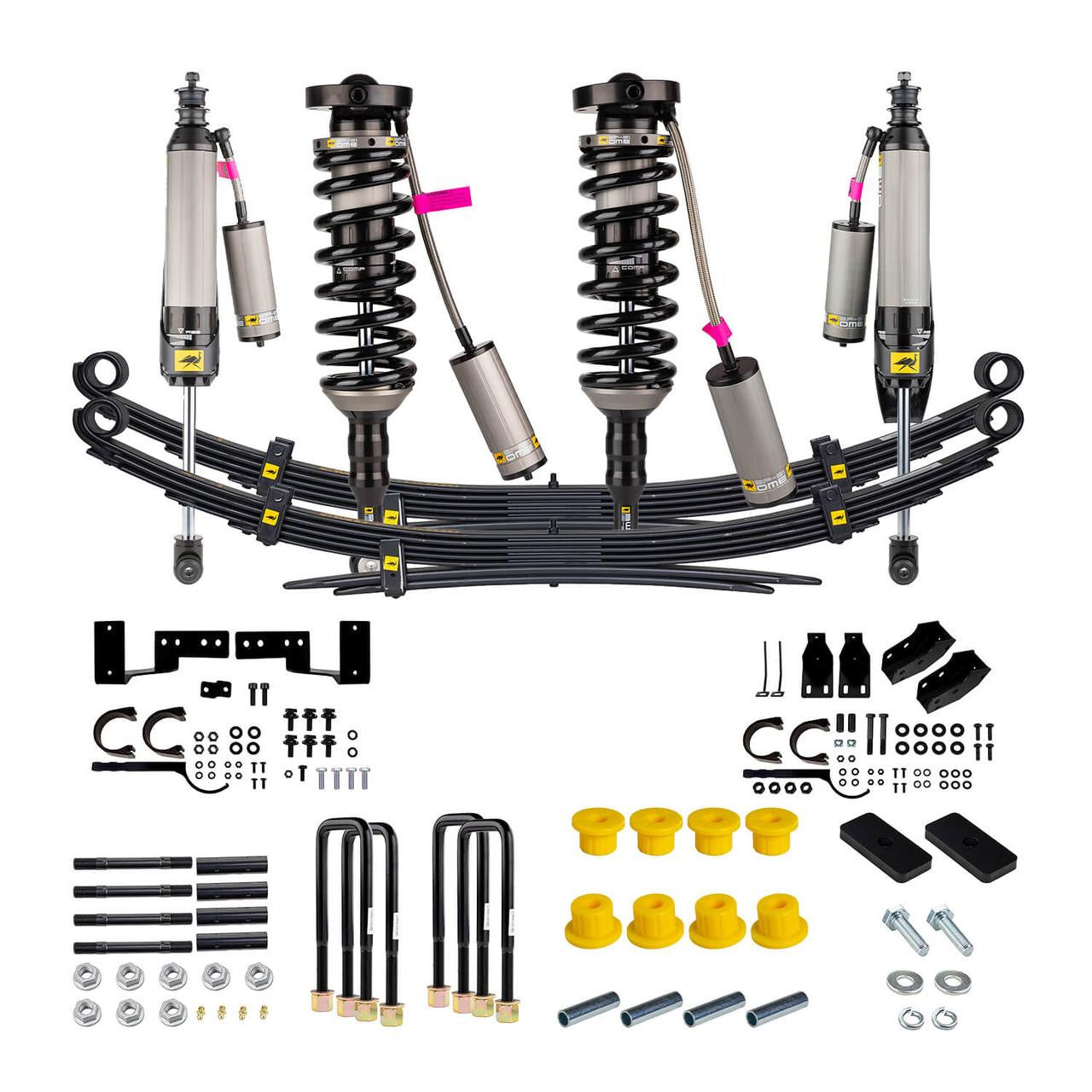

What's Included?

Kit contents vary depending on the rear suspension and UCA configuration selected.

All configurations include the core BP-51 front and rear shock system.

Depending on your selected configuration, the kit may also include:

• OME rear leaf springs
• Rear spring bushings
• U-bolts and hardware
• Greasable spring pins
• Rear driveshaft spacer
• OME UCA0005 Upper Control Arms (when selected)

Built for Overlanding

BP-51 is an excellent choice for Tacoma owners who need one suspension system to handle multiple jobs.

On the highway, the position-sensitive damping provides a controlled and comfortable ride. When the terrain becomes rough, the internal bypass system and remote reservoirs provide the additional damping control and heat management needed for extended off-road travel.

The ability to adjust compression and rebound also allows the suspension to be tuned as your build evolves.

Vehicle Fitment

Vehicle: Toyota Tacoma
Model Years: 2005–2023
Front Lift: Approximately 2"
Front Load Range: 0–330 lbs additional load
Rear Lift: 0" or approximately 2", depending on configuration
Rear Load: Stock/standard or 660 lb constant load, depending on configuration

ARB / OME Kit Numbers:
1203K – 2" Front / Stock Rear Height
1204K – 2" Front / 2" Rear Standard Load
1205K – 2" Front / 2" Rear 660 lb Constant Load

Optional UCA: UCA0005

Ideal For

Overlanding • Camping • Daily Driving • Long-Distance Touring • Loaded Builds • Rough Roads • Trail Driving

For Tacoma owners looking for a premium suspension that combines ride comfort, adjustability, load-carrying capability, and serious off-road performance, the Old Man Emu BP-51 is one of the most complete overland suspension systems available.

Installation Note: Professional installation and a complete alignment are recommended after installation. Select your rear spring configuration based on the actual constant weight carried by your Tacoma.
